8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland www.advancedsensors.co.uk
Page 72 of 93
OIW-HBO-0002-EX-005
OIW EX SERIES-SIDE STREAM
OPERATION MANUAL
Rev. 004 MAY 2015

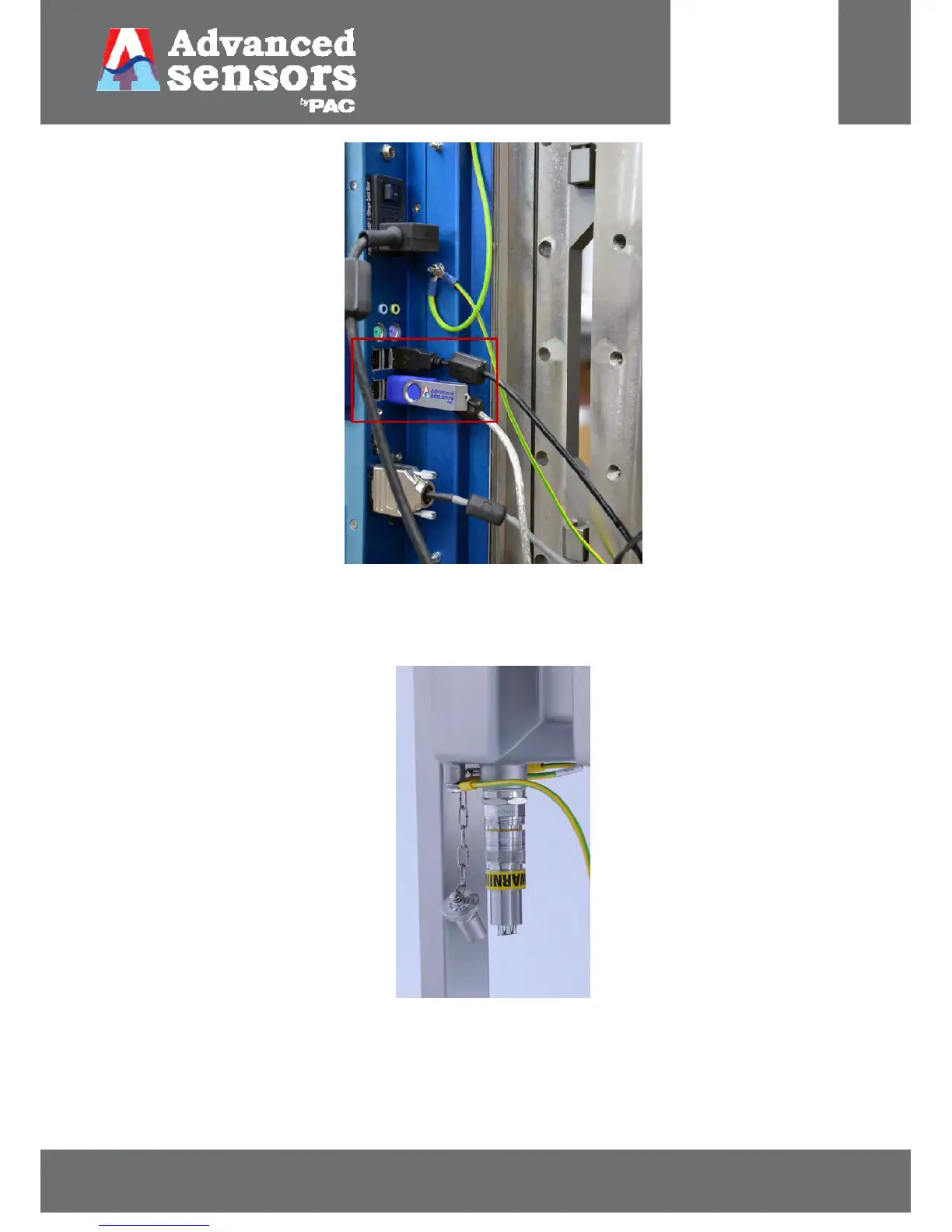

Figure 81: USB drive inserted in spare USB port located on the inside of the analyzer.
Conversely if an EX USB port is fitted externally, as shown below in Figure 82, then remove the dust cap and connect the
supplied keyboard. An external USB can be used with the supplied keyboard.
Figure 82: Externally fitted EX d rated USB connector.
