8.

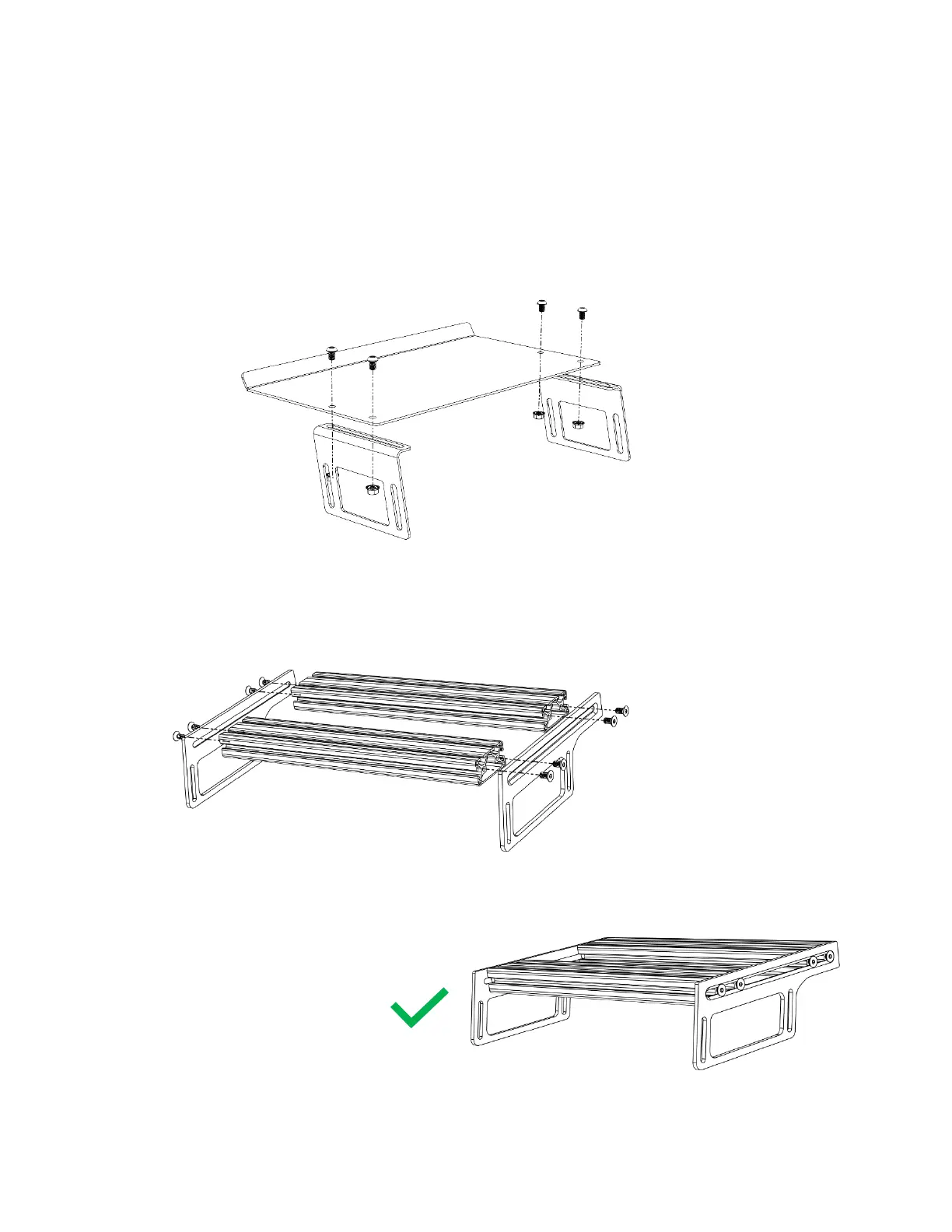

Assemble the heel rest using 4x M8x12 button head screws and 4x M8
locknuts. Be mindful of the width of the assembly. Tighten snug, but not
completely.
(PS: skip the heel rest with G29, thrustmaster and fanatec pedals, they’ve got one
integrated to their design)
9.
Assemble the pedal tray with the 2 pedal tray side brackets, 2x 3x18.5”
extrusions and 8x M8x16 flat head screws.
