10.

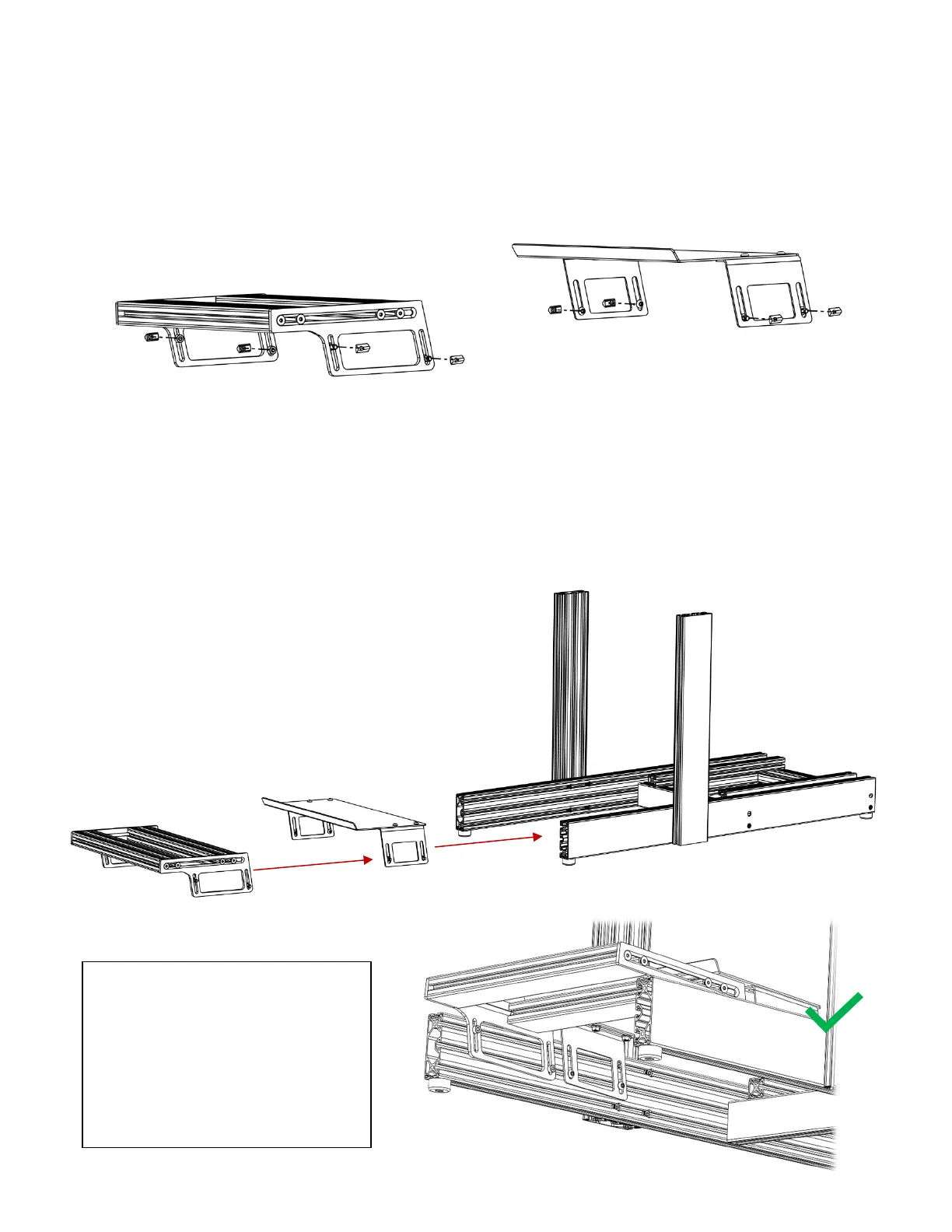

Place 4X M8x16 socket screws and 4X M8 t-nuts to the vertical slots on the
heel rest. Tighten no more than a turn. Do the same for the pedal tray.
11.
Slide the t-nuts of the heel rest through the inside slot of the 50” extrusion,
followed by the pedal tray. Tighten it snug for the moment, but only fully tighten
after positioning your pedals.
(See User guide section for details)
The screws holding the up-posts are in
interference with the heel rest if they are
placed through the top or bottom
channel. I strongly suggest you slide the
heel rest through the middle channel,
unless you prefer a higher pedal
placement. Then by all means go through
To Next Page
