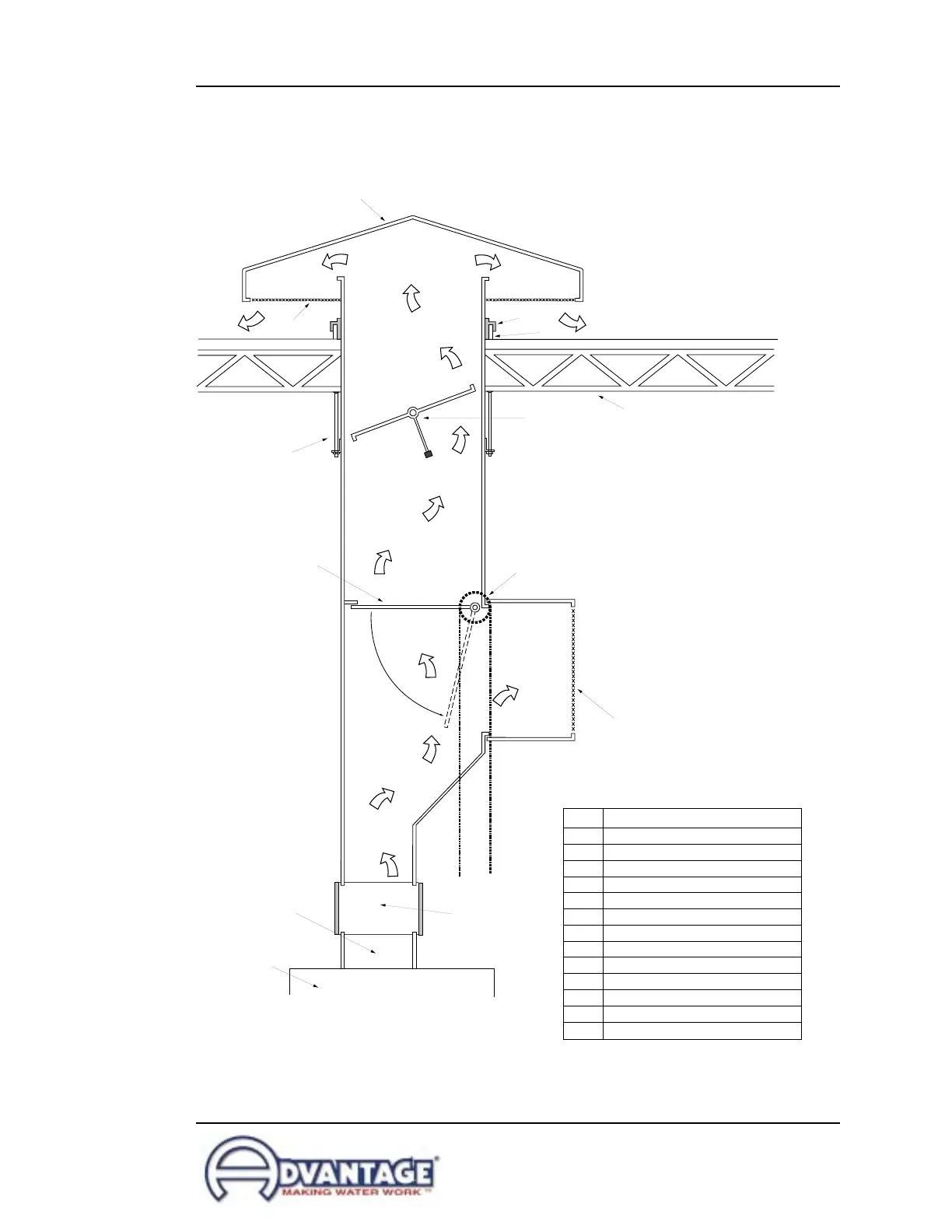

7.6 DUCT SCHEMATIC FOR AIR COOLED CHILLERS
13
12
11
10
9
8
7
6
5
4
3
2
1
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
Description
Weather cap
Screen
Flashing to suit
Roof curb
Plant roof
Butterfly with counterbalance
Separate duct support from roof
Gate control for exhaust air flow
Manual chain control
Duct to plant heating system
Mating collar
Chiller air exhaust port
Air cooled chiller
NOTE: THIS DRAWING IS FOR
EXPLANATION PURPOSES ONLY,
NOT FOR CONSTRUCTION PURPOSES
