Signal Test
• RTS -> CTS check the RTS and CTS signal between two ports
• DTR -> RI check the DTR and RI signal between two ports
• DTR -> DSR check the DTR and DSR signal between two ports
• DTR -> DCD check the DTR and DCD signal between two ports
Communication Parameters Test
• Baud rate: 50bps ~ 921.6kbps
• Data bits: 5, 6, 7, 8
• Stop bit 1, 1.5, 2
• Parity Odd, Even, None, Space, Mark

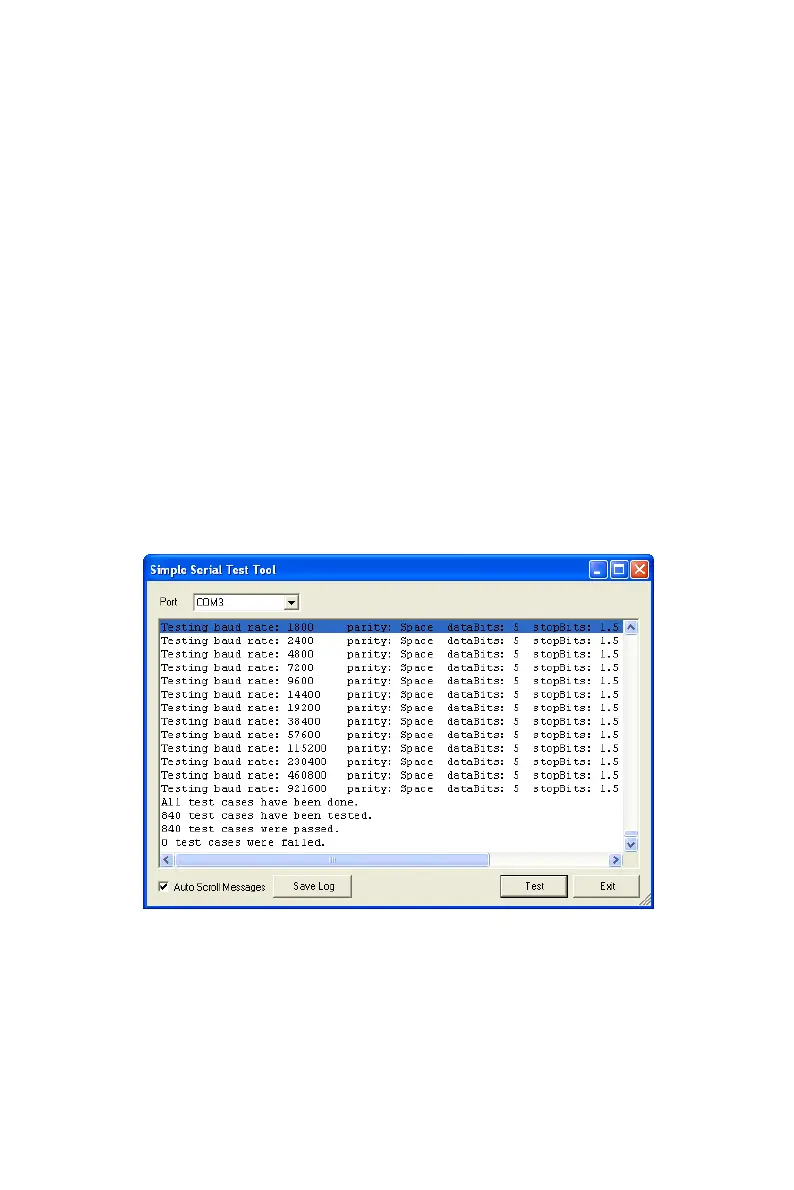

When the test is finish, it will show the test result, the click “Exit” button
to return to the utility window.
