ADAM-4570 Series User Manual 62

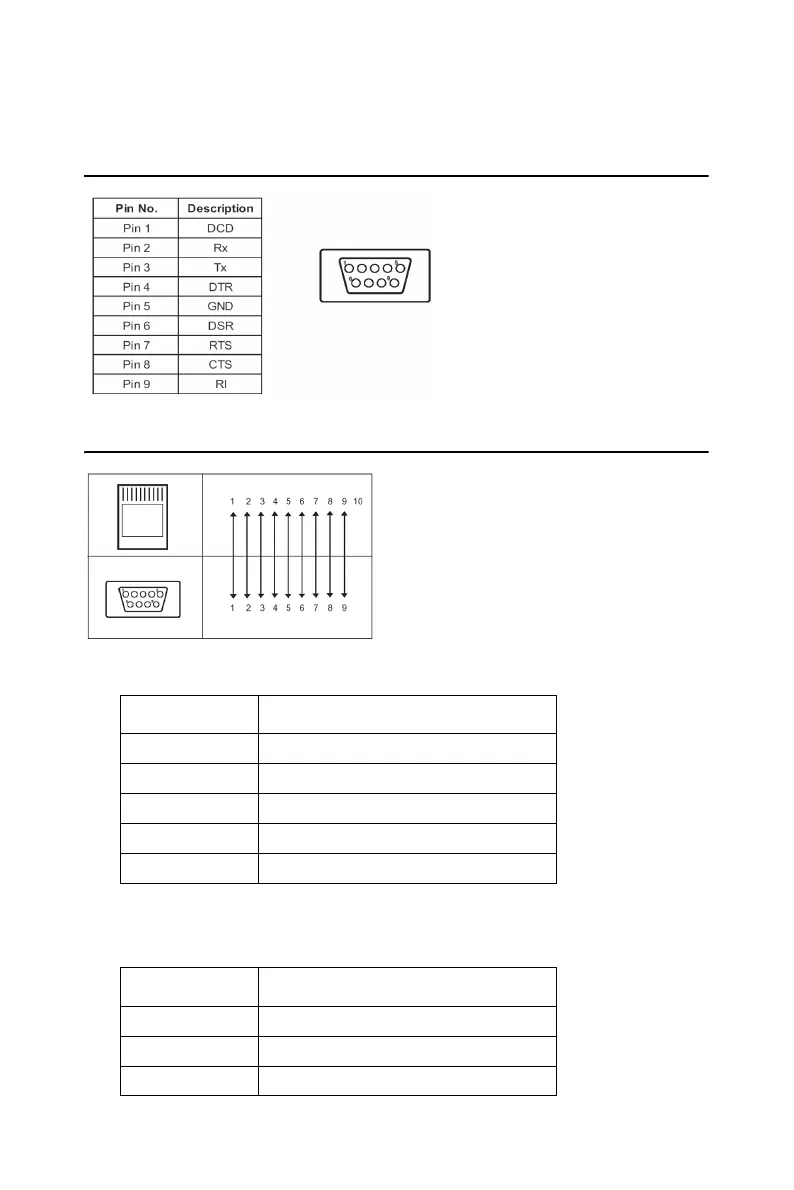

Appendix A Pin Assignments
A.1 RS-232 Pin Assignments
A.2 RJ-48 Cable PIN Assignment
A.2.1 1. RS-422
A.2.2 2. RS-485
Pin No. Description
1Tx-
4Tx+
5GND
7Rx+
9Rx-
Pin No. Description
1Data-
4Data+
5GND
