29 ADAM-6700 User Manual
Chapter 3 System Configuration
3.3 Firmware Updates
The device firmware can be updated using the web utility.
1. In the Firmware tab, click the Firmware Upload icon and select the firmware file
xxxx.bin

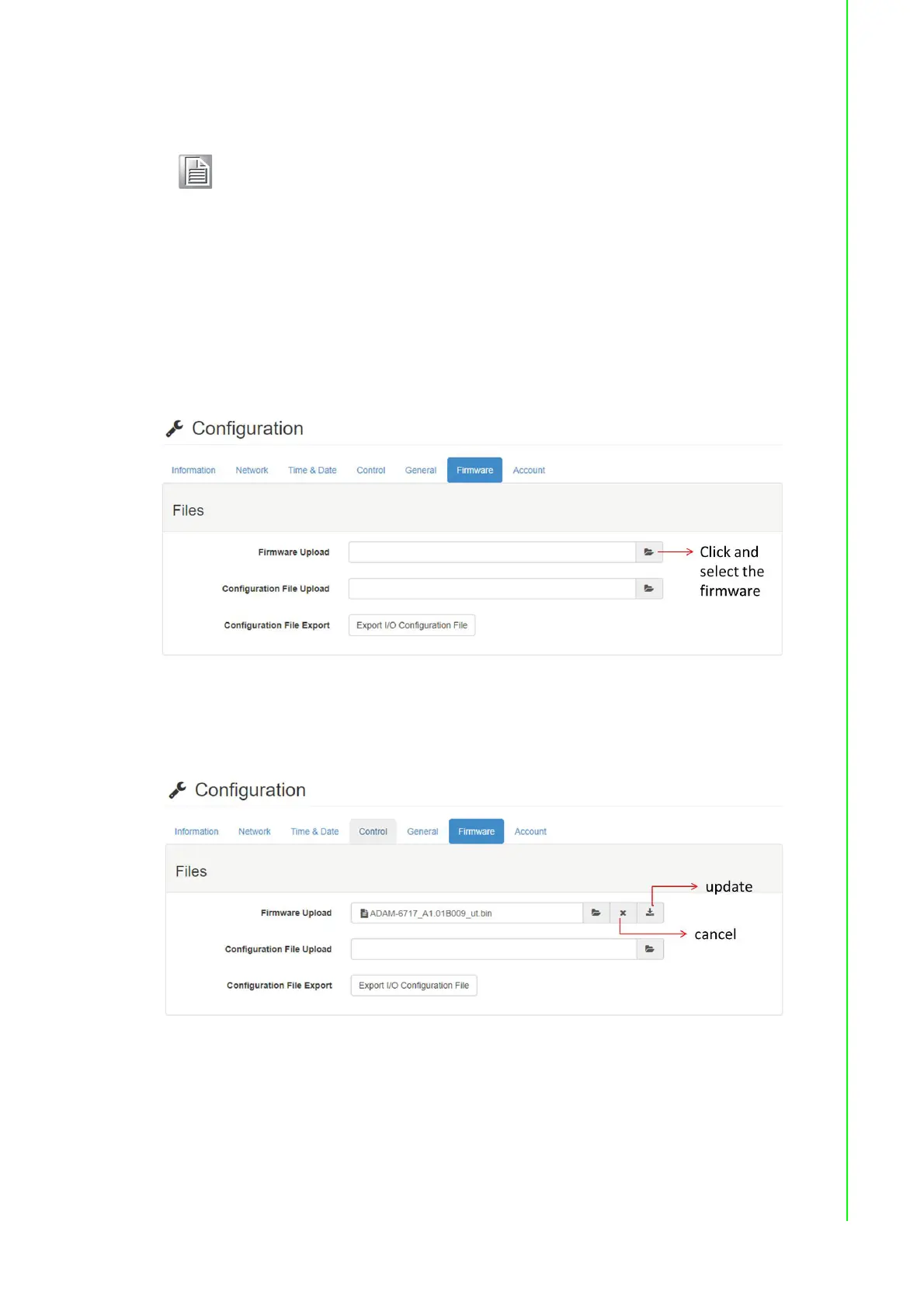

Figure 3.33 Select Firmware File
2. Click the Update icon to start the update, or click the Cancel icon to cancel the
process.
Figure 3.34 Update Firmware
3. Reboot the device to implement the firmware update.
Note! After the image update process is complete, a new update.log file will be
created on the micro SD card and the advupdate.txt file will be deleted.
This is to prevent the system from updating the image again if the micro
SD card is left in the slot. To update the image again, first delete the
image file on the micro SD card. Then follow the standard steps to
update the image, as outlined in Section 3.2.
