Low-to-High Delay/High-to-Low Delay Configuration

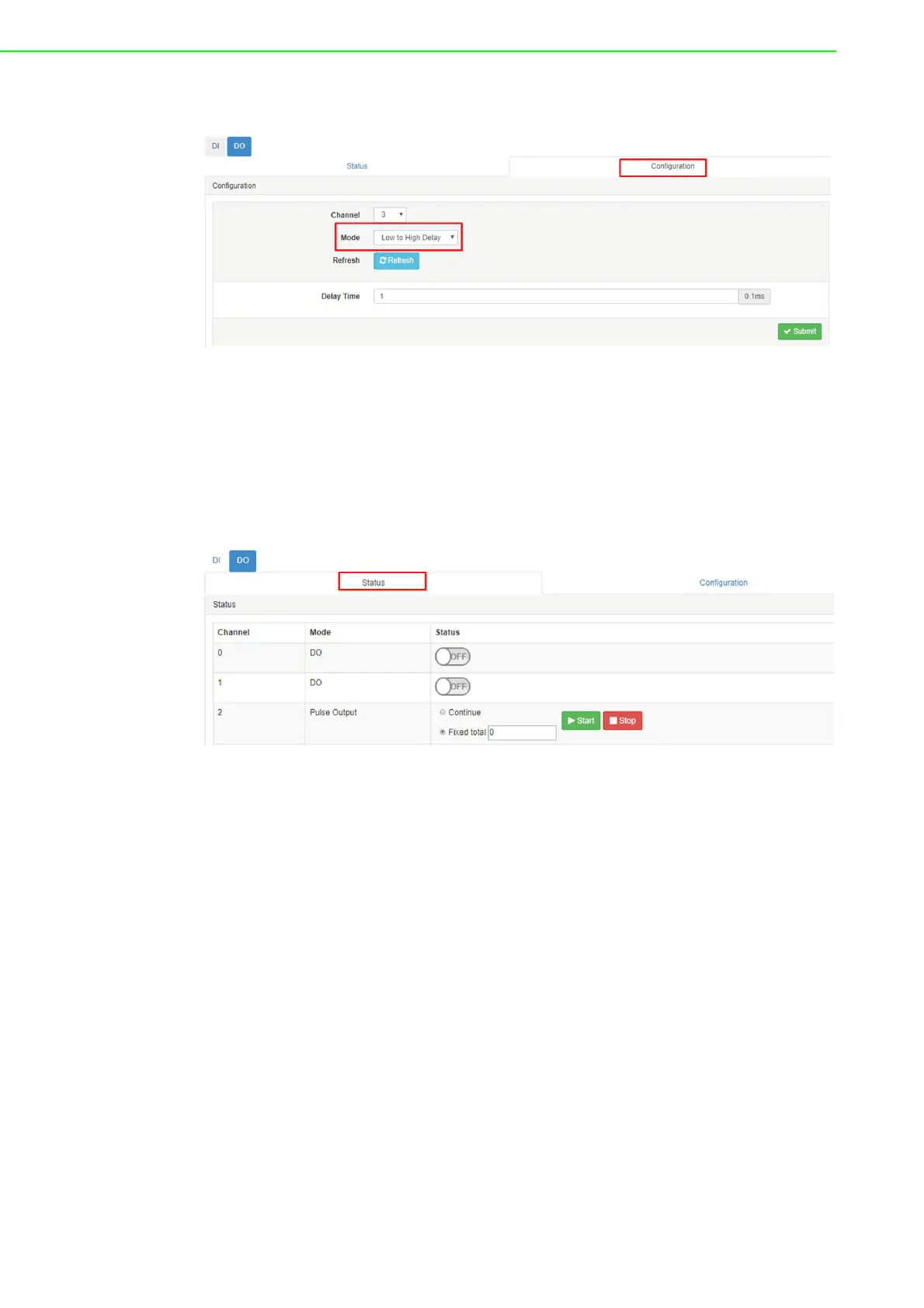

Figure 3.31 Low-to-High Delay/High-to-Low Delay Settings
Channel: Use this item to select the channel for configuration
Delay Time: Use this item to set the delay time as multiples of 0.1 ms
Submit: Click to make the changes take effect
Status
Figure 3.32 ADAM-6750 Digital Output Status
Status: Shows the status of the digital outputs; green = on, grey = off
Pulse Output: Fixed total => Click “start” to output a specific number of pulses
Continue => Click “start” to continue to output pulses until the user clicks “stop”.
3.2 Image Updates
The device image contains the operating system files and should be updated to sup-
port new functions. The latest image can be downloaded from www.advantech.com.
Follow the steps outlined below to update the image.
1. Ensure that the device is turned off. Copy the image file onto a micro SD card
and insert the card into the ADAM-6700 micro SD slot.
2. Turn on the device. The Status LED will flash every 0.5 seconds until the image
update is complete. At this point, the status LED will flash every 1 second.
3. Turn off the device and remove the micro SD card. The device is now installed
with the new image and ready for use.
