ADAM-6750
DO Mode Configuration

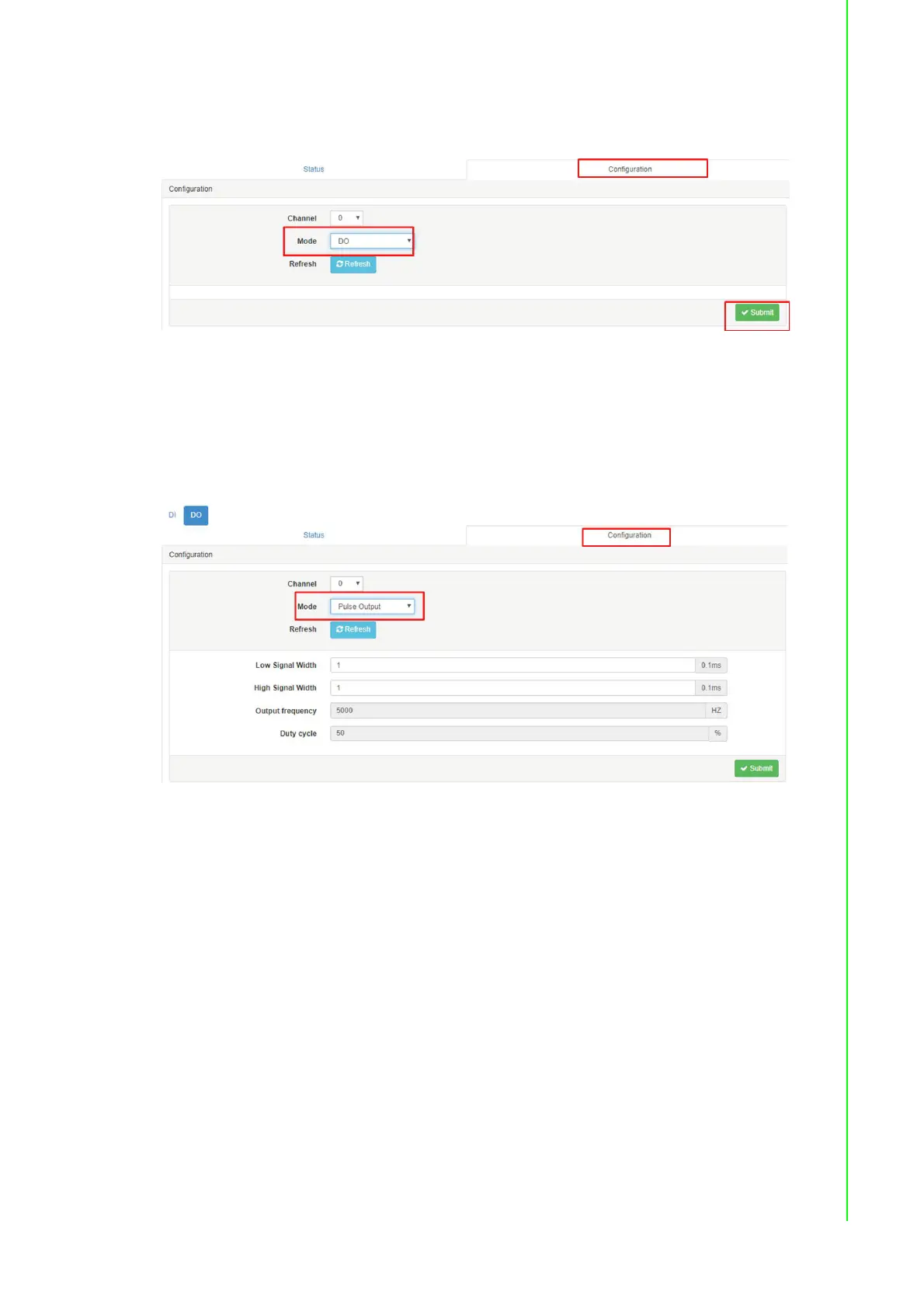

Figure 3.29 ADAM-6750 Digital Output Settings
Channel: Use this item to select the channel for configuration
Submit: Click to make the changes take effect
Pulse Output Mode Configuration
Figure 3.30 Pulse Output Mode Settings
Channel: Use this item to select the channel for configuration
Min. Low Pulse Width: Use this item to set the low pulse width of the filter as multi-
ples of 0.1 ms
Min. High Pulse Width: Use this item to set the high pulse width of the filter as mul-
tiples of 0.1 ms
Output Frequency: Use this item to set the pulse output frequency (up to 3 kHz)
Duty Cycle: Use this item to set the duty cycle
Submit: Click to make the changes take effect
