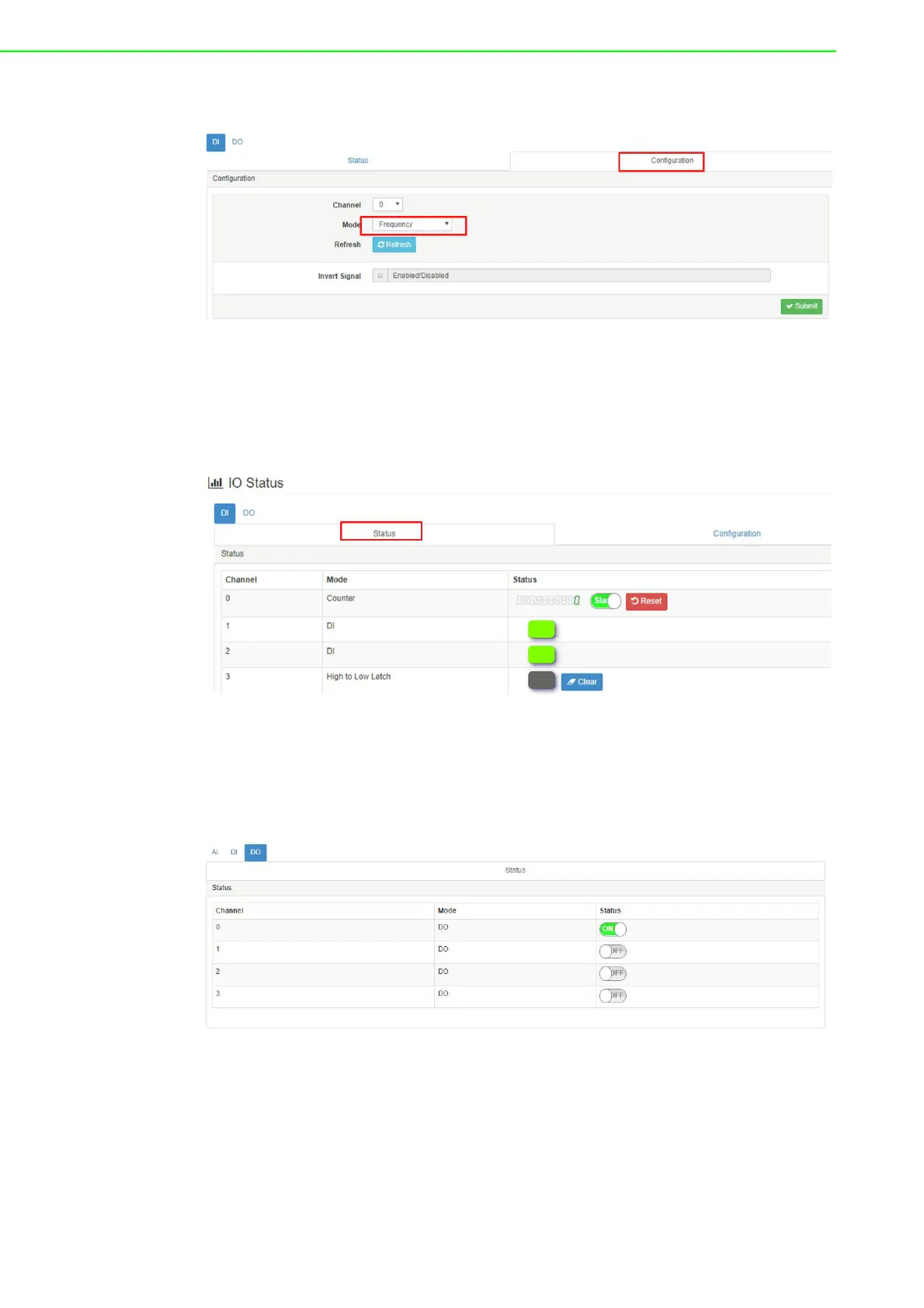

ADAM-6700 User Manual 26
Frequency Mode Configuration
Figure 3.26 Frequency Mode Settings
Invert Signal: Use this item to enable/disable inversion of DI signals (a tick will
appear when enabled)
Status
Figure 3.27 ADAM-6750 Digital Input Status
Mode: Use this item to view and change the channel mode
Digital Output Settings
ADAM-6717
Figure 3.28 ADAM-6717 Digital Output Settings
Status: Shows the status of the digital outputs; green = on, grey = off
