25 ADAM-6700 User Manual
Chapter 3 System Configuration
Counter Mode Configuration

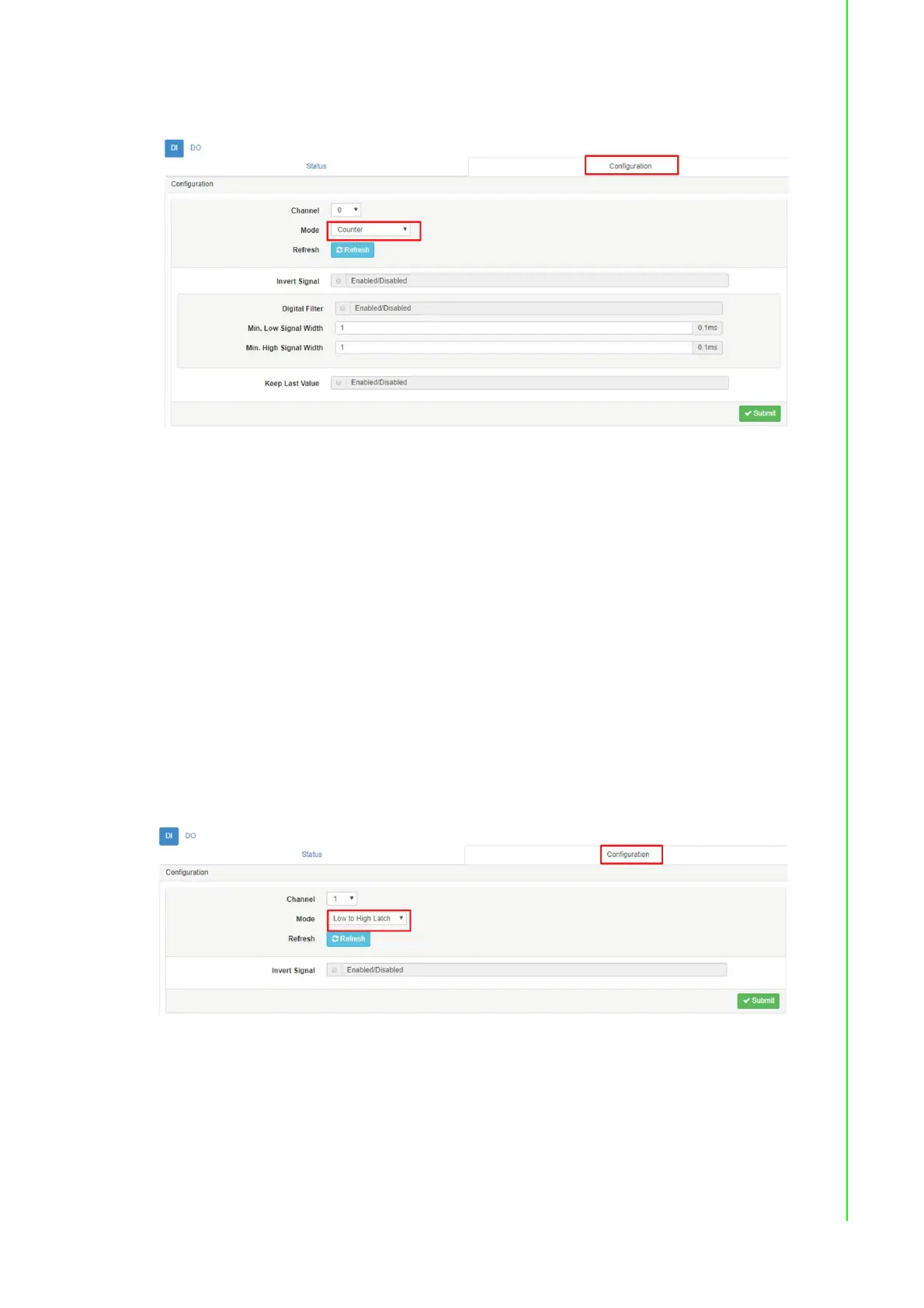

Figure 3.24 Counter Mode Configuration
Channel: Select the channel for configuration
Invert Signal: Use this item to enable/disable inversion of DI signals (a tick will
appear when enabled)
Digital Filter: Use this item to enable/disable the digital filter (a tick will appear when
enabled)
Min. Low Signal Width: Use this item to set the low signal width of the filter as multi-
ples of 0.1 ms
Min. High Signal Width: Use this item to set the high signal width of the filter as mul-
tiples of 0.1 ms
Keep Last Value: Use this item to enable/disable the keep last value function (a tick
will appear when enabled)
Submit: Click to make the changes take effect
Low-to-High Delay/High-to-Low Latch Configuration
Figure 3.25 Low-to-High Delay/High-to-Low Latch Settings
Invert Signal: Use this item to enable/disable inversion of DI signals (a tick will
appear when enabled)
