Advantech MIC-770 V3 User Manual

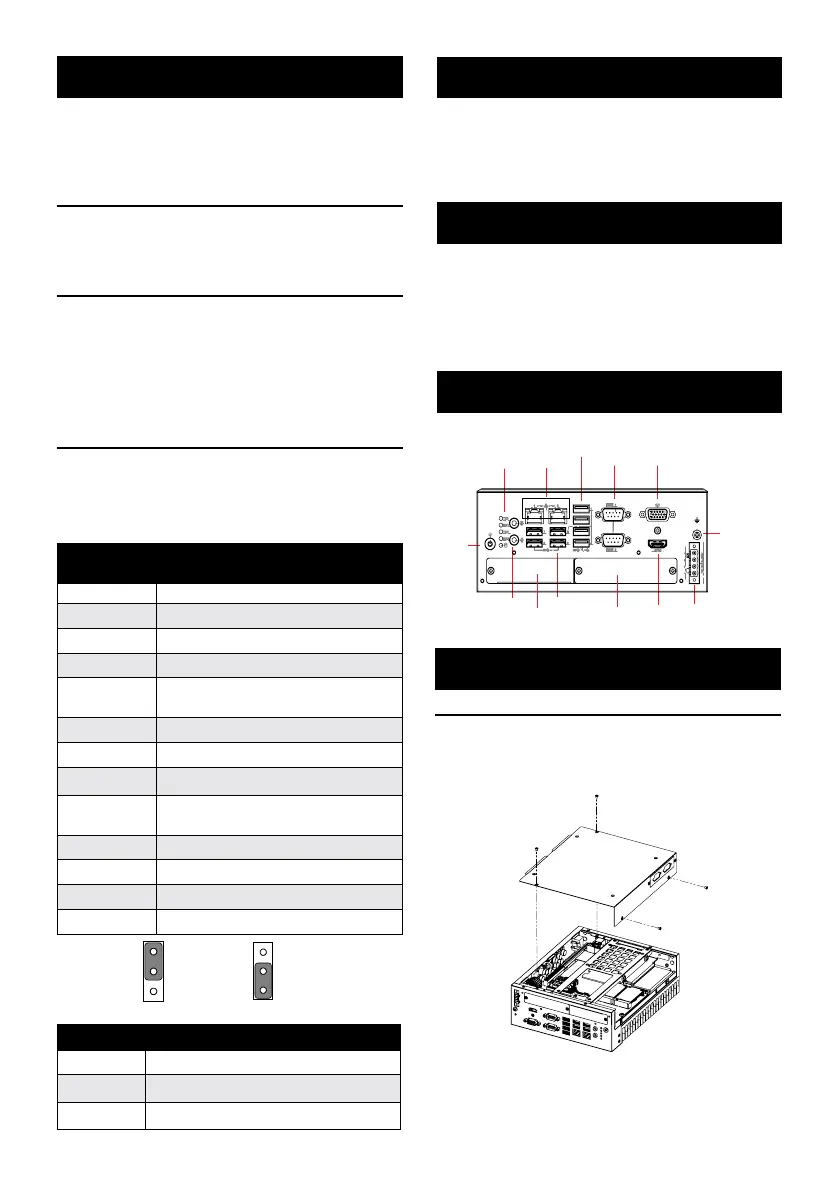

2 MIC-770 V3 Startup Manual
This product is intended to be supplied by a UL-certied
power supply or UL-certied DC source rated 19 Vdc, 7.89A
minimum, TMA 50 °C minimum (safety certicate operation
temperature 40 °C). If you need further assistance, please
contact Advantech for further information.
Miscellaneous
• Power Switch
(Orange: System standby / Green: System Power boot)
• COM1 TX & RX LED; COM2 TX & RX LED; Storage
Status LED ((Blinking: read/write; Dark: no behavior)
Environment
• Operation Temperature:
TDP 35W CPU: -20 ~ 60 °C
TDP 65W CPU: -20 ~ 50 °C
Note: Safety Certication Test Temperature: safe max
60 °C with SSD (TDP 35W CPU) (Safety certicate opera-
tion temperature 60 °C)
• Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
• Relative Humidity: 95% @ 40 °C (non-condensing)
Physical Characteristics
• Dimensions (W x H x D): 77 x 192 x 230 mm
• Weight: 2.8 kg (6.17 lb)
The board has a number of jumpers that allow you to con-
gure your system to suit your application. The table below
lists the function of each of the jumpers and connectors.
Connectors
Label Function
VGA1 VGA Connector
HDMI1 HDMI connector
COM 1/2 RS-232/422/485
COM 3/4, COM
5/6
RS-232
USB 1-4 USB 3.2 (R680E, iAMT) or USB 2.0 (H610E)
USB 5/6 USB 3.2
USB 7/8 USB 3.2
LAN 1
Intel® i219LM (R680E) or Intel® i219V
(H610E)
LAN 2 Intel® i210IT (iBMC)
Audio Audio Jack (Line-out, Mic-in)
LED COM 1/2 TX; RX; Storage device status
DC 9-36V Power connector
AT Module ATX Module
PSON1: System AT/ATX Module Selection
Function Jumper Setting
1-2 AT module
2-3 ATX module (Default)
1
2
3
1
2
3
The computer is supplied with a battery-powered realtime
clock circuit. There is a danger of explosion if the battery is
incorrectly replaced. Replace only with the same or equiva-
lent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
Memory Installation
MIC-770 V3 supports DDR5 SODIMM ECC/non-ECC type
memory module. If you need a detailed supported memory
list, please contact your distributor or sales representative to
order compatible memory modules.
Power
Line out
MIC in
LAN2/
LAN1
Chassis GND
VGA
9
-
36 VDC
COM1/2
USB3.2
HDMI
TX for COM1
RX for COM1
TX for COM2
RX for COM2
Storage (SATA)
USB3.2/2.0
iDoor
interface
Flex I/O
interface
Specications(Cont.)
Declaration of Conformity
System I/O Interface
Battery
Jumpers and Connectors
Simple Maintenance Process

Advantech MIC-770 V3 Specifications

General

Brand	Advantech
Model	MIC-770 V3
Category	Desktop
Language	English
