Advantech PDC-W240 - Page 15

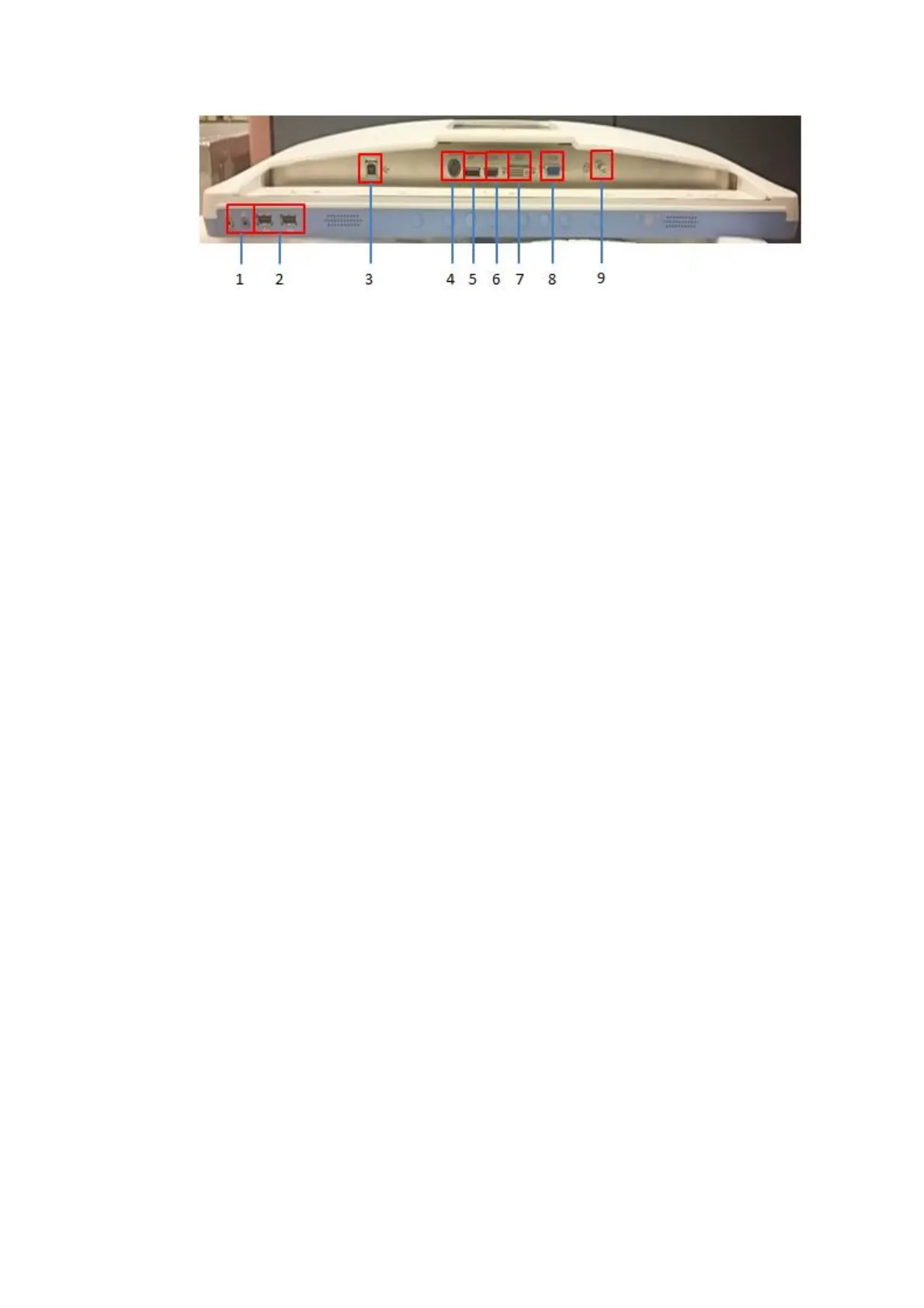

Figure 2-3: Rear view of Multi I/O ports
2-2 and 2-3 Rear view
(1) Audio: Earphone/ Audio in
(2) P-cap USB (Type B)
(3) USB upstream Port
(4) Power DC-IN
(5) DP
(6) HDMI
(7) DVI
(8) VGA
(9) Equipotential Terminal Pin
NOTE: Equipotential terminal need link to hospital ground/earth system before
system boot to protect operator and system .
