Advantech PDC-W240 User Manual

2 System Setup
2.1 A Quick Tour of the PDC-W240
Before you start to set up the PDC-W240, take a moment to become familiar
with the locations and purposes of the controls, drives, connections and
ports, which are illustrated in the figures below.
When you place the PDC-W240 upright on the desktop, its front panel
appears as shown in Figure 2.1.

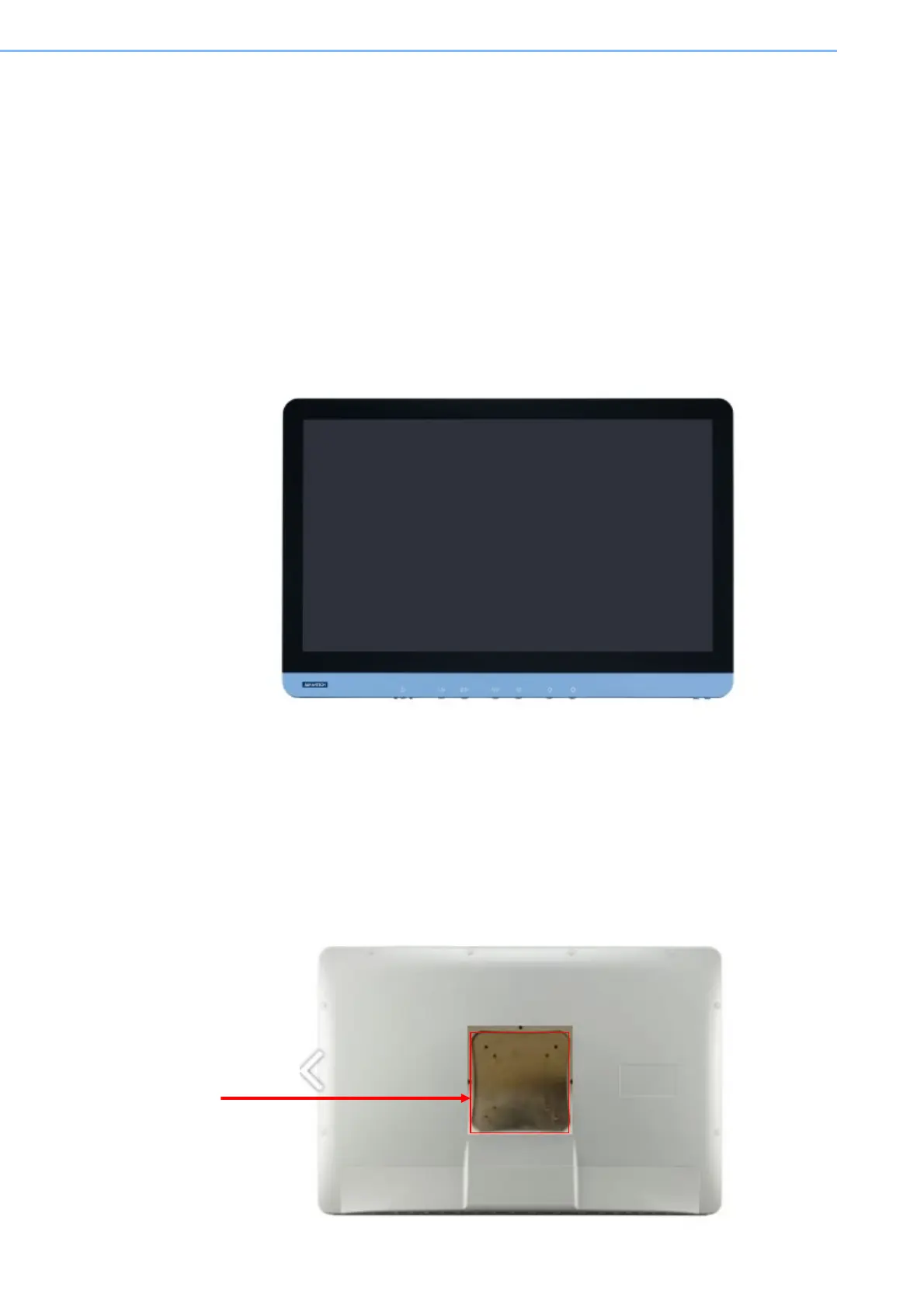

2.1.1 Front View
Figure 2.1 Front View of the Monitor Terminal
2.1.2 Rear View
When you turn the Point of Care Terminal around and look at its rear cover,
the sunken I/O section is at the bottom of the panel PC, as shown in Figure
2-2 and zoom in Figure 2-3. (The I/O section includes various I/O ports,
including serial ports, VGA port, the Ethernet port, USB ports and so on.)
Figure 2-2: Rear view of the Point of Care Terminal
(1)

Advantech PDC-W240 Specifications

General

Brand	Advantech
Model	PDC-W240
Category	Monitor
Language	English
