Advantech UNO-2484G V2 Startup Manual

2 UNO-2484G V2 Startup Manual
Front I/O
• Display:
- 1 x HDMI 1.4 (3840x2160@60Hz)
- 1 x DP 1.4a (4096x2304@60Hz)
• USB: 3 x USB 3.2 Gen2, 1 x USB2.0
• Serial: 4 x RS-232/422/485
• USB Type-C: 1 x USB3.2 Gen2, support DP1.4a Alt.
mode
• Power Connector: 1 x 2 pins, terminal block
Power Requirement
• Power Requirement: 10 - 36 V
DC
• Power Consumption: 30.2W (Typical), 85W (Max)
Certication
• CE, FCC, UL, CCC, BSMI
Environment
• Operating Temperature: -20 ~ 60°C (-4 ~ 140°F) @ 5 ~
85% RH with 0.7 m/s airow
• Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
• Relative Humidity: 10 ~ 95% RH @ 40°C, non-con-
densing
• Shock Protection: Operating, IEC 60068-2-27, 50G, half
sine, 11 ms
• Vibration Protection: Operating, IEC 60068-2-64, 3
Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)
• Ingress Protection: IP40 ( for Base unit only)
Physical Characteristics
• Dimensions:
- 200 x 140 x 40 (7.8” x 5.6” x 1.6” ) for single stack
- 200 x 140 x 70 (7.8” x 5.6” x 2.8”) for single stack
w/expansion stack UNO-2484G V2 version
• Weight: (Net) Single stack: 1.4kg (3.09lbs)
The UNO-2484G V2 is an embedded hardware-ready plat-
form capable of shortening development time. The system
o󰀨ers a wide range of networking interfaces to satisfy the
various needs of di󰀨erent applications. Equipped with the
11th Intel® Core™ i processor, and 8GB DDR4 RAM. It sup-
ports wide temperature range operation (-20 ~ 60° C/-4 ~
140° F) and su󰀩cient I/O - including 1 x GbE, 3 x 2.5 GbE,
2 x mPCIe, 1 x M.2 B-key, 1 x M.2 M-key, 1 x HDMI, 1 x DP,
1 x USB2.0, 3 x USB 3.2, 1 x USB TypeC, and 4 x COM.
It also supports 2 x Mini PCIe slot (PCIe/USB2.0 signal) to
enable expansion. An optional 2nd stack extension kit sup-
ports 2 x iDoor module, such as industrial Fieldbus, as well
as I/O and peripheral modules.
UNO-2484G V2 features a modularized design. Advantech
o󰀨ers two optional 2nd stack extension kits for users to
expand the functionality using an Advantech iDoor module.
Follow these simple precautions to protect yourself from
harm and the products from damage.
• To avoid electrical shock, always disconnect the power
from the PC chassis before manual handling. Do not
touch any components on the CPU card or other cards
while the PC is powered on.
• Disconnect the power before making any conguration
changes. A sudden rush of power after connecting a
jumper or installing a card may damage sensitive elector-
nic components.
1. Visit the Advantech website at www.advantech.com/
support to obtain the latest product information.
2. Contact your distributor, sales representative, or Advan-
tech’s customer service center for technical support if
you need additional assistance. Please have the follow-
ing information ready before calling:
– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, ver-
sion, application software, etc.)
– A complete description of the problem
– The exact wording of any error messages
Specications(Cont.)
Safety Precautions - Static Electricity
Technical Support and Assistance

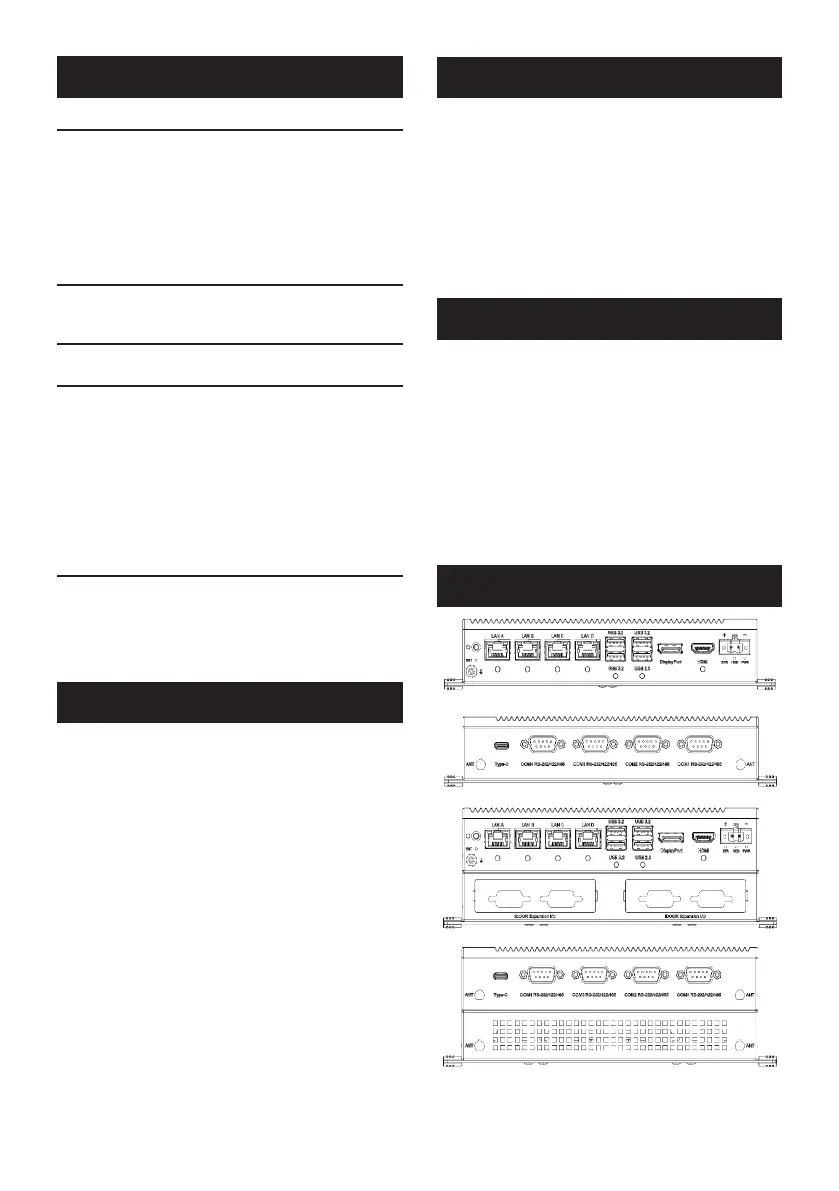

System I/O Interface
Introduction

Advantech UNO-2484G V2 Specifications

General

Brand	Advantech
Model	UNO-2484G V2
Category	Computer Hardware
Language	English
