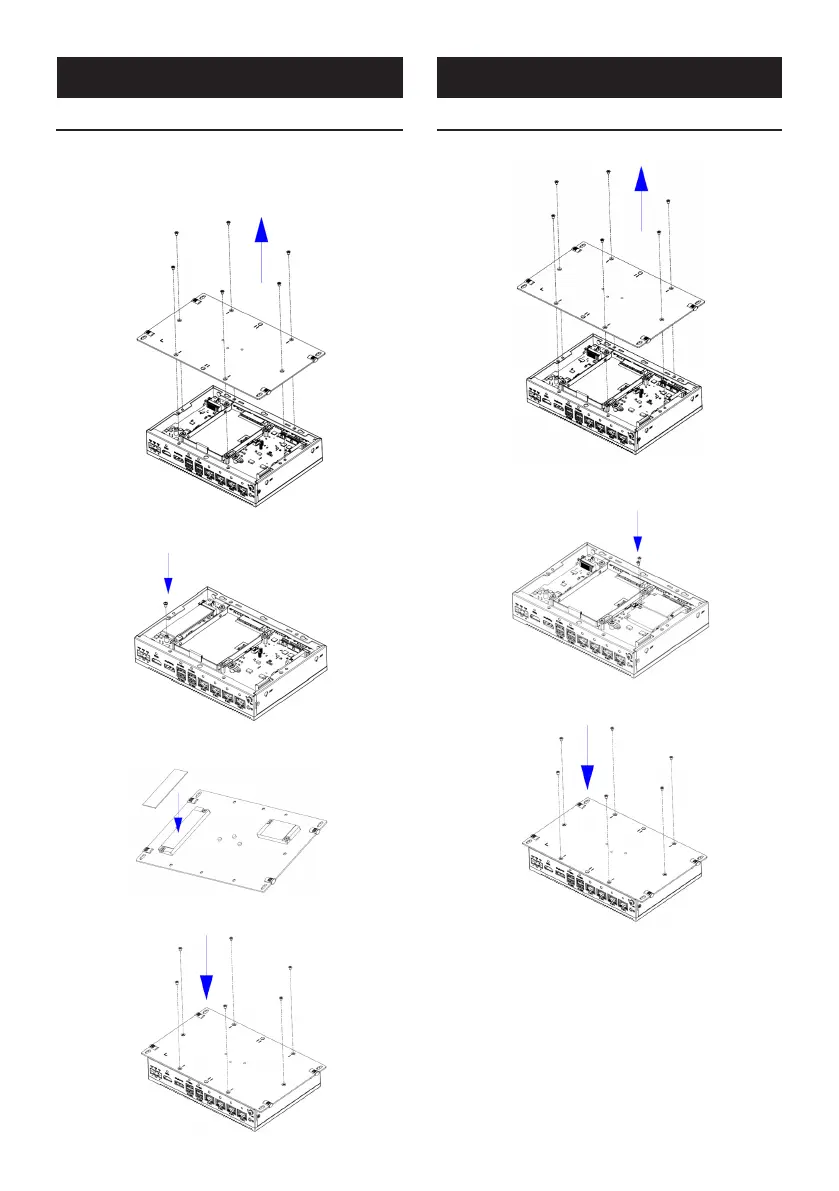

Installing NVME 2280 module
The rear cover can be opened in order to install a mPCIe/
NVME/ M.2 module, SSD, or HDD, or to adjust the switch
settings.
1. Remove the six screws (PN:1930001361*6pcs) on the
rear cover.
2. Insert NVME card at the location: “NVME1” and secure
it with the provided screw (PN: 19350304A0*1pcs).
3. Paste the thermal pad (PN: 1990038768N010*1pcs) on
the Aluminum block from the accessory bag.
4. Close the rear cover and re-attach the six screws
(PN:1930001361*6pcs) back.
Installing miniPCIe Module
1. Remove the six screws (PN:1930001361*6pcs) on the
rear cover.
2. Insert miniPCIe card at the location: “mPCIE1” or
“mPCIE2” and secure it with the provided screw (PN:
1930000198*1pcs).
3. Close the rear cover and re-attach the six screws back
(PN:1930001361*6pcs)..
