Advantech UNO-2484G V2 Startup Manual

4 UNO-2484G V2 Startup Manual

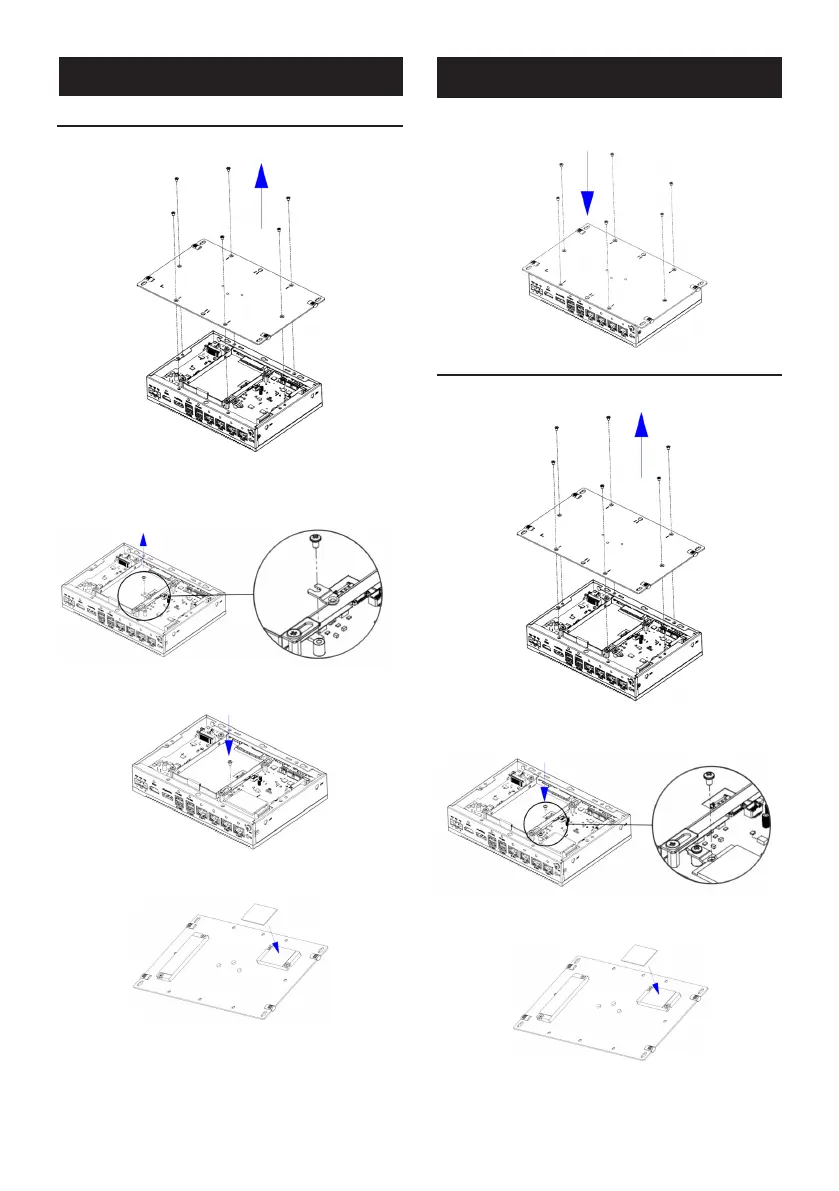

Installing M.2 B Key 3052 Module
1. Remove the six screws (PN:1930001361*6pcs) on the
rear cover.
2. Remove the pre-assy iron part
(PN:1960102502T000*1pcs) and the screw.
(PN:19350304A0*1pcs)
3. Insert the M.2 B key 3052 module and secure it with the
provided screw (PN:19350304A0*1pcs).
4. Paste the thermal pad (PN: 1990038769N010*1pcs),
on the Aluminum block from the accessory bag.
SimpleMaintenanceProcess(Cont.)
5. Close the rear cover and re-attach the six screws back
(PN:1930001361*6pcs).
Installing M.2 B key 2242 Module
1. Remove the six screws (PN:1930001361*6pcs) on the
rear cover.
2. Insert the M.2 2242 module and secure it with the
provided screws (PN: 19350304A0*1pcs).
3. Paste the thermal pad (PN: 1990038769N010*1pcs),
on the Aluminum block from the accessory bag.
SimpleMaintenanceProcess(Cont.)
