Advidia A-200
2
1 Overview
Please turn the power off before connect the cables.

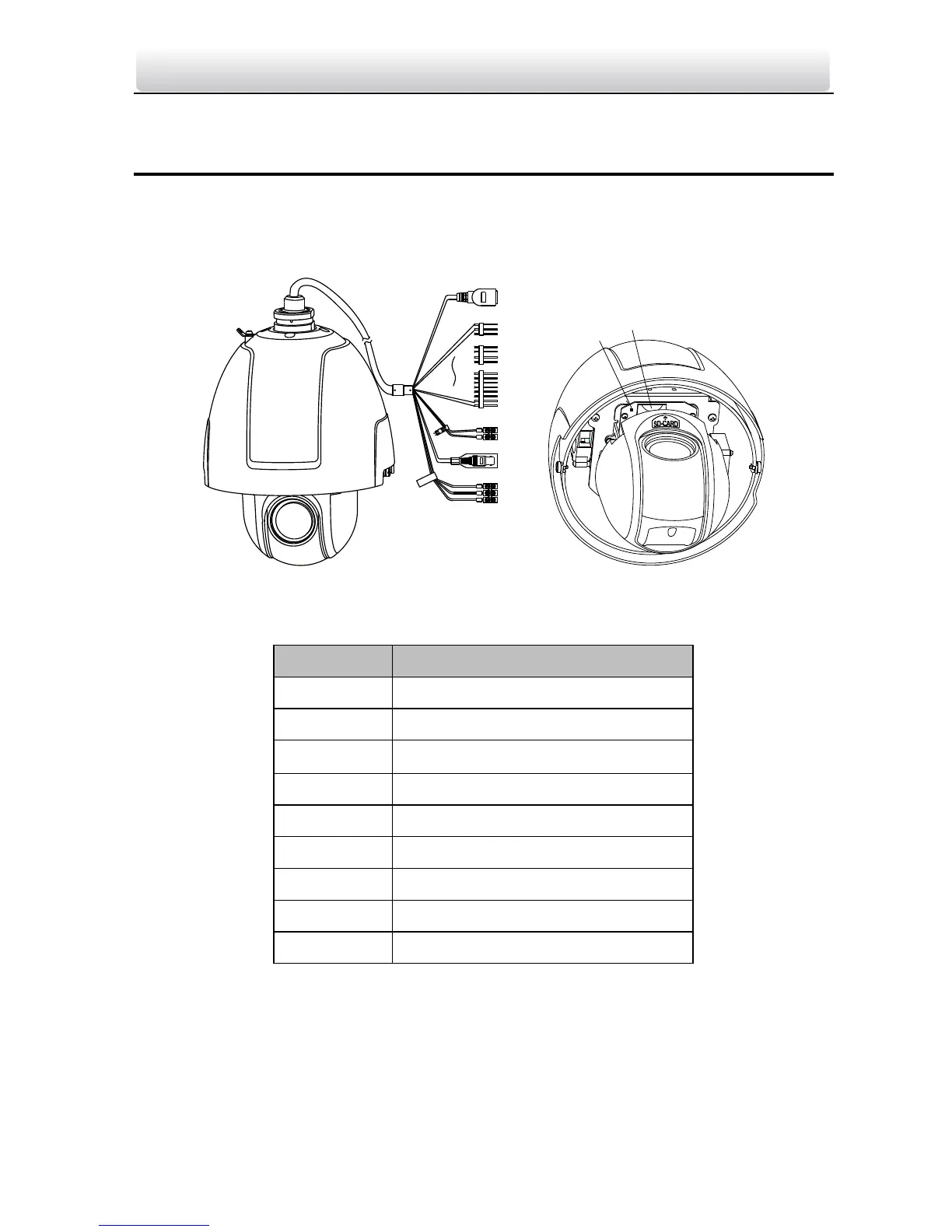

The cable interfaces of network speed dome are shown in following figure(left). The
cables are distinguished by different colors. The labels attached on the cables are for
identification.
Figure 1-1 Overview
Table 1-1 Overview
No.
Description
1
Network Cable
2
Audio Cable
3
Alarm Output Cables
4
Alarm Input Cables
5
RS-485 Cables
6
Video Cable
7
Power Cable
8
SD Card Slot
9
Power Indicator
1
RED AC24V
YELLOW/GREEN
BLACK AC24V
VIEOD
2
3
6
7
4
5
8
9
