A-44 V2/A-54 V2
·
Quick Start Guide
15

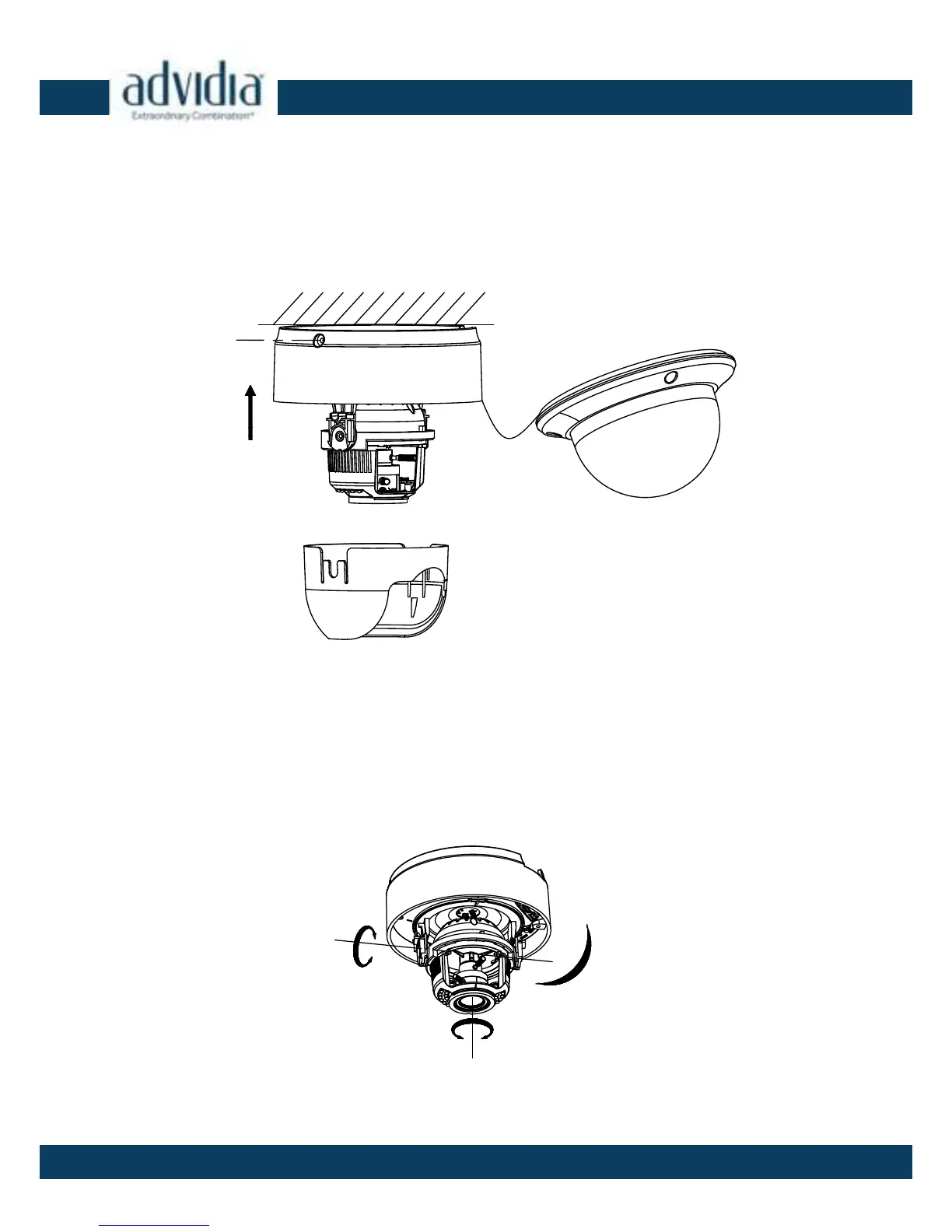

Figure 2-3
Install the Adapter Plate
3. Align the camera base with the adapter ring and rotate the
camera base counter clockwise to lock it into the adapter ring, and
then secure it by tightening the lock screw.
Figure 2-4
Install Camera to Adapter Ring
4. Adjust the lens angle according to the figure below. Panning angle
[0~80°], tilting angle [0~355°], and azimuth angle of the lens
[0~355°].
Lock
Screw
0~80°
0~355°
0~355°
To Next Page
