Installation
818 22 13-00/2 11
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
1
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures
not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate is
inside, on the left.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA
approved (BS 1362) fuse must be used.
Important
The wires in the mains lead are coloured in accordance with the follow-
ing code:
Green and Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the
mains lead of this appliance may
not correspond with the coloured
markings indentifying the termi-
nals in your plug, proceed as fol-
lows:
1. The wire coloured green and
yellow must be connected to
the terminal marked with the
letter “E“ or by the earth sym-
bol or coloured green and yellow.
2. The wire coloured blue must be connected to the terminal “N“ or
coloured black.
3. The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
4. Upon completion there must be not cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheat.
1
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of safely.

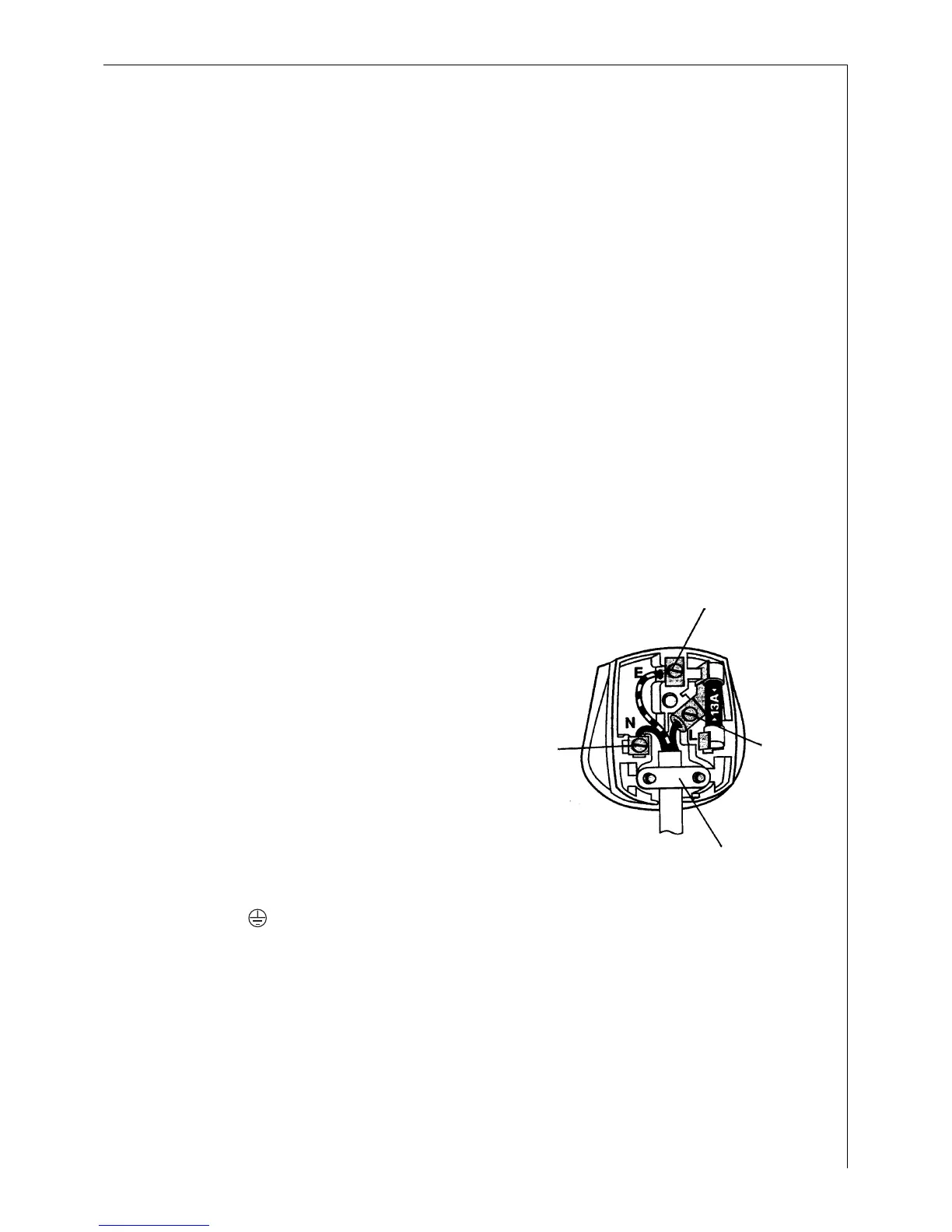

Blue
Green
& Yellow
Brown
Cord Clamp
