Installation and Connection Instructions
41
Connections
The water inlet and drain hoses, as well as the mains cable must be
connected beside the dishwasher as there is insufficient space behind
the appliance.

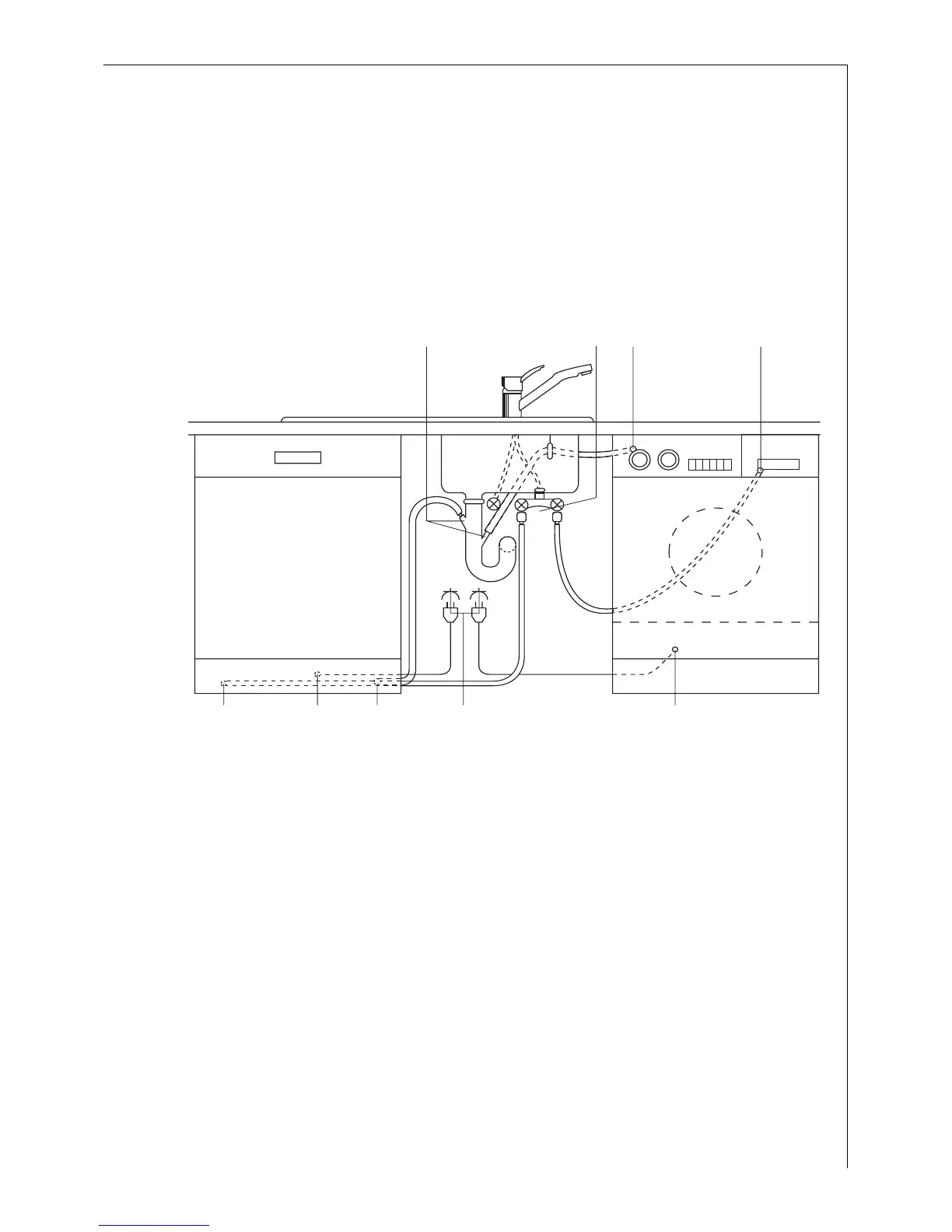

The plumbing and electrical installation example given below can only
be regarded as a recommendation.
Two 45° or Straight Connections,
Outer ø 19 mm, Length 30 mm
Double tap Water drain Water inlet
Water
drain
Water
inlet
Mains
cable
Mains
cable
Mains socket
