4. PRODUCT DESCRIPTION

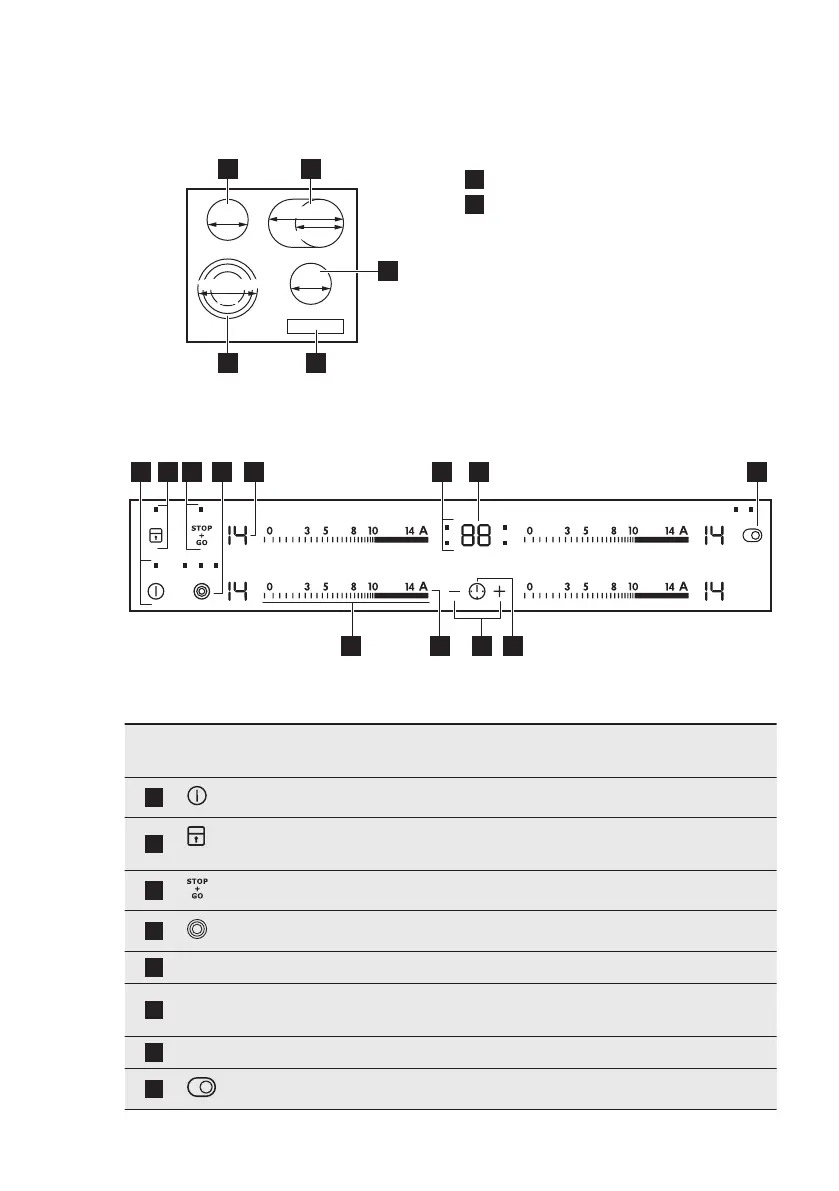

4.1 Cooking surface layout
170 mm
265 mm
170 mm
265 mm
120/175/210
mm
120/175/210
mm
145 mm
145 mm
1
1
1 1
2
1
Cooking zone
2
Control panel
4.2 Control panel layout
81 2 3 4 5
6
7
10 912
11
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell
which functions operate.
Sensor
field
Function Comment
1
ON / OFF To activate and deactivate the hob.
2
Lock / The Child Safety De-
vice
To lock / unlock the control panel.
3
STOP+GO To activate and deactivate the function.
4
- To activate and deactivate the outer ring.
5
- Heat setting display To show the heat setting.
6
- Timer indicators of cooking
zones
To show for which zone you set the time.
7
- Timer display To show the time in minutes.
8
- To activate and deactivate the outer ring.
