AEG K 19 E - Temporary Installation for Air-Conditioning

age
t

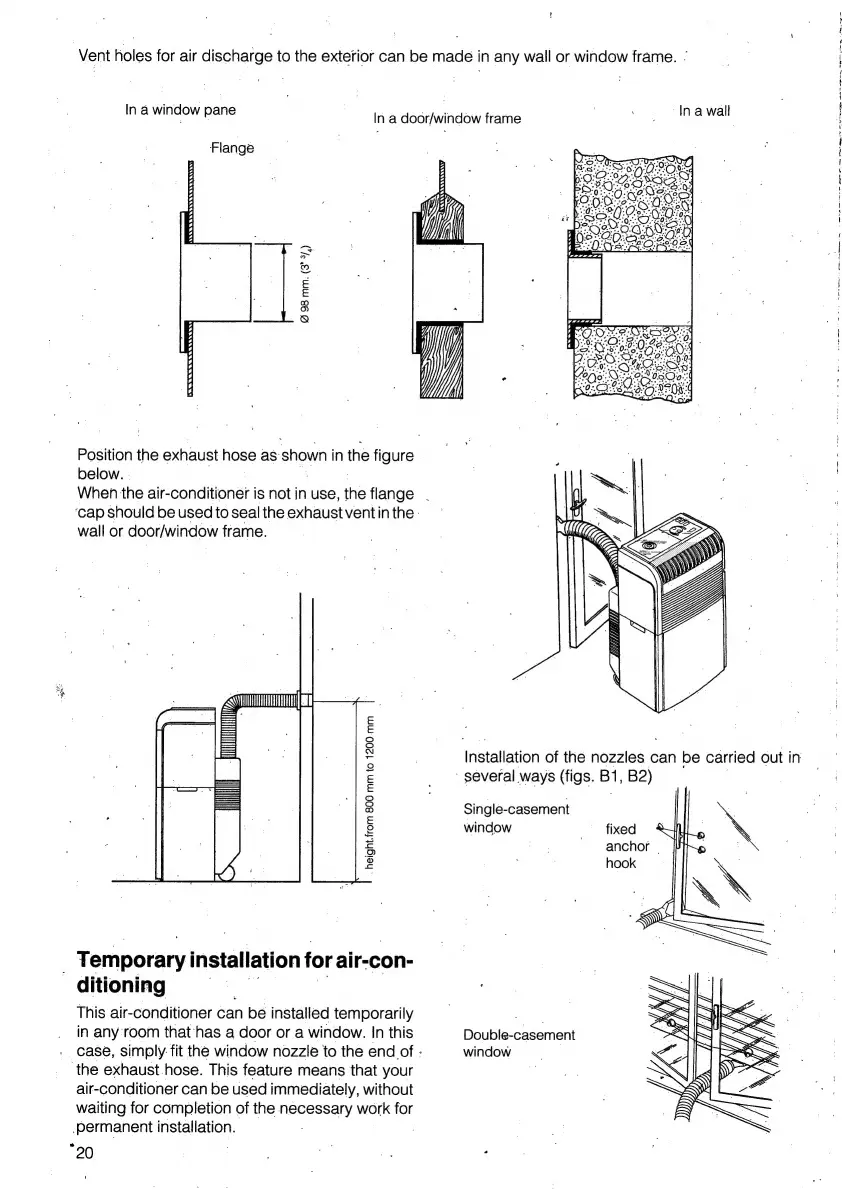

| Vent holes for air discharge to the extetior can be made in any wall or window frame. -
In a window pane ueet ‘Ina wall
P In a door/window frame 2
Flange
mt em nee Or RR tr
@ 98 mm. (3"¥/,)
Position the exhaust hose as: shown in the figure
below. . | me
When the air-conditioner is not in use, the flange .
‘cap should be used to seal the exhaust ventin the :
wall or door/window frame.
Installation of the nozzles can be carried out in
' several ways (figs. B1, B2) |
Single-casement
.height.from 800 mm to 1200 mm_—s| 7
window
_ Temporary installation for air-con- |
ditioning — | SNL |
This air-conditioner can be installed temporarily , = =| e<
__ in any'room that’has a door or a window. In this Double-casement AWN SSS
. Case, simply fit the window nozzle to the end of - window AT ESS
the exhaust hose. This feature means that your Nk iy = :
air-conditioner can be used immediately, without Sy
waiting for completion of the necessary work for A
permanent installation. . :
*20 .
