AEG L7FC8432BI - Page 12

553 mm
596 mm
140 mm
76 mm
50 mm
50 mm
819 mm

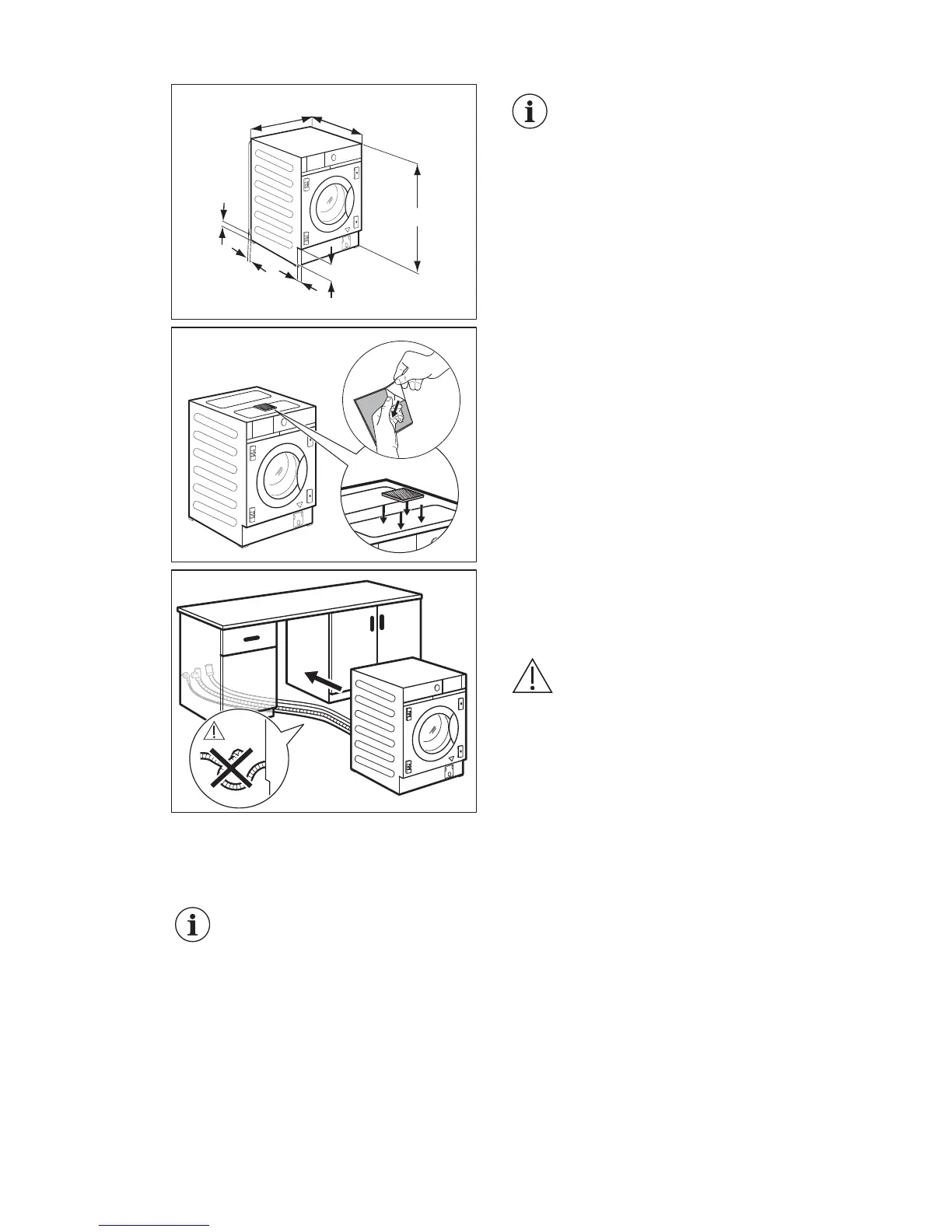

If hoses run behind the
appliance, make sure that
nothing closes the small
recess indicated with the
measures 50 x 50 mm.
The appliance is also equipped with an
adhesive sponge pad H that you can find
inside the drum.
Attach it on the top of the appliance where
indicated in the drawing.
When levelling the appliance under the
furniture, DO NOT squeeze the sponge pad.
Before proceeding with appliance building in,
bring it near the recess and preposition the
inlet hose, the drain hose and the mains
cable.
WARNING!
Make sure they are not kinked
or squashed.
3.8 Installing anti-tilting device
If the height of the counter is 820 mm or lower, you cannot install the anti-
tilting device.
