AEG LFR6114O2B User Manual

11. Put the filter back into the special
guides by turning it clockwise. Make
sure that you tighten the filter
correctly to prevent leakages.
2
1
12. Close the pump cover.
2
1
1

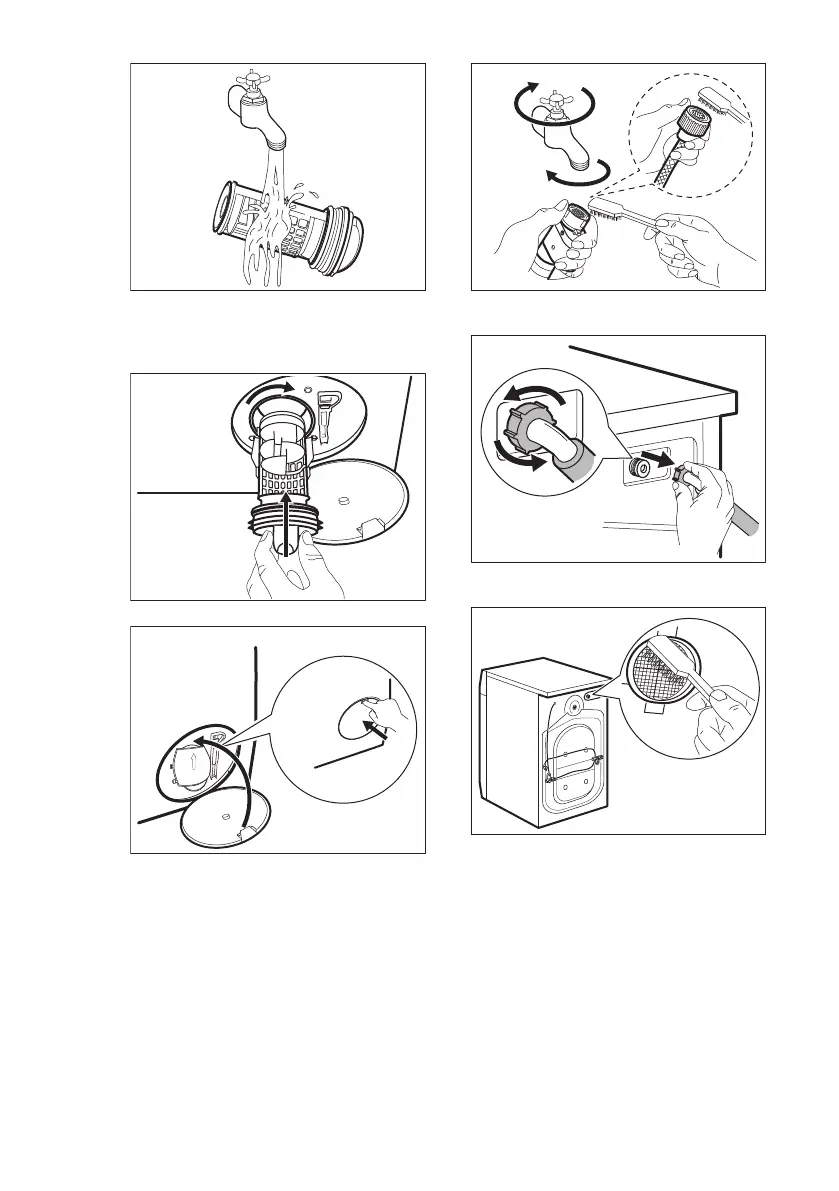

14.10 Cleaning the inlet hose
and the valve filter
It is recommended to clean both the
filters of the inlet hose and valve
occasionally to remove any deposit,
collected over the time:
1. Remove the inlet hose from the tap
and clean the filter.
1
2
3
2. Remove the inlet hose from the
appliance by loosening the ring nut.
3. Clean the valve filter on the back of
the appliance with a toothbrush.
4. When you reconnect the hose to the
back of the appliance, turn it left or
right (not in vertical position)
depending on the position of your
water tap.
ENGLISH 33

AEG LFR6114O2B Specifications

General

Door type	Tempered glass
Door hinge	Left
Cord length	1.8 m
Drum volume	68.6 L
Control type	Rotary
Display type	LED
Door opening	Side opening
Loading type	Front-load
Product color	White
Built-in display	Yes
Appliance placement	Freestanding
Connected load	2200 W
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Water consumption per cycle	52 L
Energy consumption washing per cycle	0.512 kWh
Drum capacity	10 kg
Cycle time (max)	230 min
Spin-drying class	B
Maximum spin speed	1400 RPM
Noise level (spin)	76 dB
Noise level (wash)	- dB
Number of washing programs	-
Automatic dosing system	No

Weight and Dimensions

Depth	636 mm
Width	597 mm
Height	847 mm
