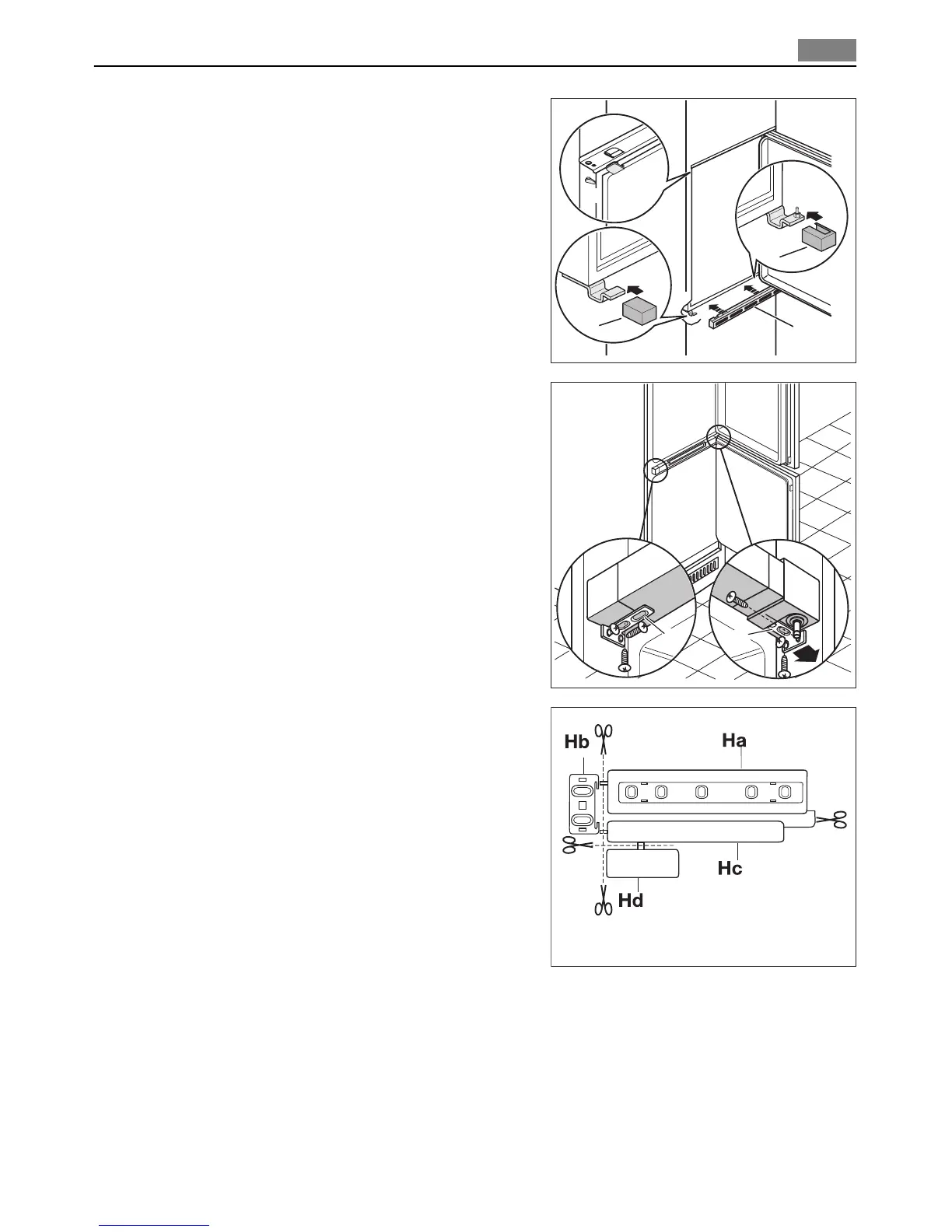

7. Attach the covers (C, D) to the lugs and
the hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the hinge.
8. If the appliance must connect laterally
to the kitchen furniture door:
a) Slacken the screws in fixing brackets
(H).
b) Move the brackets (H).
c) Retighten the screws.
9. Disconnect the parts (Ha), (Hb), (Hc) and
(Hd)
B
E
E
D
C
H
H
Installation 23
