Uploading a Setup to a Display

Uploading a setup programs the current setup into the color display.

AEM DashDesign communicates with the AEM CD-7 / CD-7L via USB.

To upload a setup:

· Open a display setup.

· Connect the AEM CD-7 / CD-7L to the PC using a USB cable. The AEM CD-7 / CD-7L will go into upload

mode and will show "USB cable connected"

· Select File | Upload Setup... or press Ctrl + U

· A dialog box will appear indicating the setup is being sent

· On the AEM CD-7 / CD-7L, the upload progress will be shown as a percentage. This progress percentage

IS NOT shown in the AEM DashDesign interface.

· Once the setup has been received the flash will be erased; the AEM CD-7 / CD-7L will show "Erasing

flash". This process will take a few seconds.

· Once the flash has been erased, it will be programmed; the AEM CD-7 / CD-7L will show the progress of

programming as a percentage. Do not remove the power to the display at this point.

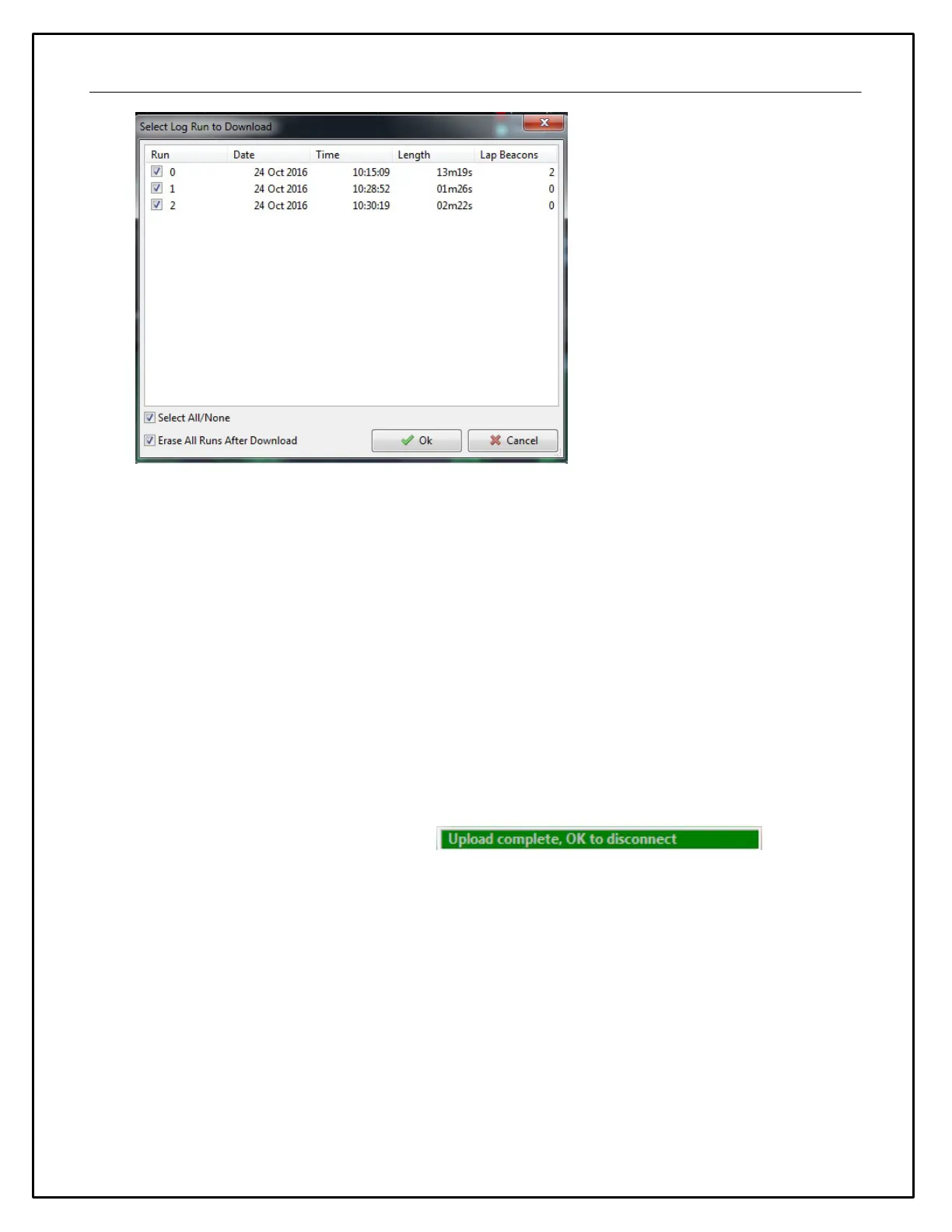

· Once the programming has finished, an message will be

displayed as shown in the example below. Unplug the USB cable to reboot the dash with the new setup.

Do not disconnect the USB cable before this message is displayed.
