Track Mapping VDM, GPS Module or Internal GPS
An AEM Vehicle Dynamics Module (VDM; 30-2206) or GPS Module (30-2207) can be paired with a CD dash to
provide GPS data for race track mapping and lap timing. The module is added to the Port 1/AEMnet network using
the AEMnet connector "Y" in its cable – see Figure 8 and VDM/GPS Module instruction manual for full installation
guidelines. Products with internal GPS capabilities like the CD-5 can be connected as shown in Figure 9.

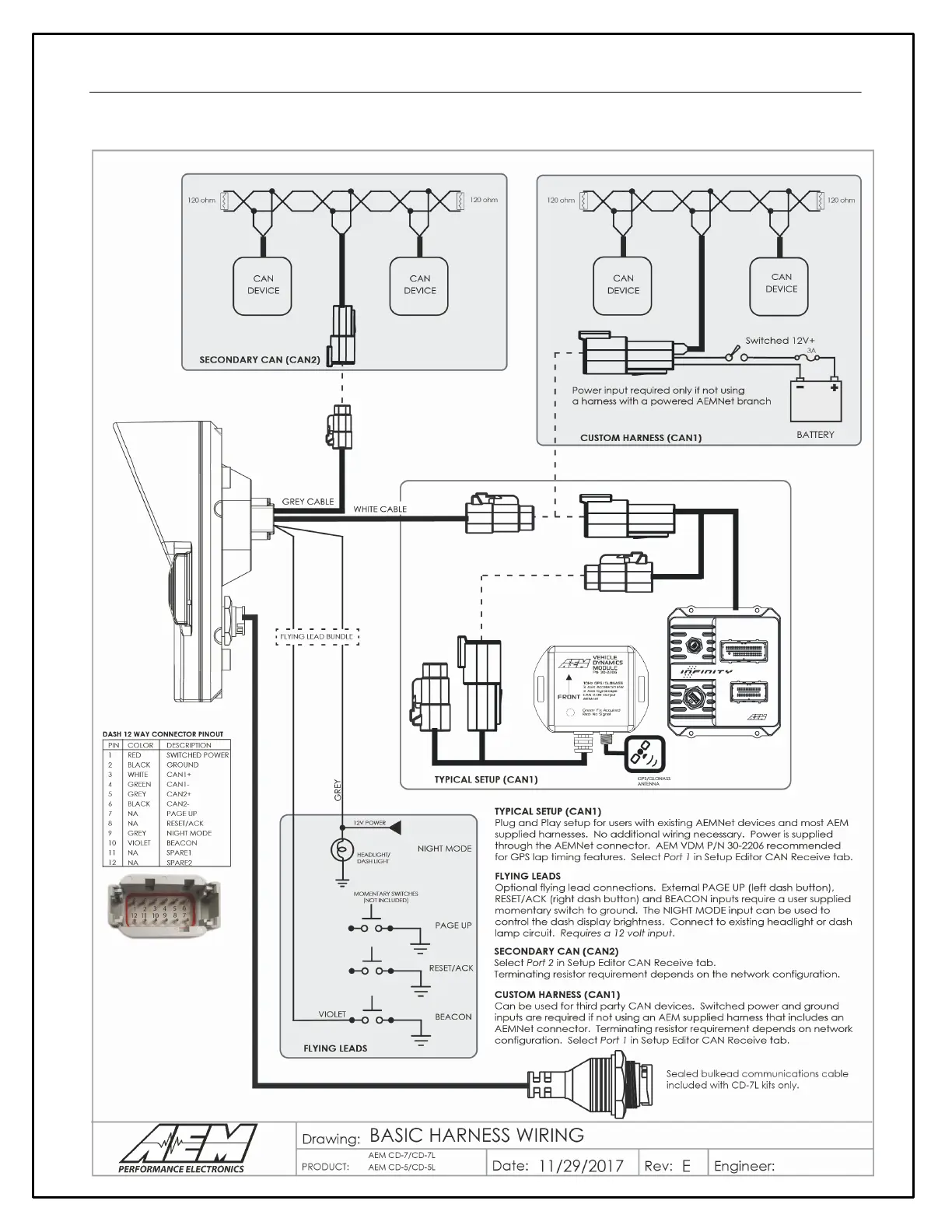

Figure 8 - Track Mapping with 30-2206 VDM or 30-2207 GPS Module
