Section 2: Operation
2.1 Front Panel Connectors
1 TRIGGER Bi-directional external trigger port
(BNC socket)
2 ERR Error LED
ACT Active LED
PWR Power LED
3 ANALOG OUTPUT (25 position D-Sub Female)
LED
Description
ERR
Light up when module encounters any one of the following
hardware issues:
1. Temperature sensed by the temperature sensor on
the module is more than 75°C
2. Phase-locked loop (PLL) on the module fails to lock
ACT
Blink when module in action
PWR
Light up when module is power on
Table 1: Status LED

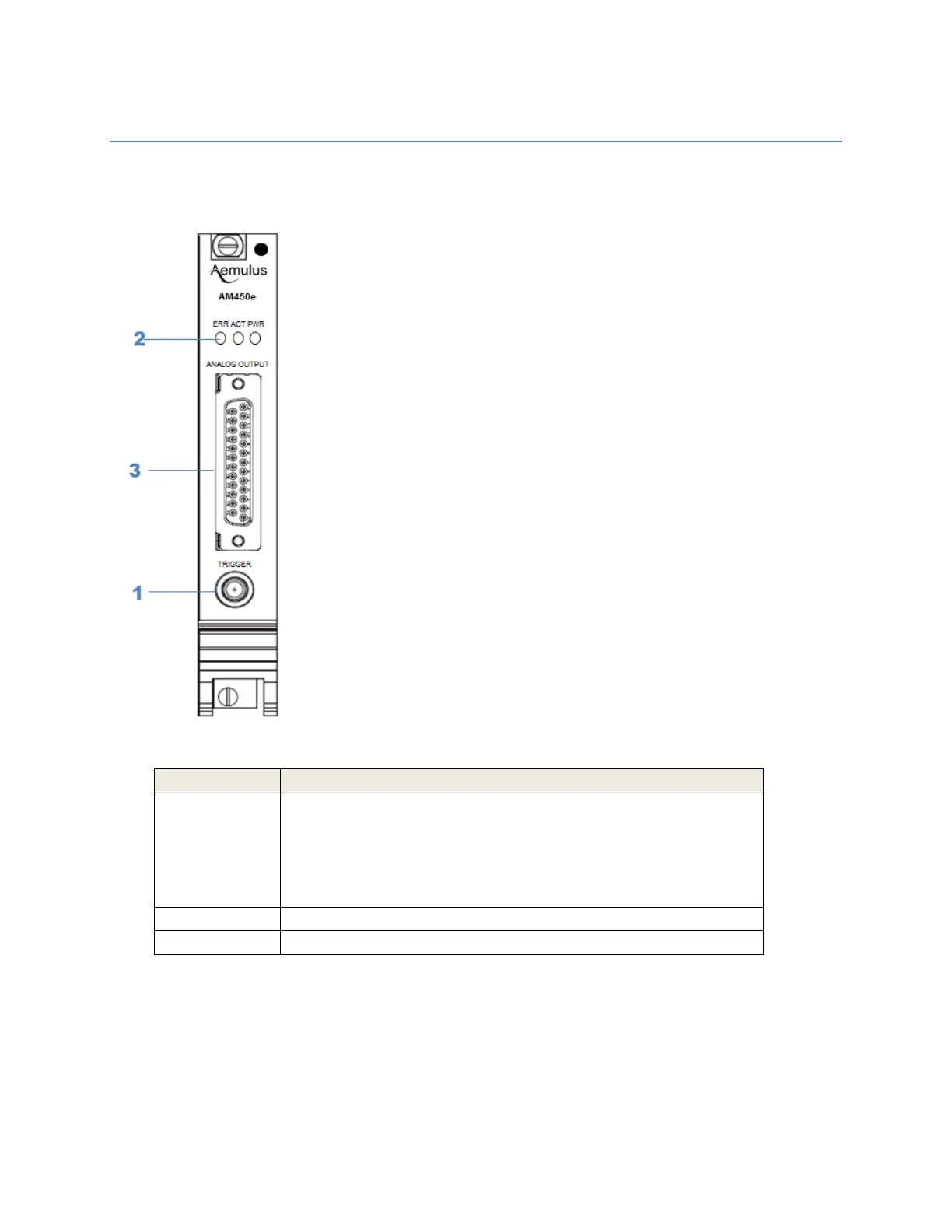

Figure 1 : AM450e Front Panel
