25/04/2017 15)43Nano Dimmer user guide. : Aeotec by Aeon Labs
Page 3 sur 11https://aeotec.freshdesk.com/support/solutions/articles/6000162176-nano-dimmer-user-guide-
Nano Dimmer installs behind a lighting switch or dimmer. It works with both 2-wire and 3-wire (with or without
neutral) lighting setups, though each installation of Nano Dimmer is accordingly slightly dierent:
To install for the full loads, as opposed to for the control of small loads such as an LED Bulb or a CFL bulb,
and with a neutral, follow this guide: How to wire Nano Dimmer with neutral wire
(https://aeotec.freshdesk.com/solution/articles/6000165394/en). Note that this is the only guide that should be
followed if installing Nano Dimmer for use with a ceiling fan.

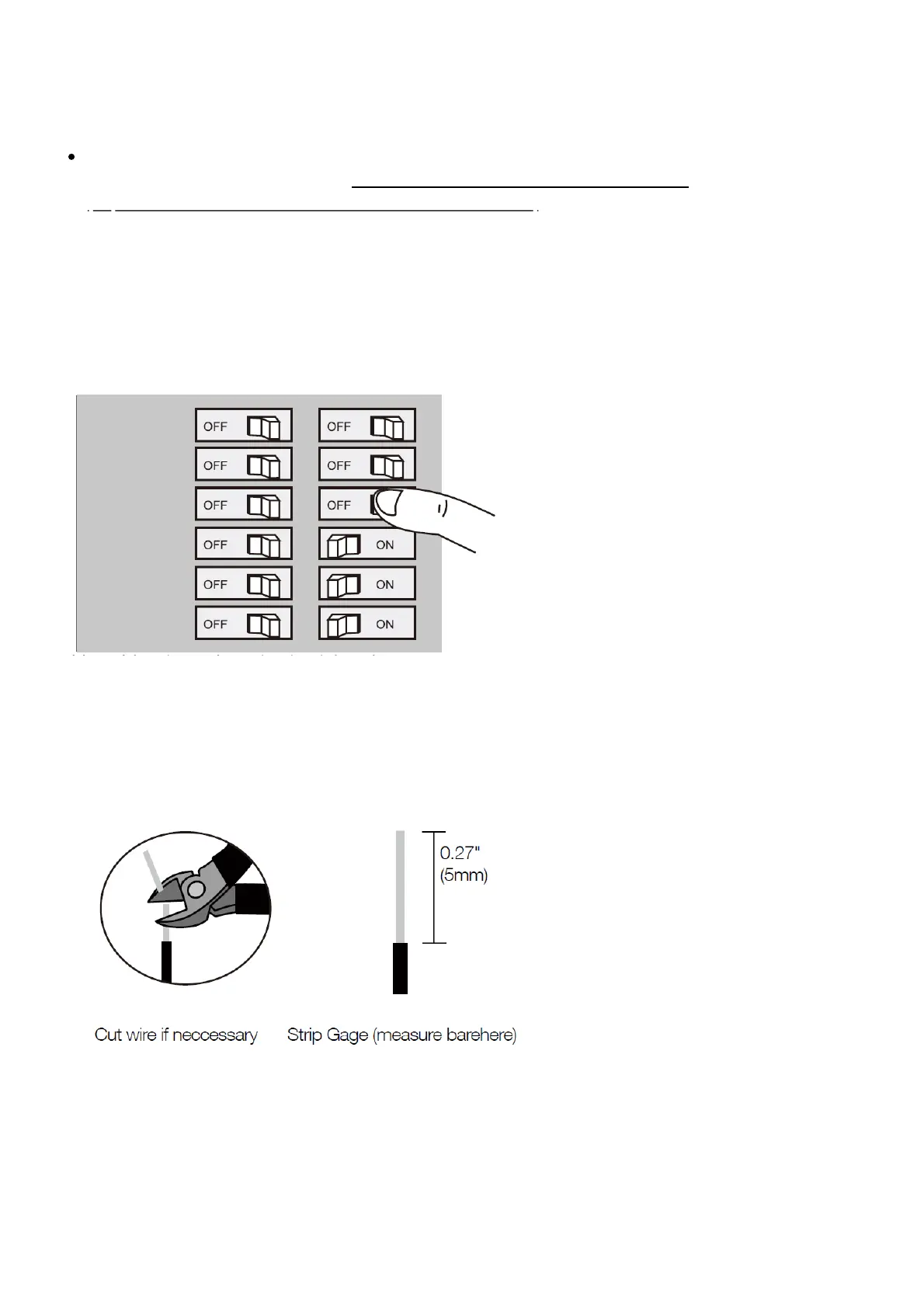

1. Shut o the main circuit breaker of your home for safety during the installation and ensure the wires are not short
circuited during the installation which will cause damage to the Nano Dimmer.
Note: Your home’s main circuit breaker must support the overload protection for safety.
2. Preparing connection wires
14 AWG power wires for Input/Output.
18 AWG copper wires for external manual switch.
Use the wire stripper cut the metallic part of the connection wire and make sure the length of the metallic part is
about 5mm.
Note: All connection wires needs to be flexible cable.
Wiring diagram of 3-Wire system
