Note: Compatible with Inductive or Fan Motor loads under 100W.

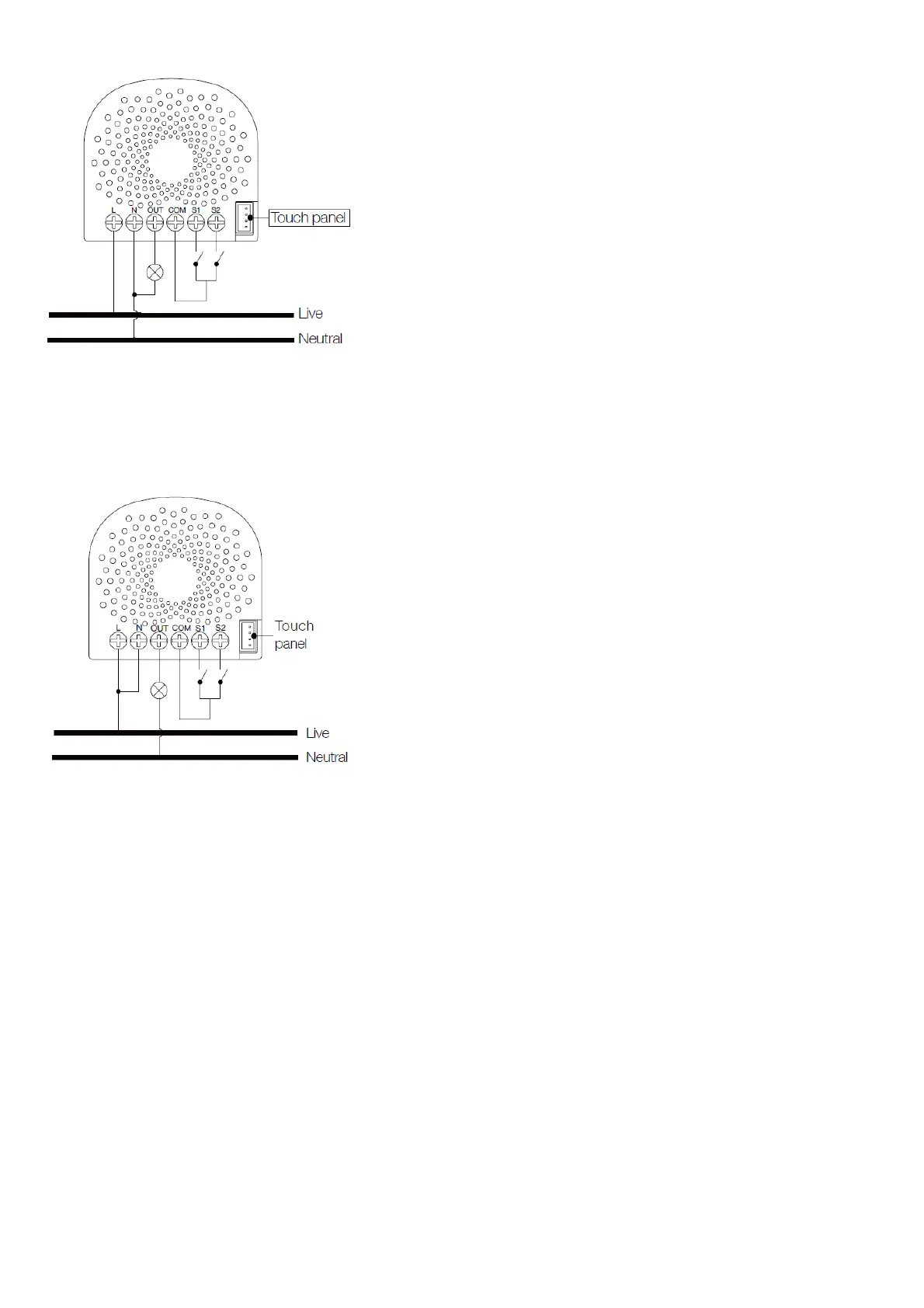

Wiring diagram of 2-Wire system
Note: The “N” terminal should be connected to the “L” terminal when the Nano Dimmer is installed by 2-Wire
system.
WARNING: Inductive Loads or Fan Motors are unstable on 2-wire connection, Fan loads should only be used on
3-Wire connection.
You may need to connect a small power load (E.g. a LED light or a compact fluorescent lamp) to be controlled. In
this case, the Nano Dimmer may not get enough power from the AC power supply, so a bypass can be added to
act as a dummy load to keep your Nano Dimmer get enough power from the power supply. It can also keep your
light from flickering when diming o the light.
