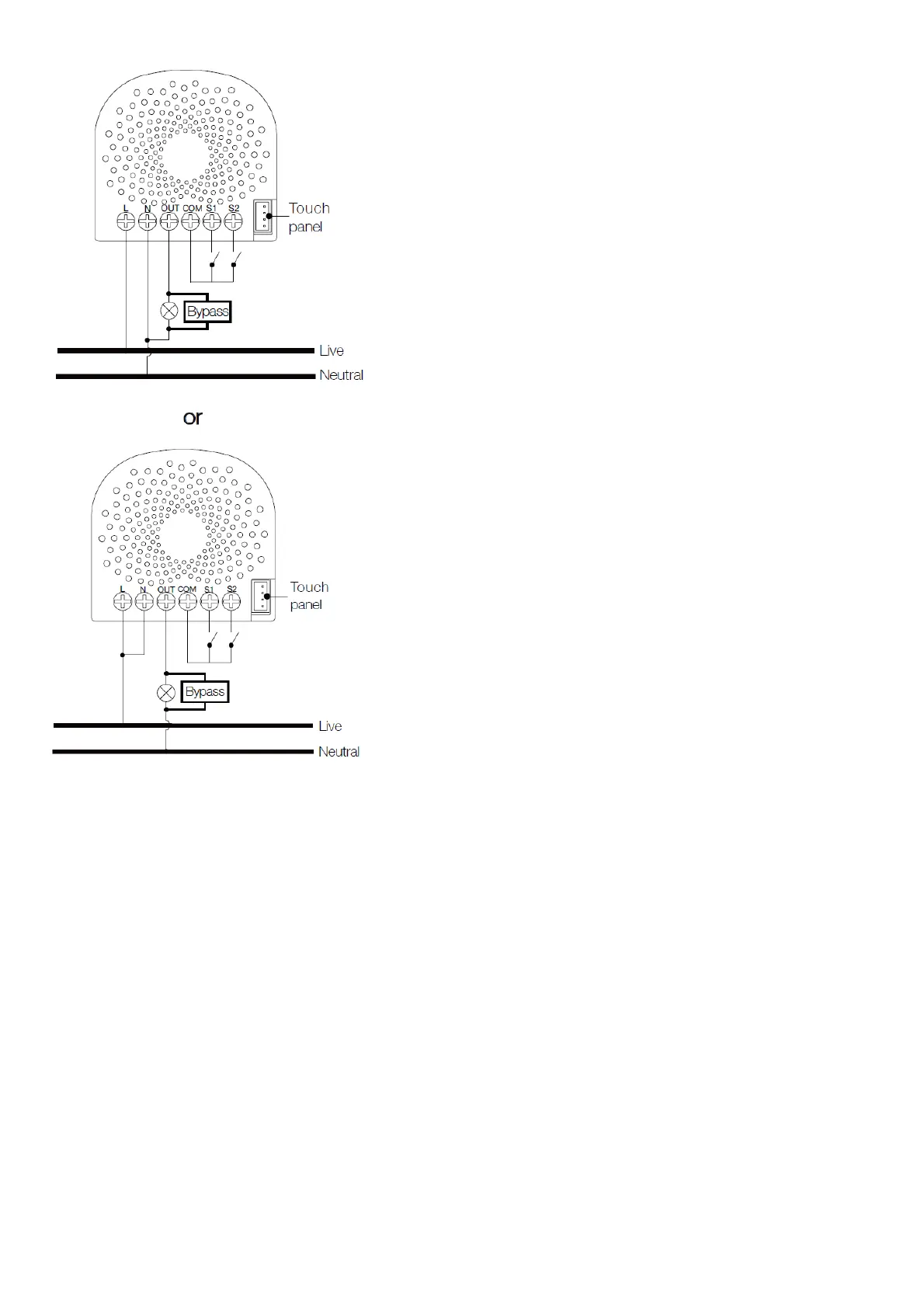

All above wiring diagrams show that the Nano Dimmer uses 2-Way or momentary button switches as the external
manual switch.
The below diagram will show you that the Nano Dimmer uses the SPDT (Single-Pole Double-Throw) switches as
the external manual switch.
Wiring diagram of SPDT as the external manual switch
