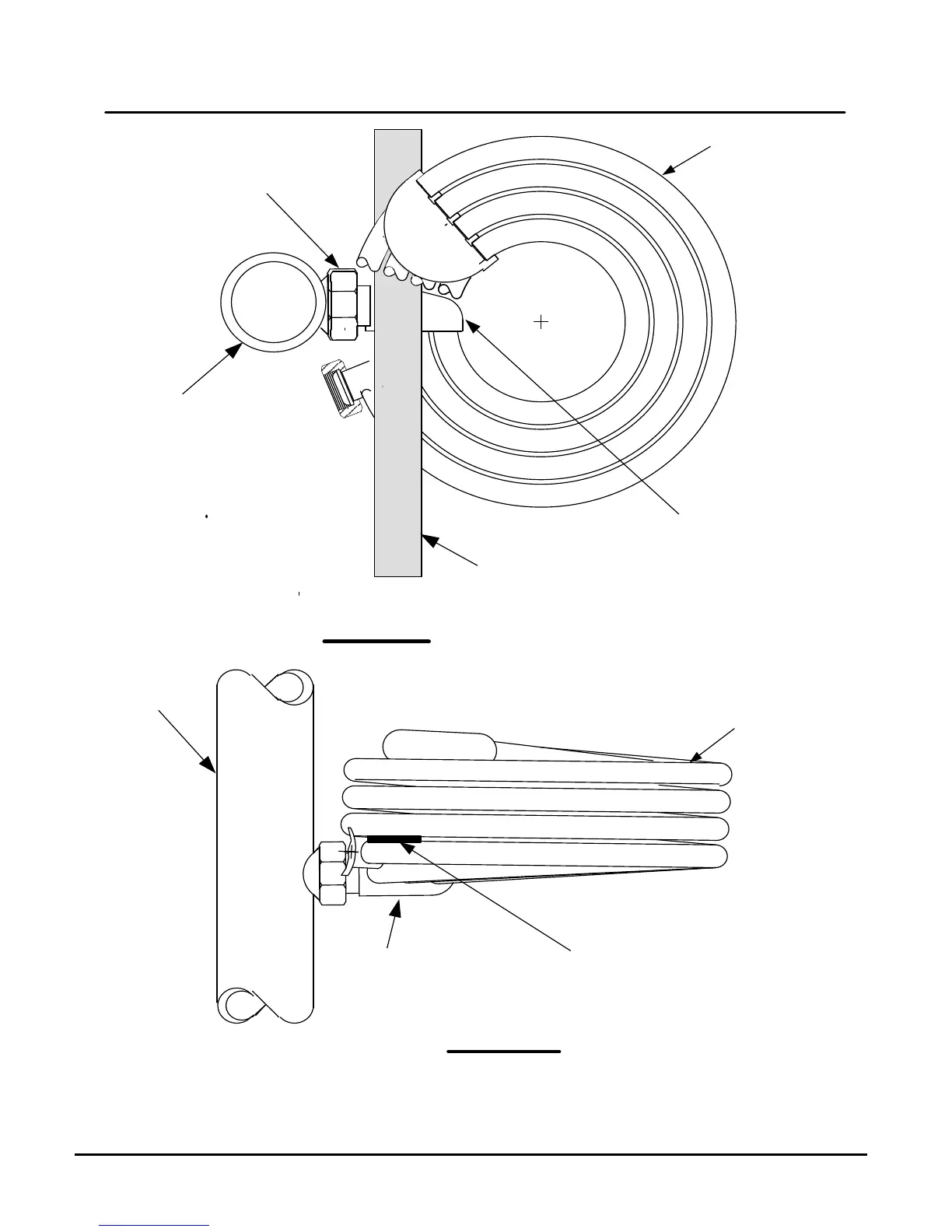

Figure 19: Positioning of Coil Retaining Tool
COIL RETAINING
TOOL
BOX HEADER
RISER
UNION
NUT
INSERT COIL RETAINING
TOOL HERE
BOX
HEADER
RISER
TOP VIEW (PARTIAL CUT-AWAY)
SIDE VIEW
COIL
ASSEMBLY
COIL
ASSEMBLY
