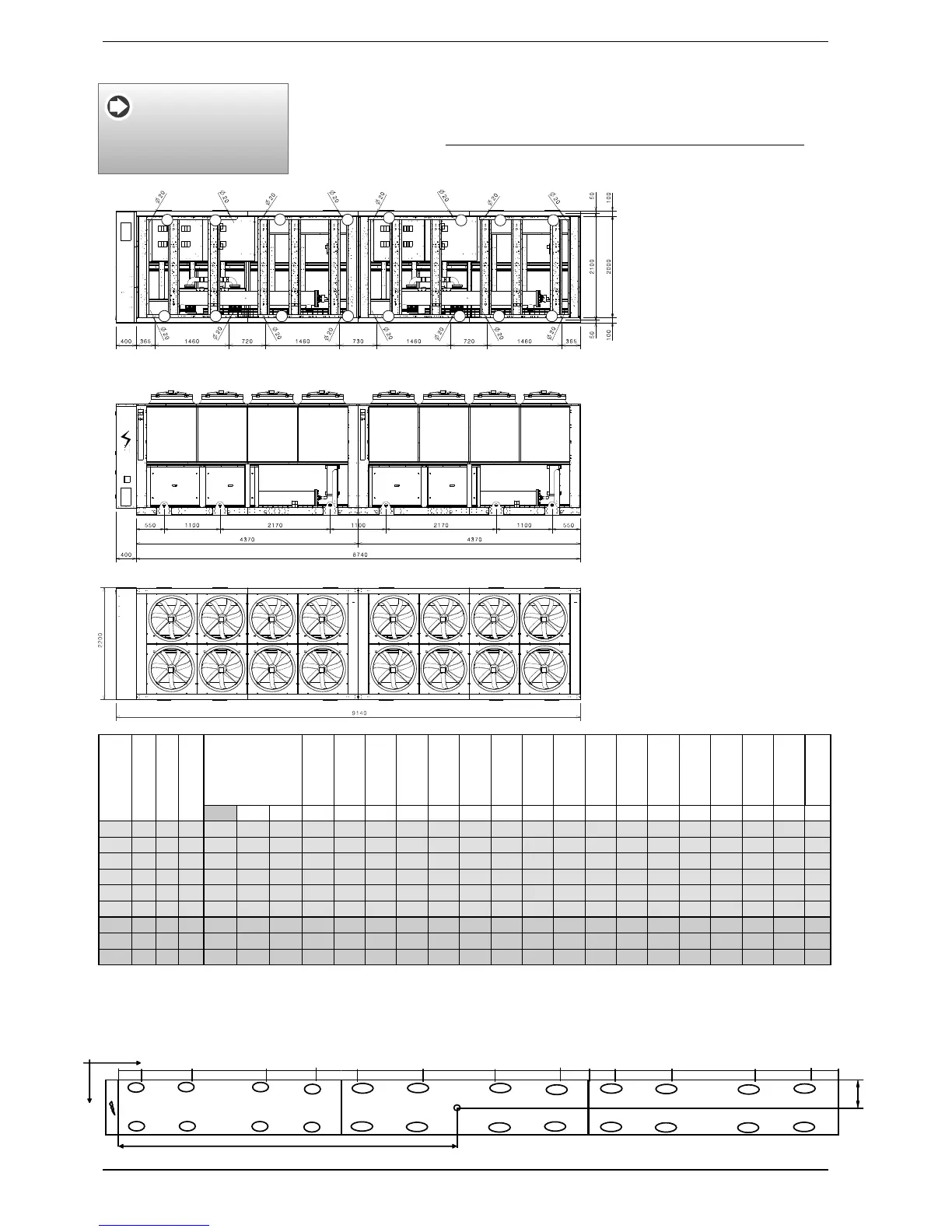

19.8. CARPENTRY BY 9140 (mm)
NS 4502 - 4802
°°(°/L°°00…PA…PK)
NS 3602 °°(A/E°°00…PA…PK)
WARNING:
ALWAYS USE ALL THE
PROVIDED EYEBOLTS
FOR THE LIFTING OF
THE UNIT
1 7
8
9
10
12 14 16
13 1511
2
3
4
5
6
POSITION OF VIBRATION DAMPERS
POSITION FOR LIFTING
NS
Heat recovery
Version
Hydronic kit
(1)
Weight and centre
of gravity
when empty
(kg)
Support 1 Support 2 Support 3 Support 4 Support 5 Support 6 Support 7 Support 8 Support 9
Support 10 Support 11 Support 12 Support 13 Support 14 Support 15 Support 16
Kit AVX
kgx y %%%%%%%%%%%%%%%%
4502 ° °/L 00 8750
4092 1228 5 7 13 16 / / 44451518//45516
4802 ° °/L 00 9090 4015 1217 5 61417/ / 45451717//44516
4502 D °/L 00 8860 4092 1228 5 7 13 16 / / 44451518//45516
4802 D °/L 00 9210 4015 1217 5 61417/ / 45451717//45516
4502 T °/L 00 9620 4136 1219 4.9 6 13.3 16.6 / / 4.6 3.7 3.5 4.3 15.5 19.3 / / 3.7 4.6 516
4802 T °/L 00 10110 4034 1208 4.8 5.9 14.5 17.7 / / 4.1 5.0 3.2 3.9 14.9 18.2 / / 3.5 4.3 516
3602 ° A/E 00 8610 4057 1228 6 71316/ / 44561317//45516
3602 D A/E 00 8690 4057 1228 6 71316/ / 44561317//45516
3602 T A/E 00 9230 1069 1221 5.2 6.5 13.4 16.7 / / 3.7 4.7 4.2 5.3 13.8 17.2 / / 4.1 5.2 516
(1) the weight of the
pumps to be added
to the version without
hydronic kit
− PA 69 Kg
− PB 138 Kg
− PC 75 Kg
− PD 150 Kg
− PE 91 Kg
− PF 182 Kg
− PG 100 Kg
− PH 200 Kg
− PJ 108 Kg
− PK 216 Kg
