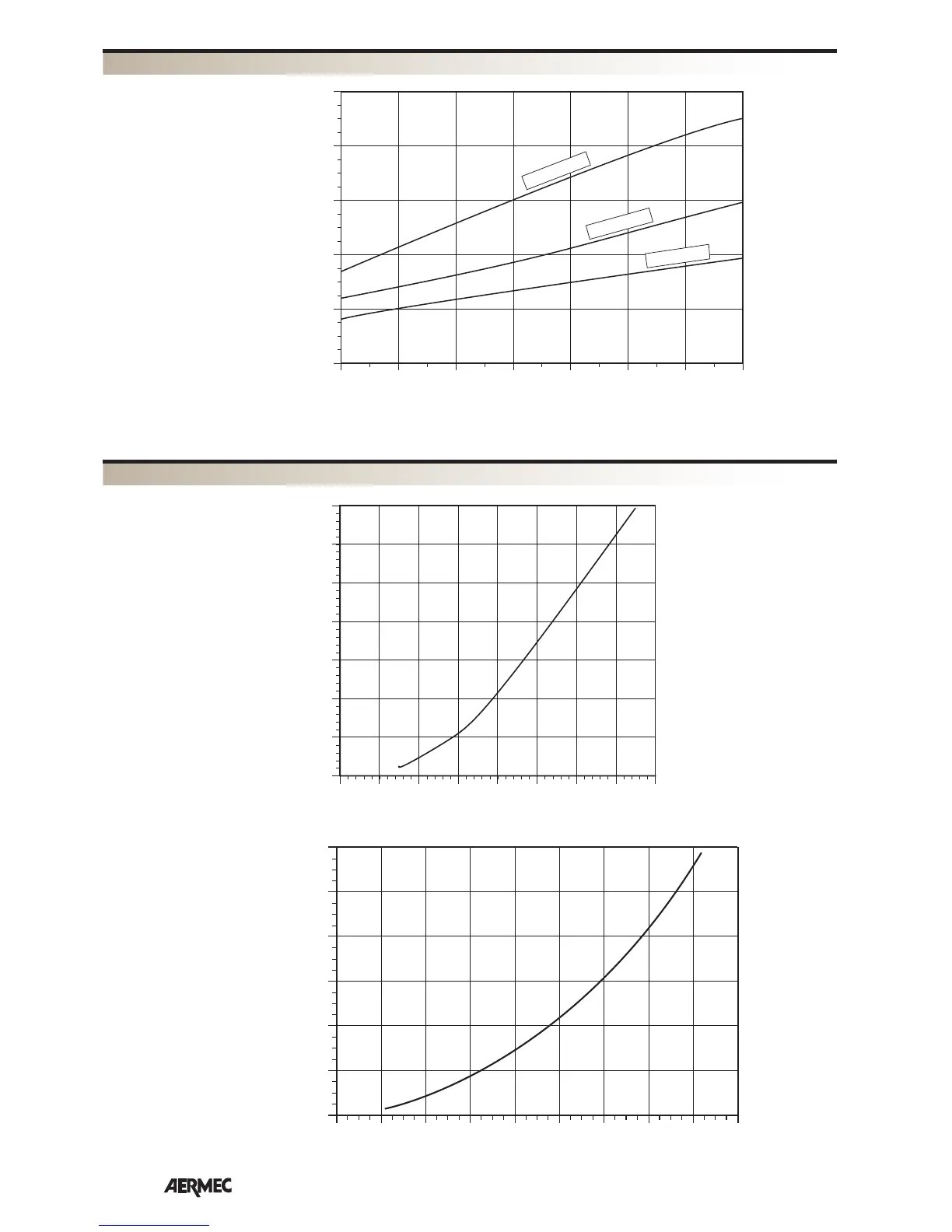

CONDENSER WATER PRESSURE DROPS WITH OPEN VALVE
CONDENSER WATER CONSUMPTION
0
200
400
600
800
16 18 20 22 24 26 28 30 °C
l/h 1000
CWX 1217
CWX 1817
CWX 2417
R407C
Condenser entering water temperature
Water consumption (condensing water valve set to 19 bar)
Water consumption (30 - 35°C)
CWX 1217 752 l/h
CWX 1817 1165 l/h
CWX 2417 1474 l/h
0
5
10
15
20
25
30
0 100 200 300 400 500 600 700 800 l/h
kPa 35
CWX 1217
Water flow
Pressure drops
120
100
80
60
40
20
0
0
200 400 600 800 1000 1200
1400
1600 1800
l/h
kPa
CWX 1817 - 2417
Water flow
Pressure drops
