AERMEC EX 070 M User Manual

12
1
2
4
5
6
1
23
45
6
7
8
SW1
ON/OFF
NO
NC
AL
TV
PC
W
R
SI
SF
ON
OFF
SW2
ON
OFF
3
Dip SW1
ON OFF
1 --- ---
2 --- Standard
3 --- Standard
4 --- Standard
Pompa di calore Solo freddo
5
Heat pump Cooling only
Pompe à chaleur Froids
WP- Betrieb Klimageräte
Ventilazione termostatata a caldo Ventilazione normale
6
Fan thermostat control Continuous fan ventilation
Controle de la ventilation par thermostat Ventilateur toujours en marche
Thermostatische Steuerung vom Lüfter Lüfter immer im Betrieb
Contatto esterno NC Contatto esterno NO
7
NC external contact NO External contact
Contact extérieur NC Contact extérieur NO
Externer Kontakt als Öffner NC Externer Kontakt als Öffner NO
8 --- Standard
Dip SW2
ON OFF
1 --- ---
2 --- Standard
3 Standard ---
Installazione Pensile Pavimento
4
Ceiling installation Floor installation
Installation sur plafond Installation au sol
Deckenmontage Bodenmontage
EX 070 M*
5
EX 070 M
EX 120 M
EX 180 M
EX 240 M
6 --- Standard
* = con ventilazione maggiorata • over power fan unit • avec ventilation majorée • Höherer Ventilatordrehzahl
ATTENZIONE
WARNING
ATTENTION
ACHTUNG

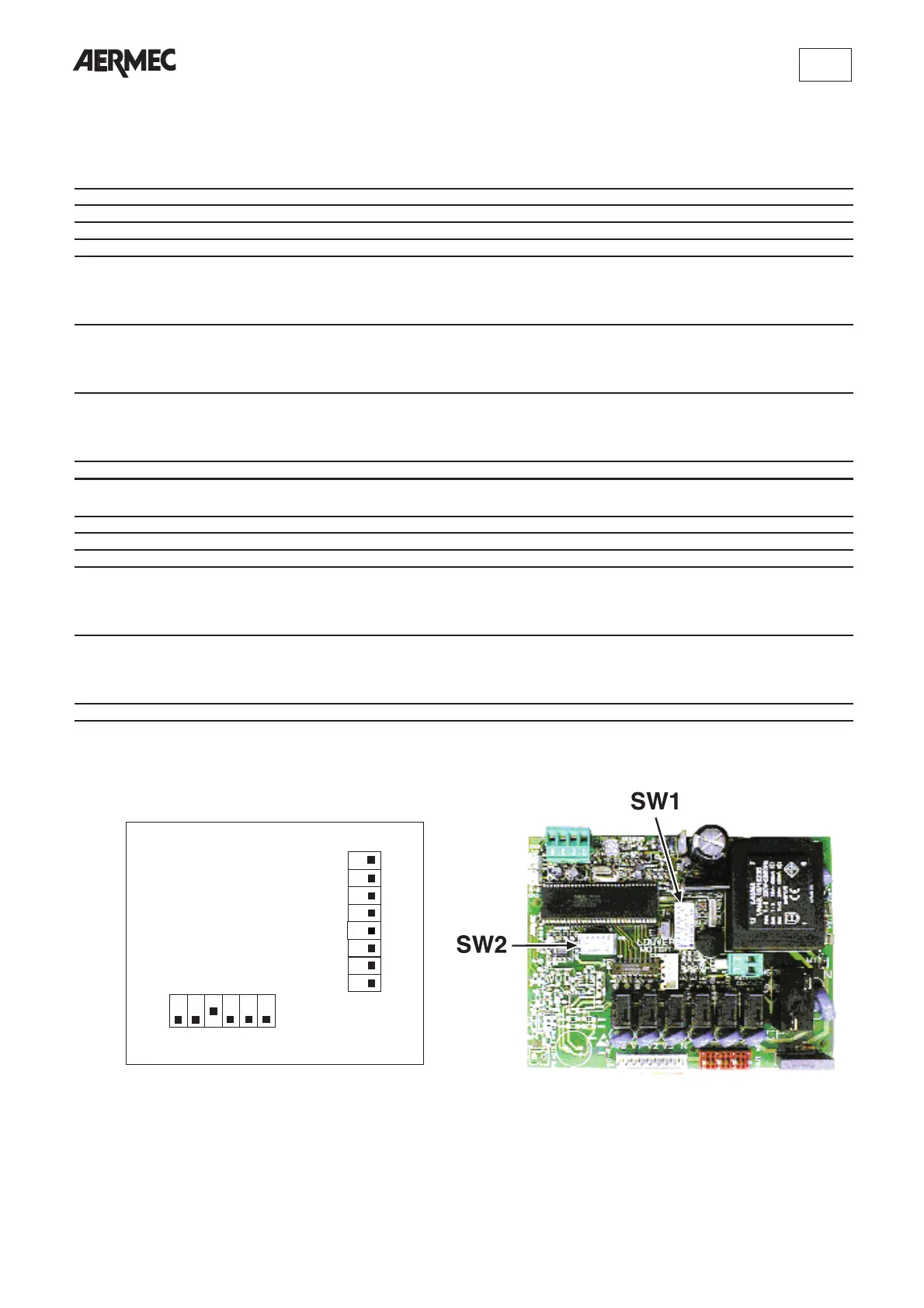

CONFIGURAZIONE SCHEDA ELETTRONICA • ELECTRONIC CONTROL CARD
CONFIGURATION PLATINE ELECTRONIQUE • KONFIGURATION DER STEUERPLATINE
