4
Main customisations envisaged:
- electric heater for heating (accessories RXL and RXLE) - supplementary or replacement, they
can be installed in 2- or 4-pipe units
- 3-way valve for heating coils for 4-pipe systems (accessory VHL1)
- 2-way valve for heating coils for 4-pipe systems with variable water flow rate (accessory VHL2)
- connection flange for delivery air conduit towards a second nozzle, even in an adjacent room
(accessory KFL)
- connection flange for external fresh air conduit, even with the fan switched off (accessory KFLD)
- electrostatically pre-charged air filter, regenerated with class-2 fire resistance (UL 900),
(accessory).

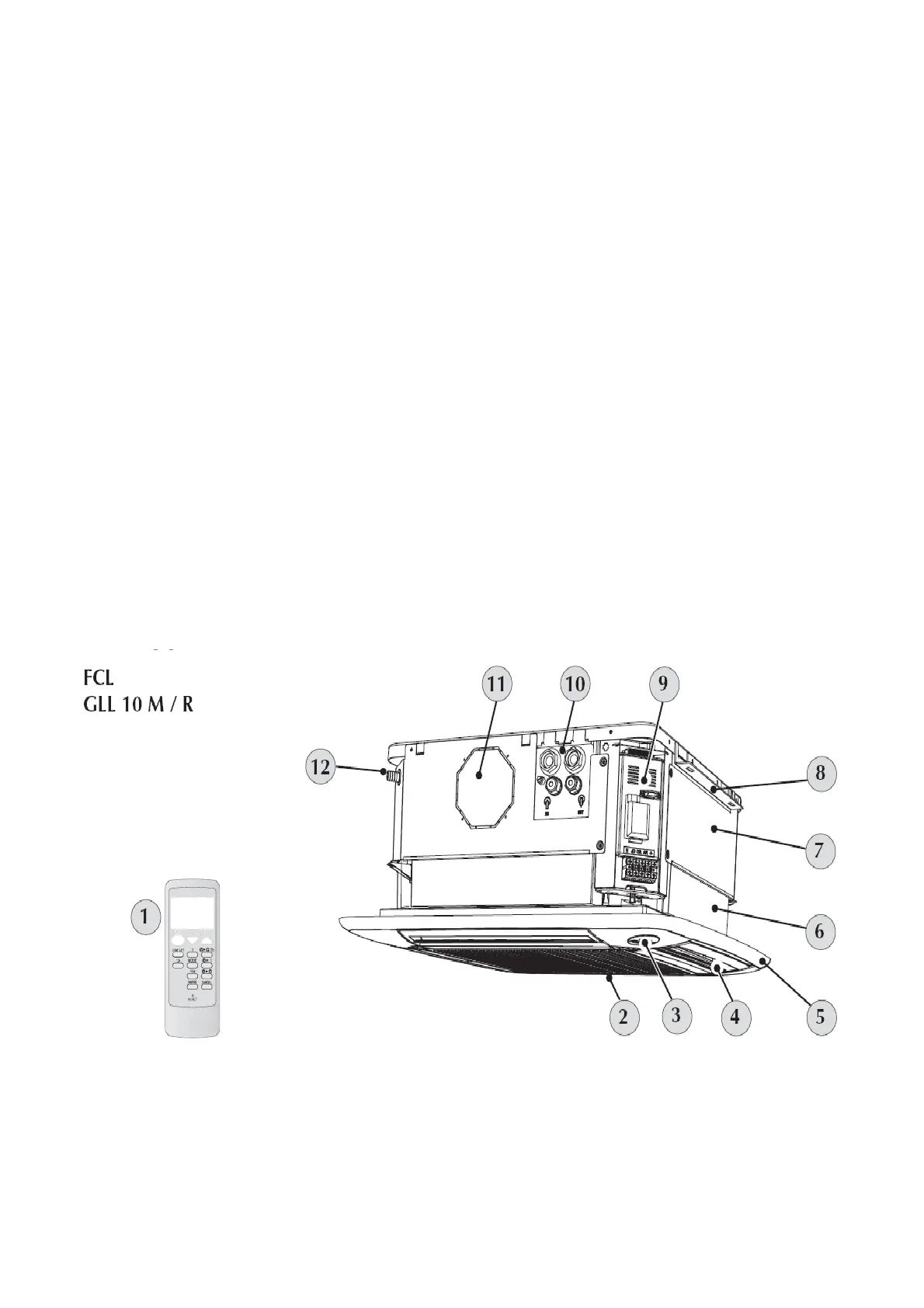

MAIN COMPONENTS
1. Remote control (GLL10M; GLL10R) 5. Grille frame 9. Electric box
2. Grille with air filter 6. Basin 10. Plumbing connections
3. Receiver (GLL10M; GLL10R) 7. Base 11. Push-out
4. Air delivery deflector 8. Fixing brackets 12. Condensate discharge
