Meaning of the dip-switches in the fan coil (FCL) configuration
With dip-switches 3, 6, 8 of SW2 in FCL configuration, the dip-switches SW1 and SW2 assume this
meaning.

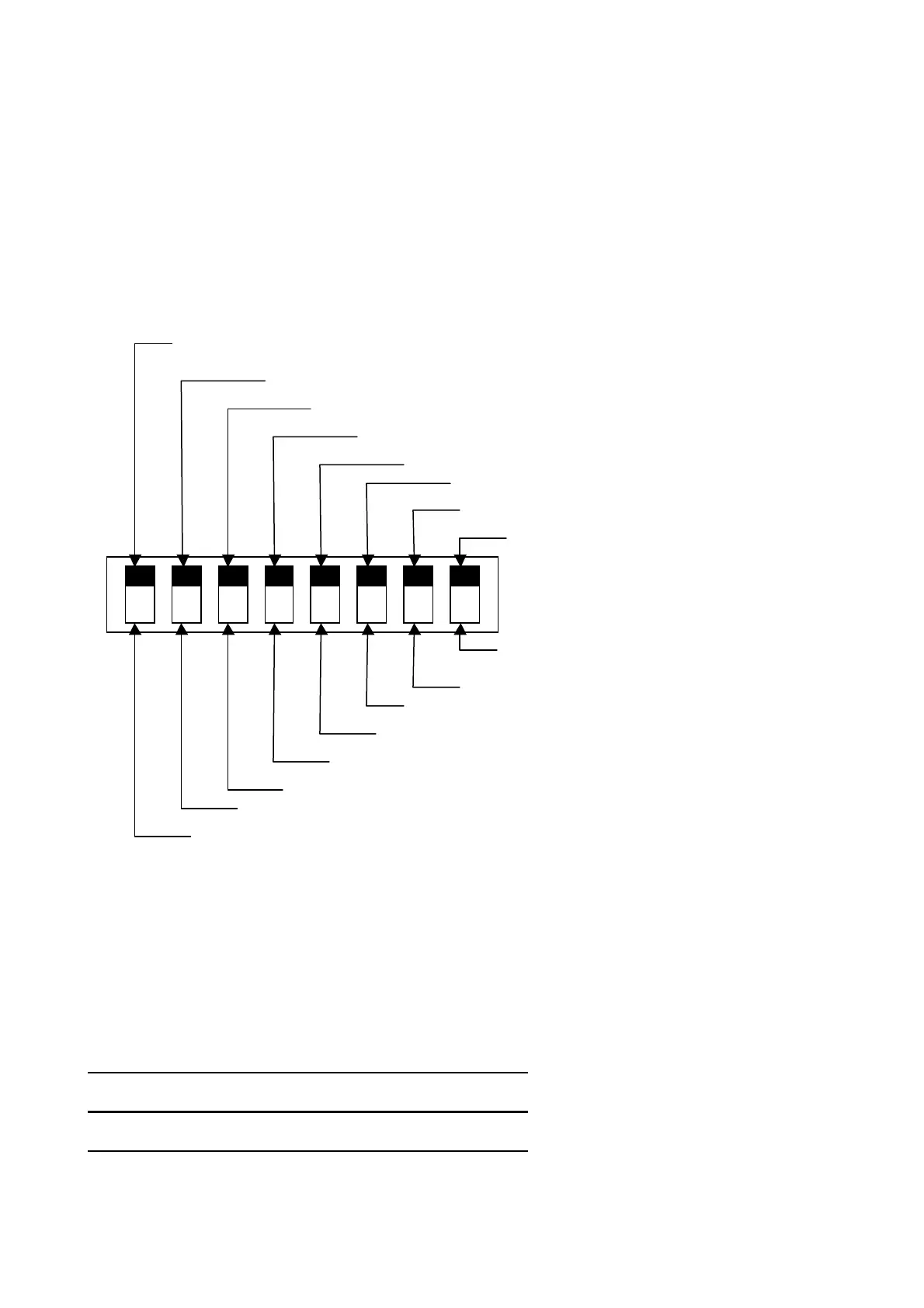

The meaning of the SW2 dip-switch
Contatto esterno= On Off Remoto (*)
Contatto esterno= Allarme (**)
Contatto Esterno normalmente aperto
Contatto Esterno normalmente chiuso
Ventilazione continua
Ventilazione termostatata a caldo
Sonda acqua a monte della valvola
Sonda acqua sulla batteria
Libero
Libero
2 tubi
4 tubi
Normale
Resistenza
Resistenza in sostituzione
Resistenza in integrazione
DIP SW1
1 2 3 4 5 6 7 8
Note: (*) External contact in Normal condition = ON mode ON
(**) External contact in Normal condition = Alarm not present
DIP1 RESISTANCE: OFF in integration to the heat pump, ON in replacement
DIP2 RESISTANCE: OFF not present , ON present
DIP3 : OFF 2 pipes, ON 4 pipes
DIP4 : not used
DIP5 WATER PROBE: OFF after water valve, ON before water valve
DIP6 VENTILATION: OFF continous, ON thermostated in heating mode
Dip7 Dip8
On-Off remote OFF OFF Open = ON mode
ON OFF Closed = ON mode
External alarm OFF ON Closed = Alarm
ON ON Open = Alarm
