Setting the dip-switches on the board.
The microprocessor of the board recognises the type of machine from the way the dip-switches are
set. The configurations that can be set are:
FCL cassette-type fan coil
FCL cassette-type twin fan coil
It is also possible to configure machines ECL, EXC, CUCCIOLO, EXM, ANCX, but this procedure
lies outside the scope of this document.

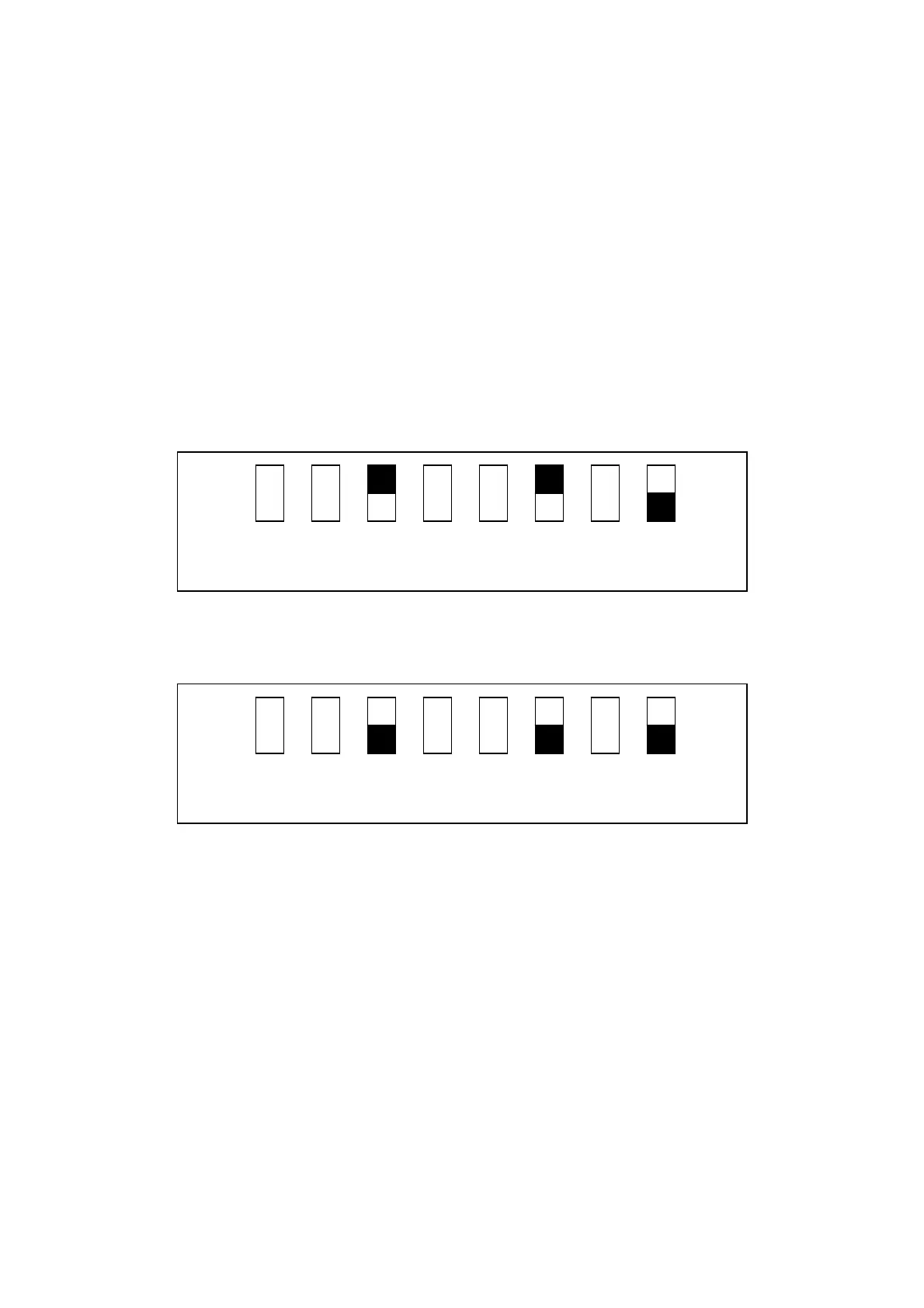

The type of machine on which the control board is installed is determined by switches 3, 6, 8 of
SW2. The other switches are used for other purposes, and are illustrated in the following
paragraphs.
FCA
FCA
TWIN
1 2 3 4 5 6 7 8
OFF
ON
OFF
ON
1 2 3 4 5 6 7 8
