IFCLITY1106 - 5773010_01
0,5 1 1,5 2 2,5
3
Water flow rate [l/h]
t °C (water inlet temperature- air inlet temperature)
Ph - Heating capacity [kW]
FCLI 34
Water flow rate [l/h]
t °C (water inlet temperature- air inlet temperature)
Ph - Heating capacity [kW]
FCLI 42
0,5 1 1,5 2 2,5 3 3,5
Water flow rate [l/h)
t °C (water inlet temperature- air inlet temperature)
Ph - Heating capacity [kW]
FCLI 44

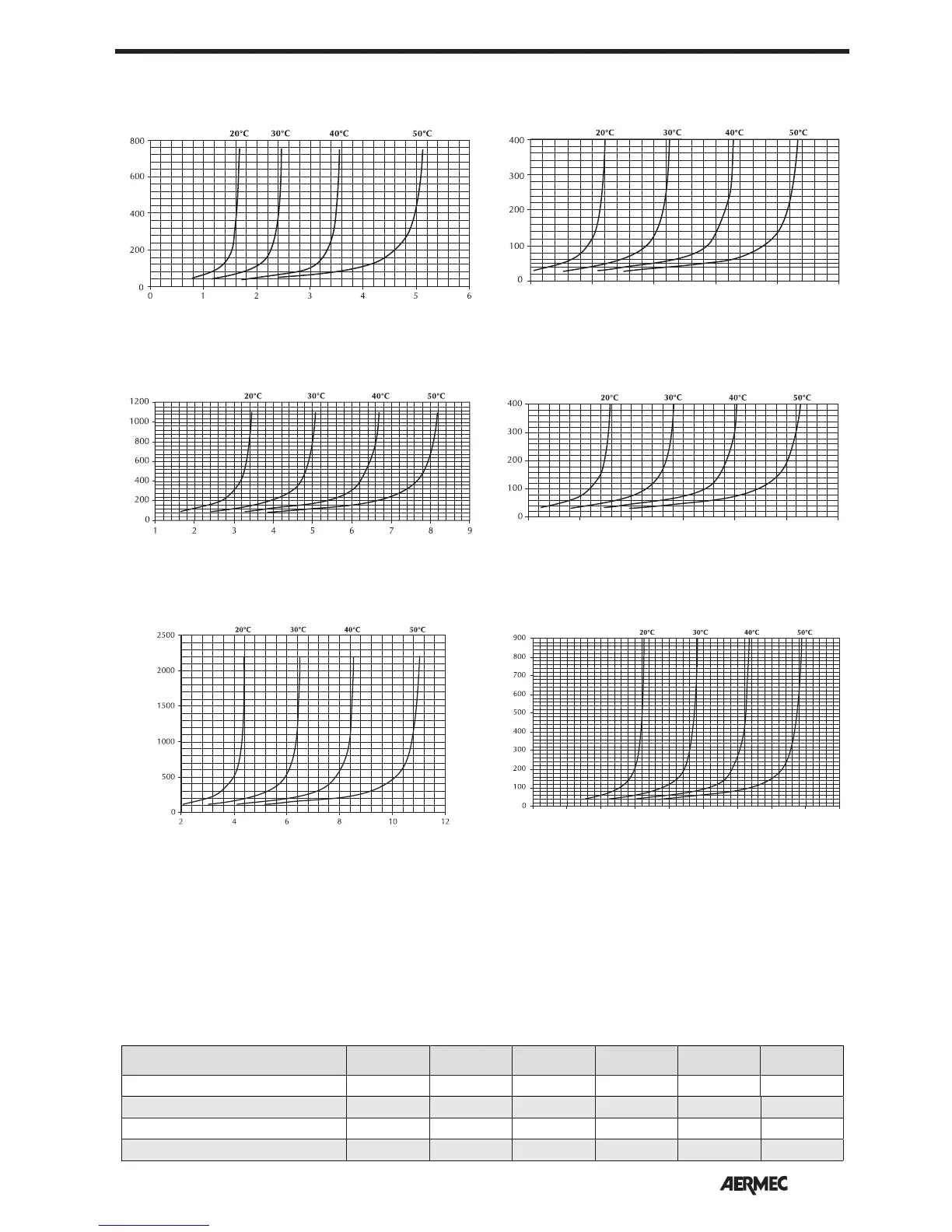

HEATING CAPACITY "Module 600"
Water flow rate [l/h]
t °C (water inlet temperature- air inlet temperature)
Ph - Heating capacity [kW]
FCLI 32
HEATING CAPACITY CORRECTION FACTORS
Water flow rate(l/h)
t °C (water inlet temperature- air inlet temperature)
Ph - Heating capacity [W]
FCLI 62
0 0,5 1 1,5 2 2,5 3 3,5 4 4,5
Water flow rate(l/h)
t °C (water inlet temperature- air inlet temperature)
Ph - Heating capacity [W]
FCLI 64
The heat yields refer to the maximum speed. For the rest of the speeds the values must be multiplied by the following factors:
FCLI 32 34 42 44 62 64
Speed 4 (Maximum) - - 1 1 1 1
Speed 3 1 1 0.81 0.89 0.80 0.89
Speed 2 0.82 0.84 0.61 0.78 0.66 0.81
Speed 1 (Minimum) 0.71 0.75 0.50 0.72 0.55 0.75
