- Choose the place for unit installation
according to the layout of the room, the
number of units to be installed, and any
limitations imposed by the architecture.
Check the chosen place is suitable for
installation and maintenance work on
the unit.
- Install four M8 threaded rods into the
ceiling to hold the frame.

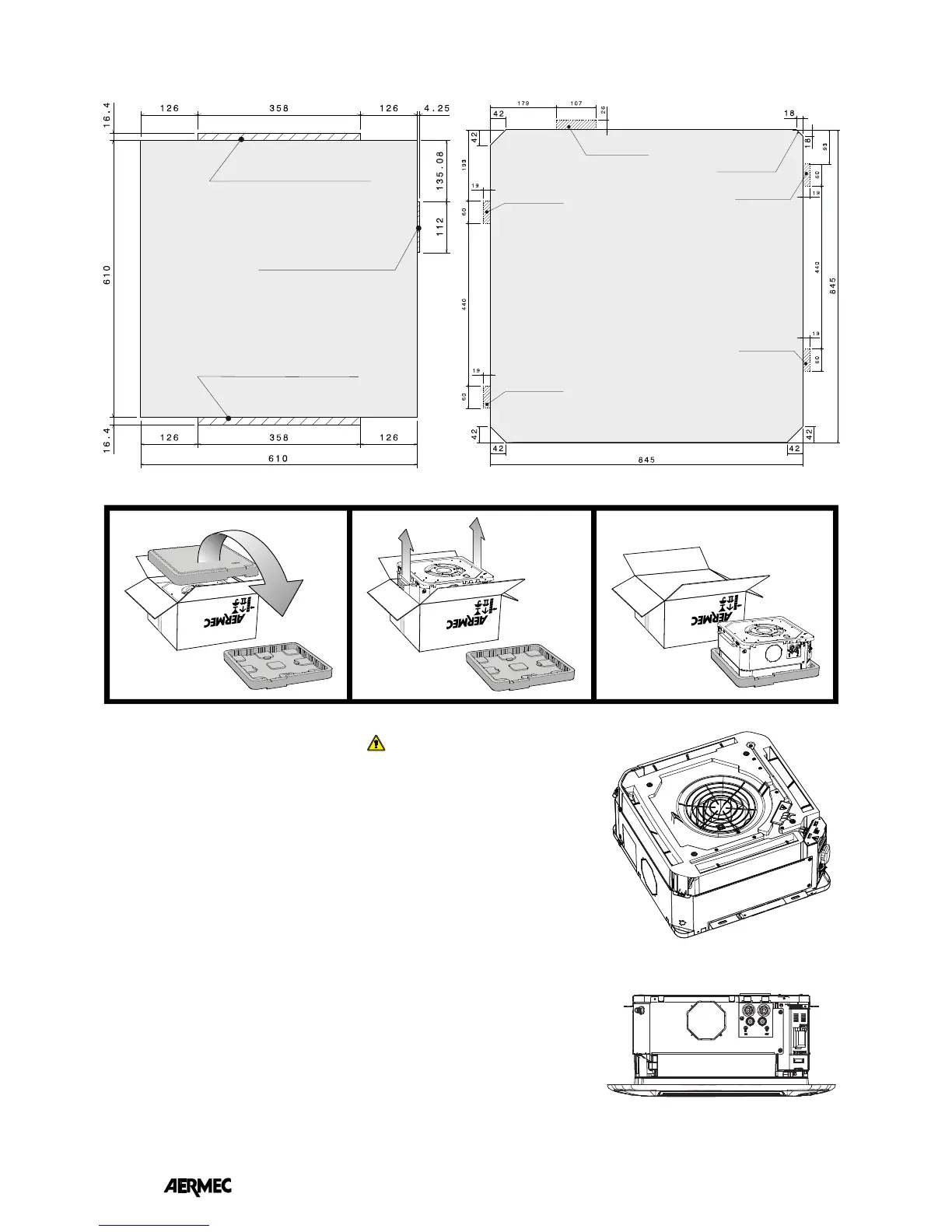

To install the FCLI unit, proceed as follows:
- upturn the box of the FCLI cassette-type
fan coil
- open the cardboard box
- remove the box; you are advised to make
cuts on the corners of the box and remove
the cardboard in separate pieces
- remove the upper part of the packaging
frame (that protects the unit during
transportation)
- remove the fan grille and take out the
Inverter
dŚĞ &>/ ϲϬϬdžϲϬϬ ĚƌŝǀĞƌ ŝŶǀĞƌƚĞƌ ŝƐ
integrated to the group motor-fan.
- If it is necessary to fit any accessories
(fresh air kit or delivery to an adjacent
room, hot water valve), carry out these
operations before installing the machine
on the ceiling.
WARNING: consult the relevant
manuals of the accessories
Do not handle the unit using the water
connections; use the specific brackets for
this purpose.
- lift the unit carefully by means of the
brackets and, keeping it slightly inclined,
attach it to the 4 threaded bars using 8
nuts (4 of which are self-locking). Use
the nuts to adjust the height of the unit;
finally, check that the unit is installed in a
horizontal position
- feed the hydraulic pipes through the
suspended ceiling to the attachment
plate on the unit
- make the plumbing connections as
described in the relative chapter
- Take the condensate discharge piping to the
relative fitting on the attachment plate
- bleed the system (the drain valve for
the 2-pipe circuit is on the outside of
the attachment plate). The drain valve
for the heat circuit of 4-pipe systems
is inside (to access it, remove the
polystyrene tray)
- make the condensate drainage
connection as described in the relative
/E^d>>/E'd,ΗDKh>ϲϬϬΗhE/d
ZKDDE/E^d>>d/KEdDW>d
Max. dimensions of water connections
Max. dimensions of installation bracket
Max. dimensions of installation bracket
Module "600" Module "840"
Max. dimensions of
installation bracket
Max. dimensions of
installation bracket
Max. dimensions of
installation bracket
Max. dimensions of
installation bracket
Condensate drain
side
Max. dimensions of
water connections
