25
English
1
2
3
chapter
- the electric box is supplied with the grille
accessory (GLLI100)
- bring the power supply and command
cables close to the electric box; ensure
the cables are long enough to follow
the movement of the electric box on
the guides during the assembly and
disassembly phases
- connect the Inverter to the electric box,
using the cables supplied
- consult the manuals of the grille
accessories; the instructions for
assembling and connecting the electric
box can be found in the manual supplied
with the grille accessory

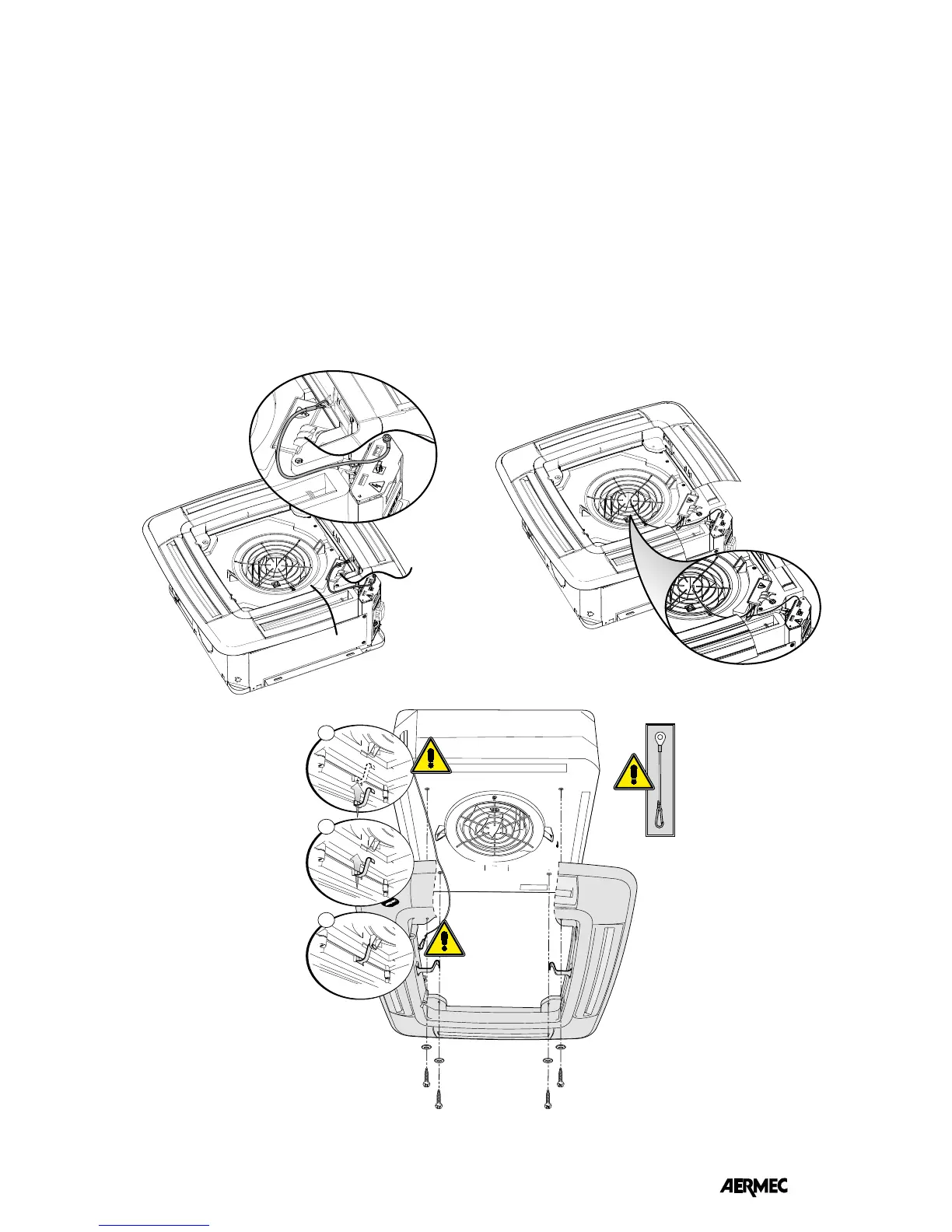

- After completing the connections and
inserting the electric box in its seat in the
FCLI unit, fix it with the two screws.
WARNING: fix the safety cable to the
fixing screw of the electric box (to the
side of the water connections). The snap-
hook of the safety cable must then be
connected to the grille frame.
- The grille frame must be positioned so
that the glass with the AERMEC logo is in
line with the corner of the electric box.
- Fix the grille to the safety cable.
- Fix the grille with the 4 screws.
WARNING!! Tighten the screws with a
maximum tightening torque of 0.45 Nm.
You are advised to use a screwdriver.
Do not use non-calibrated electric
screwdrivers. The tray will be irreparably
damaged if tightened too far.
- Remove the suction grille by means of
the two ¼ turn bolts.
- Assemble the air filter.
- Reassemble the suction grille by means
of the two ¼ turn bolts.
- adjust the position of the unit from the
support bracket by means of the nuts so
that the unit is level and the frame rests
slightly on the suspended ceiling
- Start the fan coil unit and carry out a
function test, the functions are described
in the user manual.
ͻ/ÄÝã½½®Ä¦ÄÙó½½
If the unit is to be installed near a wall,
the corresponding delivery outlet can be
closed using the gasket supplied.
