13
English

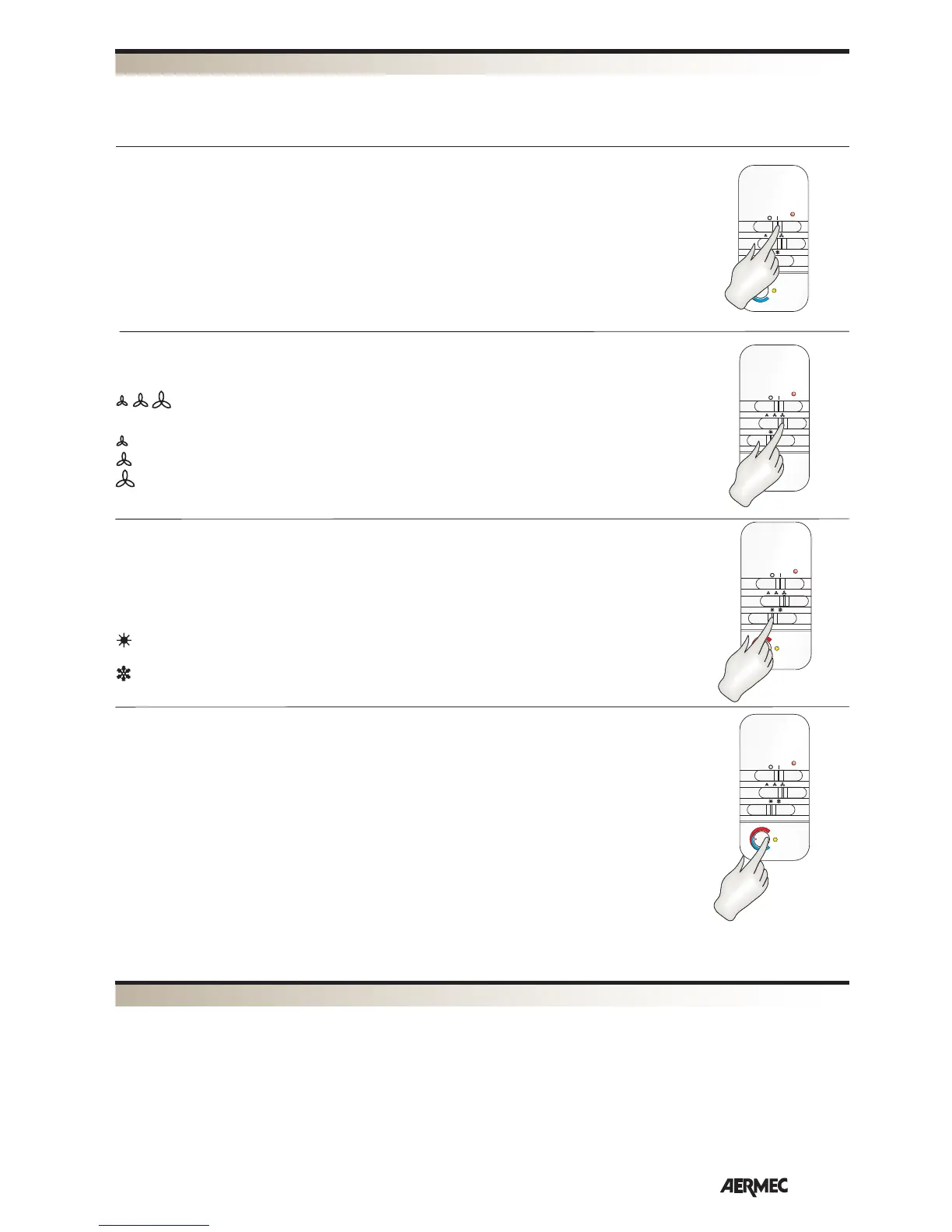

FCX ACB - USE
COMMANDS:
To reach the control panel of the fan coil:
Open the grille to the right of the fan coil to get access to the control panel.
Turning the unit on/off
O The fan coil is off.
I The fan coil is on.
Selecting the Ventilation Speed
The fan coil operates using the fan respectively
at these speeds:
minimum
medium
maximum
Season change
Functioning mode selector (D)
Used to select the functioning mode, Heat or Cool.
Heating
Cooling
Temperature Selection
Temperature Knob (F)
Used to set the desired temperature ranging from 10°C to 30°C.
Turn the knob towards the blue area for cooling mode.
Turn the knob towards the red area for heating mode.
Pilot lights in the control panel:
RED (A)
- when on, it indicates that the fan coil is on too (adequately
connected to the line),
- when off, it indicates that the fan coil is off too.
YELLOW (E)
indicates the functioning mode:
- when on, it indicates that the thermostat can reach the set
temperature: the water valve is open and the fan is on);
- when off, it indicates that the thermostat has reached the set
temperature: the water valve is closed and the fan is off);
BACKLIT DISPLAY FOR USER (FCX ACB IN STANDARD CONFIGURATION)
