AERMEC FCZ-U - HYDRAULIC CONNECTIONS DETAILS

EN FR
19IFCZASUALJ 2107 - 4033740_02
Standard coil and larger coil
Batteries standards et surdimensionnées
Heating only bv coil
Batterie bv seulement chaud

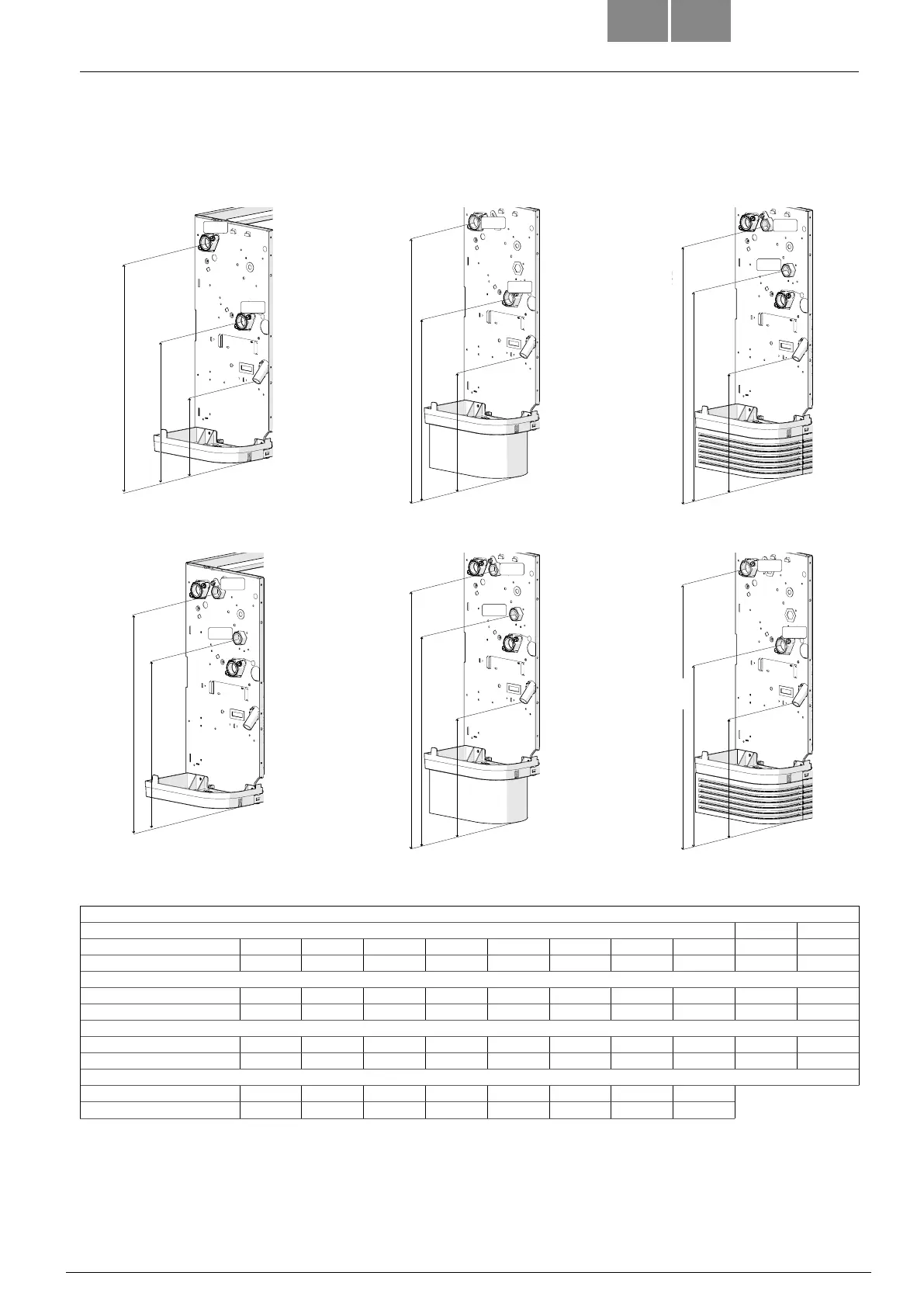

DIMENSIONS AND POSITION OF HYDRAULIC CONNECTIONS • POSITION DES RACCORDS HYDRAULIQUES
Hydraulic Connections (Female) - Raccords d’eau (Femelle)
Standard Main Coil - Batterie Principale Standard
FCZ 100 200 300 400 500 600 700 800 900 1000
Ø 1/2” 1/2” 3/4” 3/4” 3/4” 3/4” 3/4” 3/4” 3/4” 3/4”
Larger Main Coil - Batterie Principale Ampliée
FCZ 150 250 350 450 550 650 750 850 950 1050
Ø 1/2” 1/2” 3/4” 3/4” 3/4” 3/4” 3/4” 3/4” 3/4” 3/4”
Main Coil + Standard Heat Only Coil - Batterie Principale + Batterie Seulement Chaud Standard
FCZ 101 201 301 401 501 601 701 801 901 1001
Ø 1/2” - 1/2” 1/2” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2”
Main Coil + Larger Heat Only Coil - Batterie Principale + Batterie Seulement Chaud Ampliée
FCZ 102 202 302 402 502 602 702 802
Ø 1/2” - 1/2” 1/2” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2” 3/4” - 1/2”
FCZ 101 ÷ 1001 / 102 ÷ 802
OUT
IN
OUT
FCZ 100 ÷ 1000 / 150 ÷ 950
IN
OUT
FCZ 101 ÷ 801 / 102 ÷ 802
IN
OUT
IN
FCZ 101 ÷ 1001 / 102 ÷ 802
OUT
IN
FCZ 100 ÷ 1000 / 150 ÷ 950
FCZ 100 ÷ 800 / 150 ÷ 850
OUT
IN
16.02
10.35
6.14
16.18 12.83
19.72
19,17 19,17
19,56
13,89
13,50
9,29
9,68
13,50
9,29
16,37
9,68
