INSTALLATION OF THE INDOOR UNIT
To install the unit you must follow the following steps
Open the front panel to access the screws holding the
front grille;
Remove the 4 screws holding the front grille;
Remove the front grille;
Remove the 3 screws and remove the upper edge
Remove the 2 screws for each of the side edges and
remove them
Remove the upper edge and subsequently the side edges;
Now the unit is ready to be attached to the brackets and
the wall with 4 screws, as shown in the following para-
graph; after installing the unit you will need to reassemble
the parts in a manner contrary retracing transactions for
disassembly.

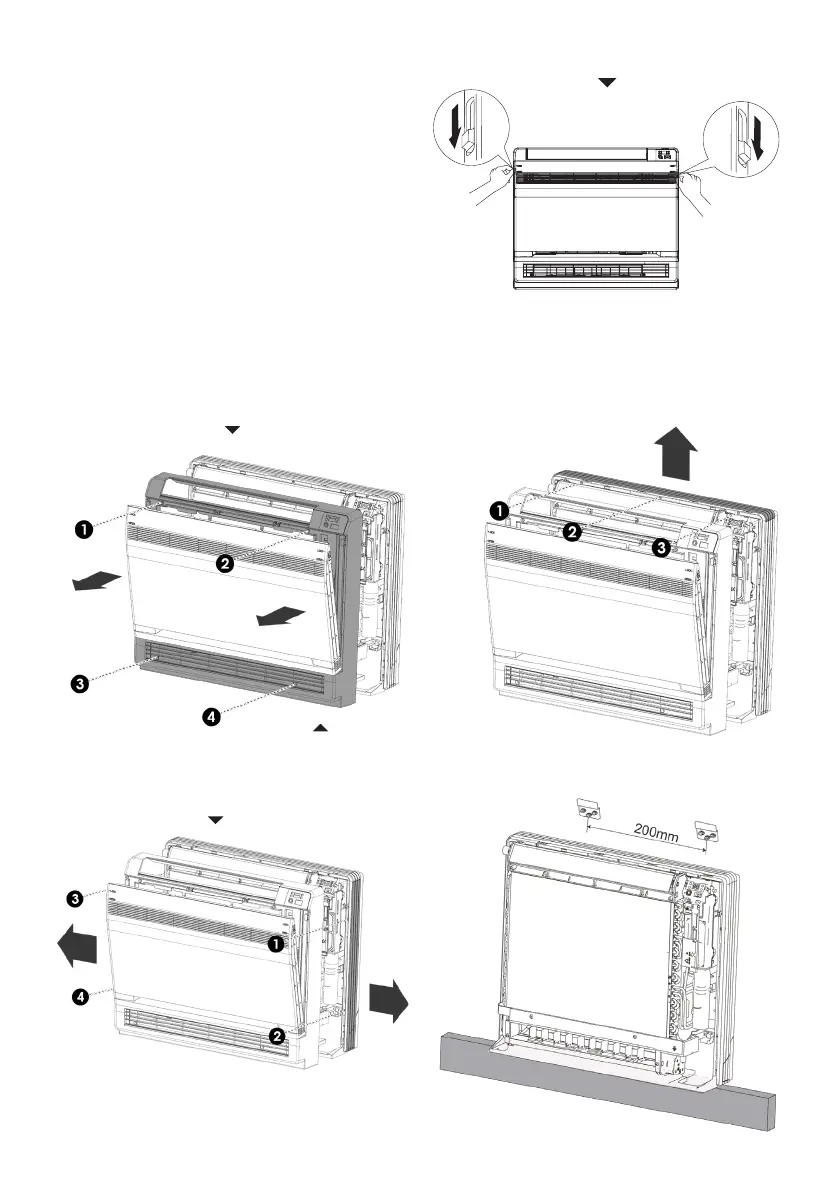

(1) Open the front panel
(2) Remove the 4 screws
(3) Remove the front grille
(4) Remove
upper edge
(5) Remove the side edges
