AERMEC URX CF User Manual

Heat recovery units with refrigeration circuit - URX_CF -
12
Selection and installation manual
GB
Fresh air temperature variations on the
change of the external air temperature

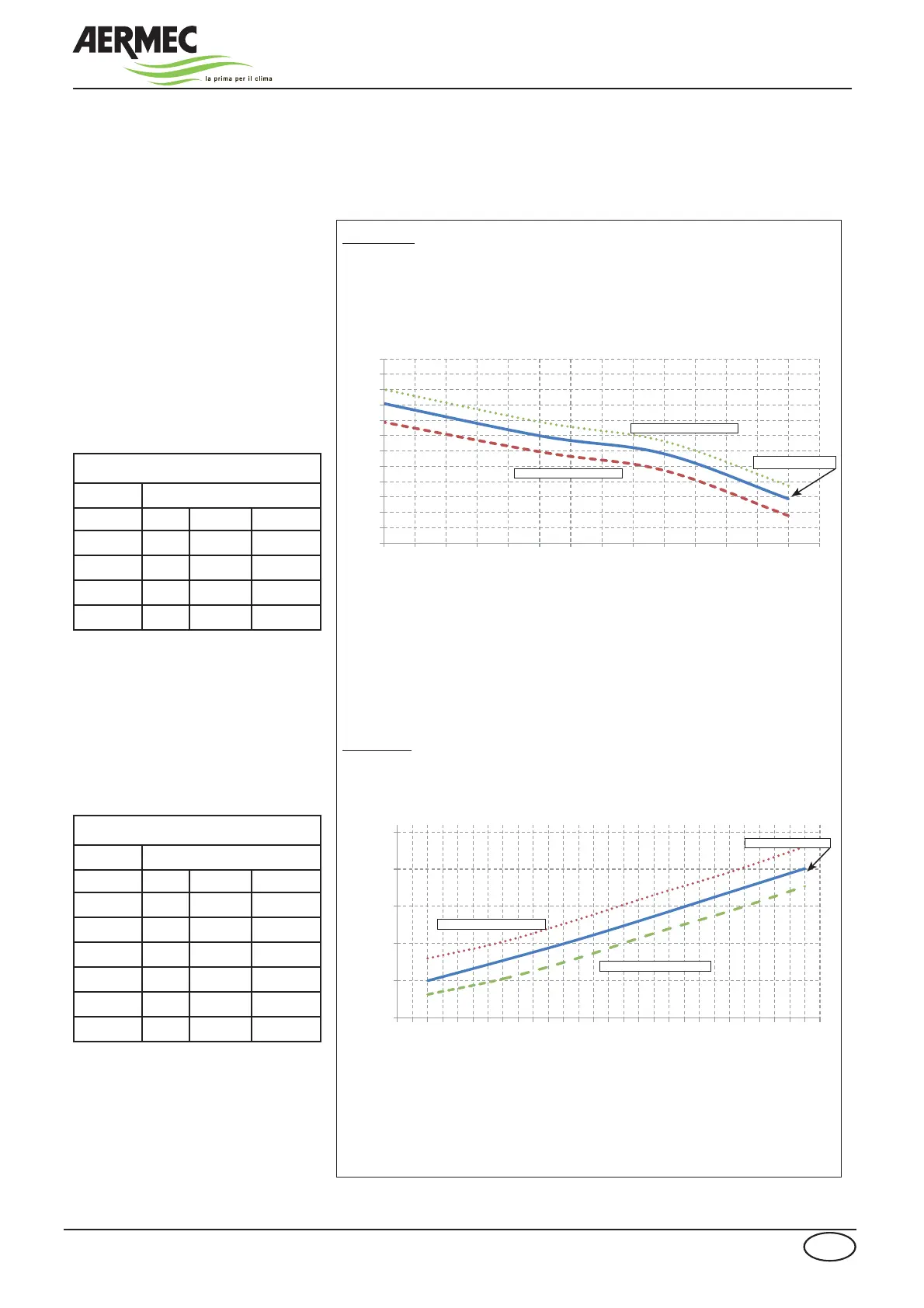

The following charts allow to determine
the variation of the temperature within
the room on the variation of the external
conditions. The variability of the air fl ow
is that allowed to guarantee that the
refrigerating circuit operates correctly.
N.B.
The following diagrams are typical for
all sizes, but without accessories
Summer use
X= T ext Y = media ΔT
Q nom Q nom-15% Q nom+15%
26 -4,20 -5,21 -3,26
30 -1,18 -2,26 -0,36
34 0,00 -1,05 0,90
40 2,53 1,26 3,44
Winter use
X= T ext Y = media ΔT
Q nom Q nom-15% Q nom+15%
-5 0,00 3,02 -1,84
0 2,73 5,25 0,26
5 5,56 8,27 3,07
10 8,67 11,53 6,38
15 11,89 14,58 9,36
20 15,09 18,03 12,70
-7
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
REGIME ESTIVO
Q
nom.
Q
nom-15%
Q
nom+15%
Variation of the inlet air temperature (°C)
Summer use
Winter use
Variation of the inlet air temperature (°C)
External air temperature (°C)
At the nominal air flow
At the nominal air flow + 15 %
At the nominal air flow - 15 %
-5
0
5
10
15
20
-7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
REGIME INVERNALE
Qnom. Qnom-15% Qnom+15%
At the nominal flow rate + 15 %
At the nominal flow rate - 15%
At the nominal flow rate
Conditions: exhaust air 26°, 50% R.H.
Conditions: exhaust air 26°, 50% R.H.
External air temperature (°C)
