AERMEC URX CF - Accessories Dimensions; SUF - Silencer baffle modules

Heat recovery units with refrigeration circuit - URX_CF -
18
Selection and installation manual
GB

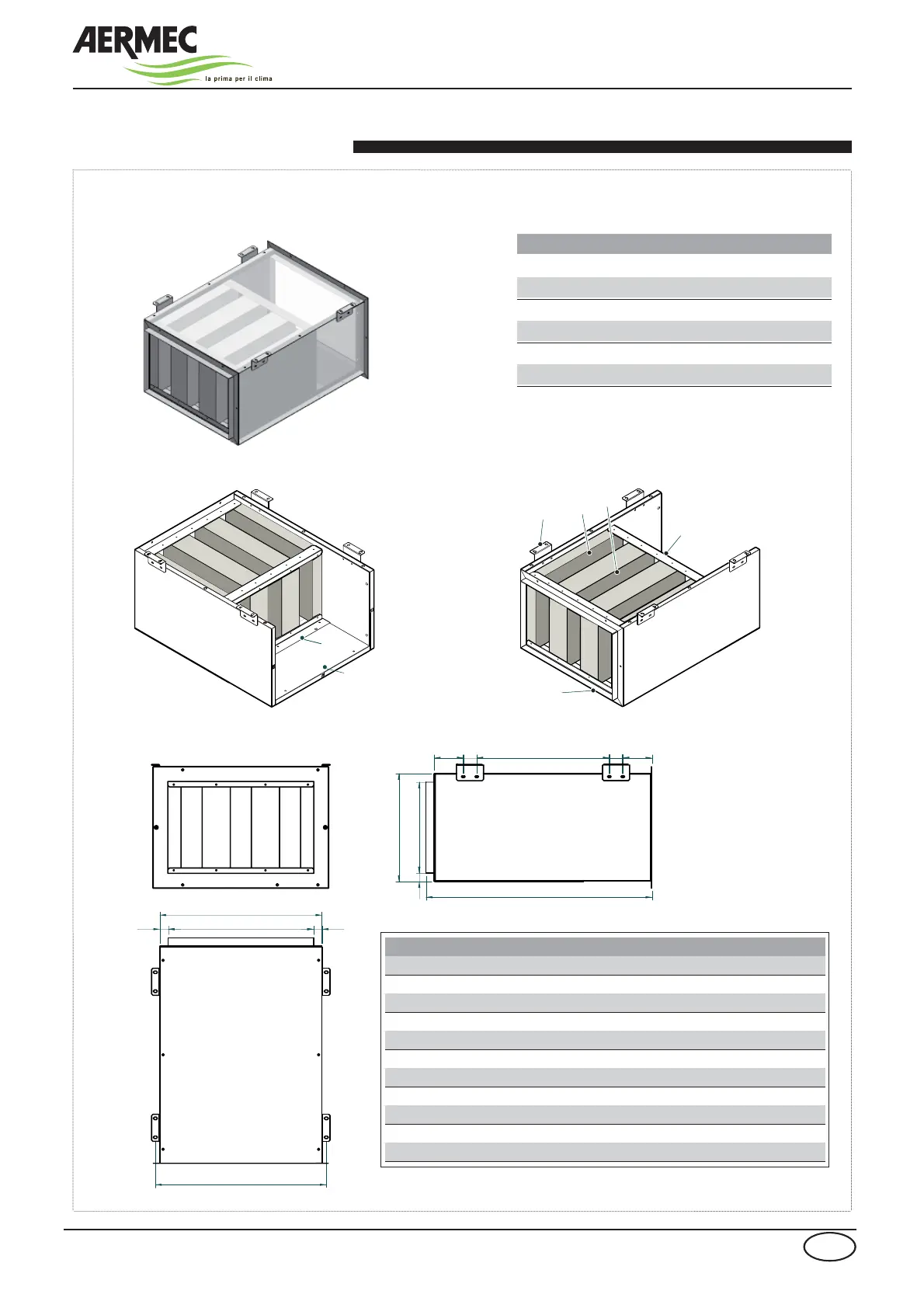

Accessories Dimensions
SUF - Silencer baffle modules
Key
1. Inspection panel set
2. Lower panel bdampering profile
3. Upper fixing bracket
4. Silencer
5. Baffles fixing bracket
6. Duct accessories connection flange


% & %
G D
C
,
!
M I H I M
B
Mod. [mm] URX_CF 07-10 URX_CF 15-21 URX33CF
A 600 600 600
B 835 835 835
C 400 500 550
D 30 30 30
E 31,5 31,5 31,5
F 537 537 537
G 337 437 487
H 490 490 490
I 50 50 50
L 632 632 632
M 108 108 108





