SCOPE OF THE VED FAN COIL UNITS
The fan coil is a terminal unit for the winter and summer conditioning of air in a space. The VED fan coil units are conceived for any
requirements in ducted installations.
The possibility of integration into the VMF system allows the control from each fan coil unit with accessories up to the management of the
VED inserted into a network of fan coil units and their accessories.
UNIT DESCRIPTION
AVAILABLE SIZES
The available VED series of fan coil units:
• Fan coil unit for vertical wall mounted or
horizontal ceiling mounted installation
• Versions with 3 row main coil
• Versions with 4 row main coil
• The versions with 3 rows can be
combined with the heating coil
accessory for use in 4 pipe systems
• Coils with low pressure drop
• Site reversible connections
• Wide range of accessories to connect the
fan coil unit to any type of air ducting
• Discharge flange provided with the unit
• Wide range of controls and accessories
• Wide range of control panel accessories
• Prepared for installation into the VMF
system
• Wide possibility of different available
static pressures
• Versions with 6 speed fan-motor from
which the preferred 3 are selected
• Versions with 7 speed fan-motor from
which the preferred 3 are selected
• Centrifugal fan designed for low noise
levels
• G3 class filter
• Air intake filter easily extracted for
periodic cleaning
• 3 way 4 port valve accessory
• 2 way valve accessory for variable flow
systems
• Class 1 internal insulation
• Full compliance with safety standards
• Easy of installation and maintenance

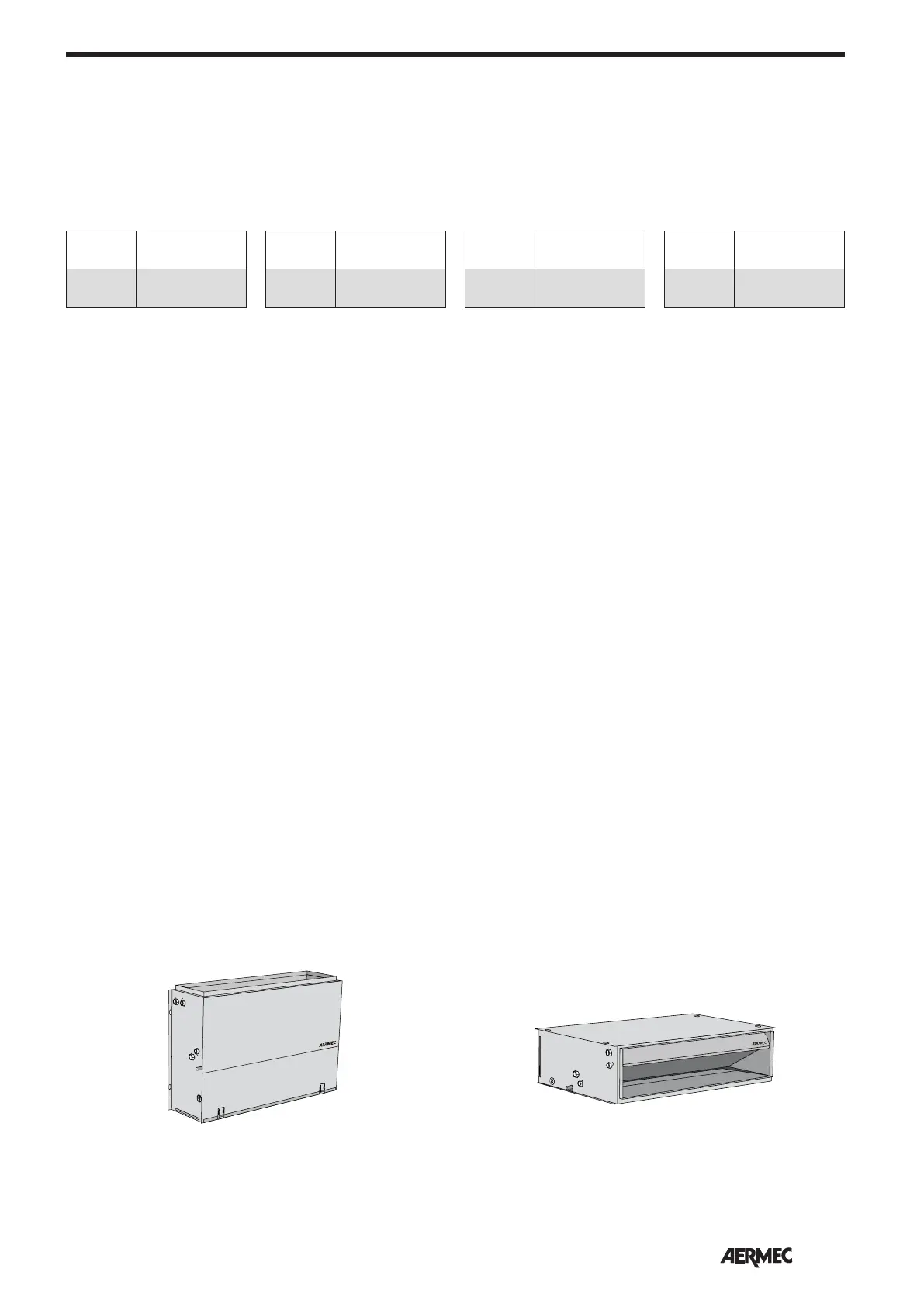

VED fan coil unit main characteristics
Vertical installation Horizontal installation
VED 030
3 Row
Coil
VED 040
4 Row
Coil
VED 130
3 Row
Coil
VED 140
4 Row
Coi
VED 230
3 Row
Coil
VED 240
4 Row
Coi
VED 330
3 Row
Coil
VED 340
4 Row
Coi
* The VED units of sizes 0 - 1 - 2 - 3 can be used in 4 pipe installations if they are supplied with the heating coil accessory.
By suitably combining the numerous options available it is possible to configure each model in such a way as to meet the most par-
ticular of system requirements.
Configuration fields
1 2 3 4 5
❘ ❘ ❘
Code
VED
Size
0
1
2
3
Main coil number of rows
3
4
