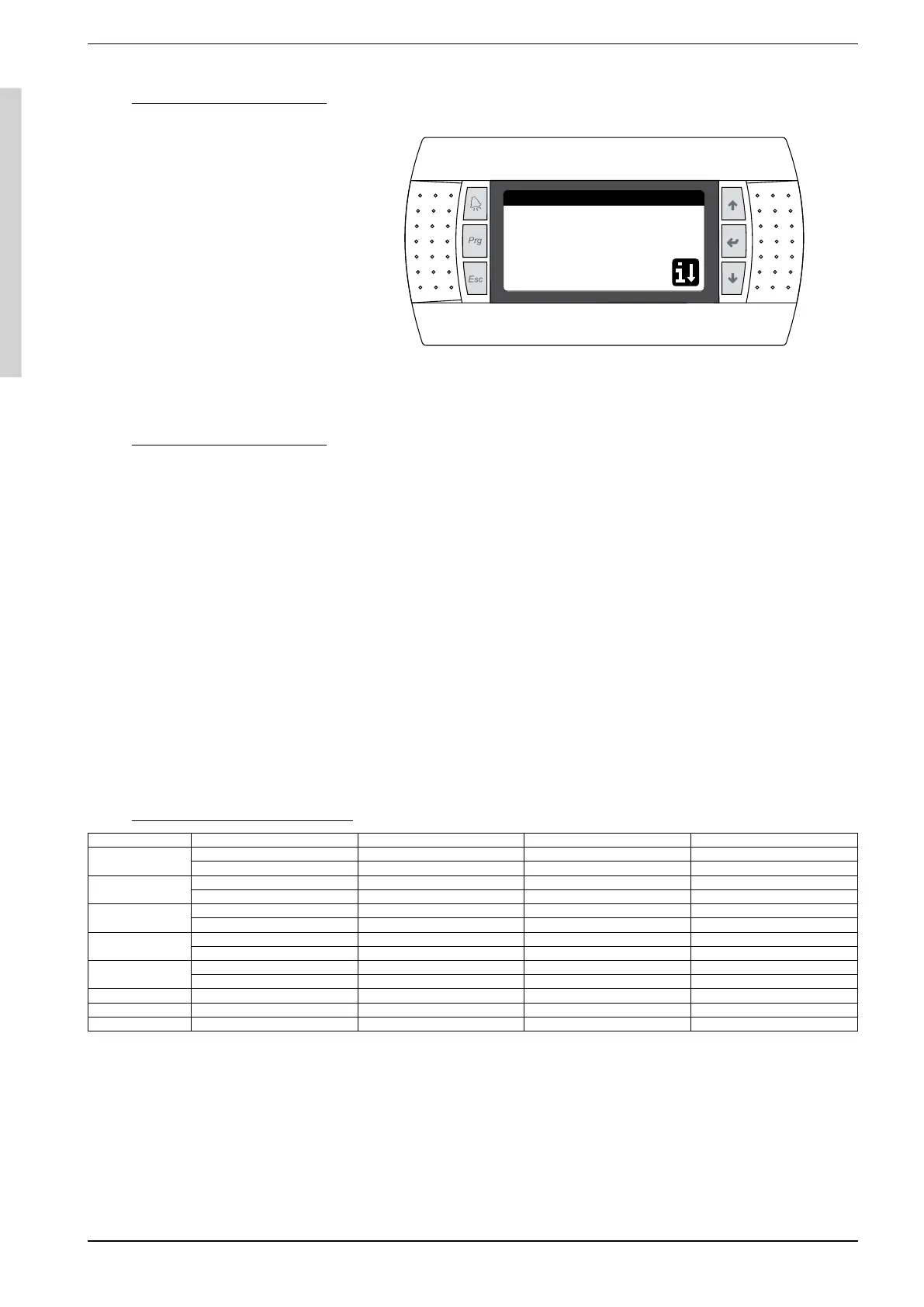

On-Off/ Mode
Heat Pump Unit
SUMMER + DHW
ON
WRL / WRLH ALIMENTATION Max Courrent A Recommended Section Line Main switch
180
400V-3N-50Hz 42 10 mm² 45A
230V-3-50Hz 73 25 mm² 80A
200
400V-3N-50Hz 52 10 mm² 65A
230V-3-50Hz 90 25 mm² 100A
300
400V-3N-50Hz 56 16 mm² 65A
230V-3-50Hz 97 35mm² 100A
400
400V-3N-50Hz 61 16mm² 65A
230V-3-50Hz 106 35mm² 125A
500
400V-3N-50Hz 69 25mm² 80A
230V-3-50Hz 120 35mm² 125A
550 400V-3N-50Hz 91 25mm² 100A
600 400V-3N-50Hz 104 35mm² 125A
650 400V-3N-50Hz 115 35mm² 125A
7.3. SEASON CHANGEOVER
- For every season change, check that
the functioning limits lie within the
limits.
- Check that the compressor input
current is lower than the maximum
indicated in the technical data
table.
- Check, that in models with three-
phase power supply, that the
compressor noise level is not
abnormal. If this is the case, invert a
phase.
- Make sure that the voltage value
lies within the pre-fixed limits and
that unbalance between the three
phases (three-phase power supply) is
not above 3%.
7.3.1. Season changeover from panel
on machine
How to activate season changeover:
Under the On- Off branch it is possible
change the functioning mode of the
machine. In the second selection
line (can ONLY be edited if OFF was
selected in the first line) it is possible to
select the seasonal state of the heat
pump
(SUMMER, WINTER, DHW ONLY). Clearly
according to the machine configured
and according to the accessories
installed.
NOTE:
ALWAYS REFER TO THE PROCEDURE
ILLUSTRATED IN THE USE MANUAL.
7.4. ELECTRICAL DATA
