3-3-3. FUSE REPLACEMENT
DESCRIPTION
This procedure is used to replace the internal fuse in the 3500 / 3500A.
CAUTION
FOR CONTINUOUS PROTECTION AGAINST FIRE, REPLACE ONLY WITH
FUSES OF THE SPECIFIED VOLTAGE AND CURRENT RATINGS. (5 A, 32 Vdc,
Type F - Mini Blade Fuse)
REMOVE

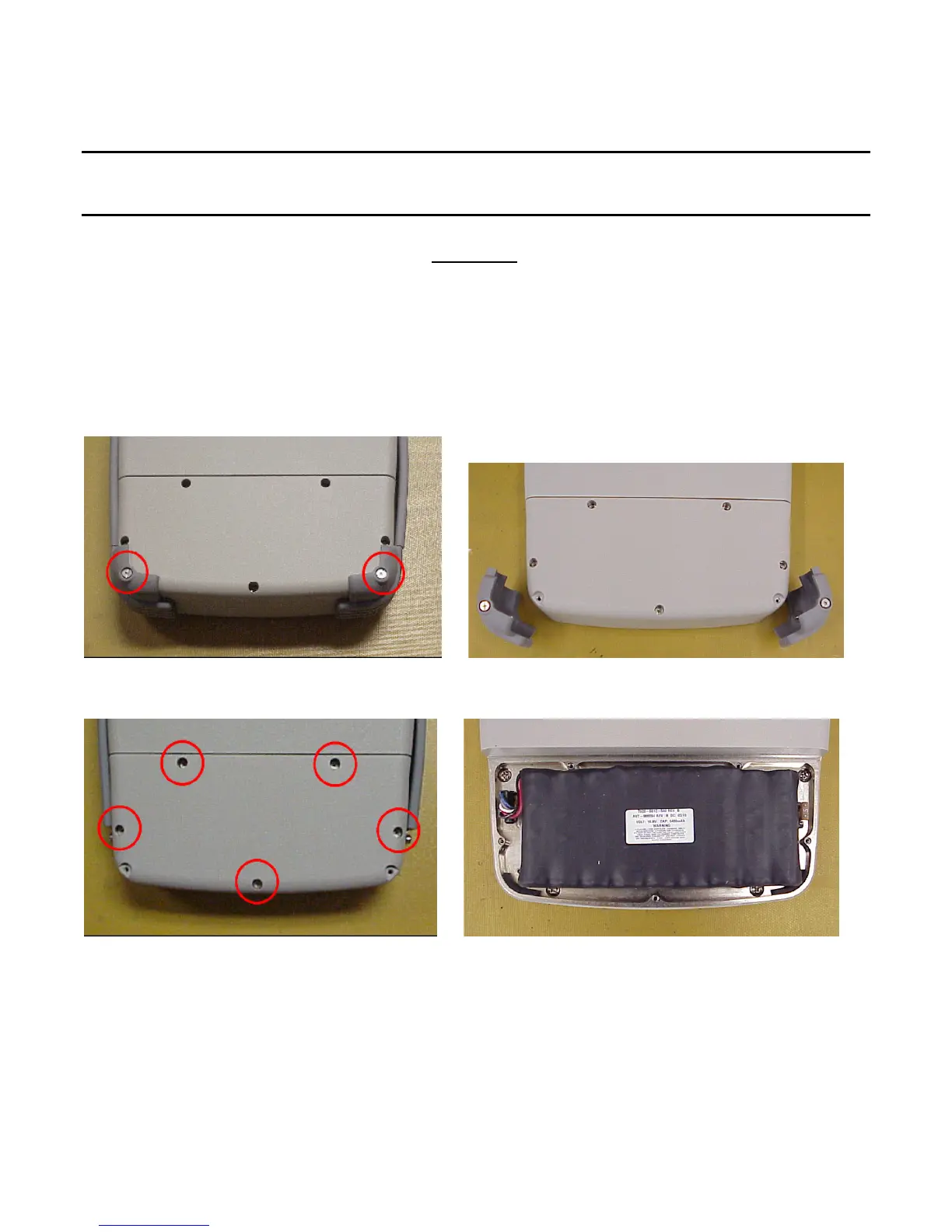

1. Fully loosen the captive screws (on each side of the bumper) in the two lower bumpers and
remove the bumpers from the 3500 / 3500A.
2. Fully loosen five captive screws holding the Battery Cover to the 3500 / 3500A and remove
the Battery Cover from the 3500 / 3500A.
